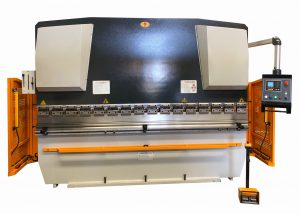

The Capital TW125/3200 press brake includes an Estun 2 x axis E21+ NC programmable controller, ball screw back gauge and Pilz lght safety curtains (both front and rear) as standard.

Features

– High bending accuracy consistently achieved by a simple mechanical system which is electronically controlled by an Estun NC programmable controller therefore providing accurate repeatability and ease of use.
– Segmented heavy duty 86° offset top tool, segmented for return bend clearance.
– Full length multi vee bottom block.
– Power operated ball screw back gauge with quality support fingers also with vertical adjustment
– Front sheet supports a wide range of material sizes to be aligned and supported at the correct required height.
– Conveniently mounted control box on pendant for quick swivel and adjustments.
– Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
– Modern designed pendant foot pedal operation with stainless braided cable.
– Variable hydraulic pressure control valving fitted as standard
– Tee slotted front beam
– Safety and material selection bending charts mounted on side of machine
– Supplied pre commissioned prior to delivery
– CE compliant

Specifications

Controller: Estun E21 NC Programmable Controller
Bending Capacity: 125 Ton
Bending Length: 3200mm
Distance Between Frames: 2650mm
Side Throat Depth: 320mm
Ram Stroke: 120mm
Open Height: 415mm
Back Gauge Travel: 600mm
Motor Power: 7.5Kw / 415V
Footprint: 3280mm x 1420mm x 2640mm
Weight: 9000Kg
