Product Catalogue | New & Used Machine Tools | Drills » Capital TW5035 Pedestal Drill

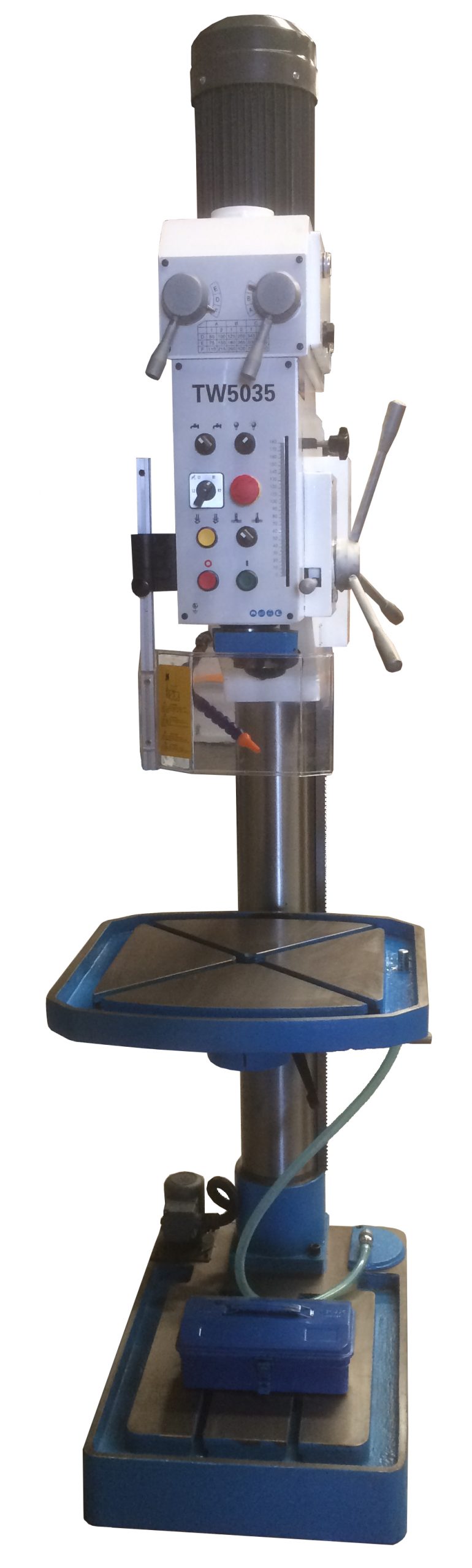

Capital TW5035 Pedestal Drill

» enquire now

$5050.00 ex GST

$5555.00 inc GST

FOT ex Bibra Lake, WA.

Competitive freight prices can be arranged. Please contact us for details.

The Capital TW5035 Pedestal Drill is a real winner with excellent features at a very competitive price. With a maximum drilling capacity of 35mm and coolant system and work light as standard.

Designed for drilling, counterboring, reaming, tapping, spotfacing etc.  The TW5035 is widely used in machine works and repair shops for single piece or small lot production.

Features:

– Power feed
– Halogen Light

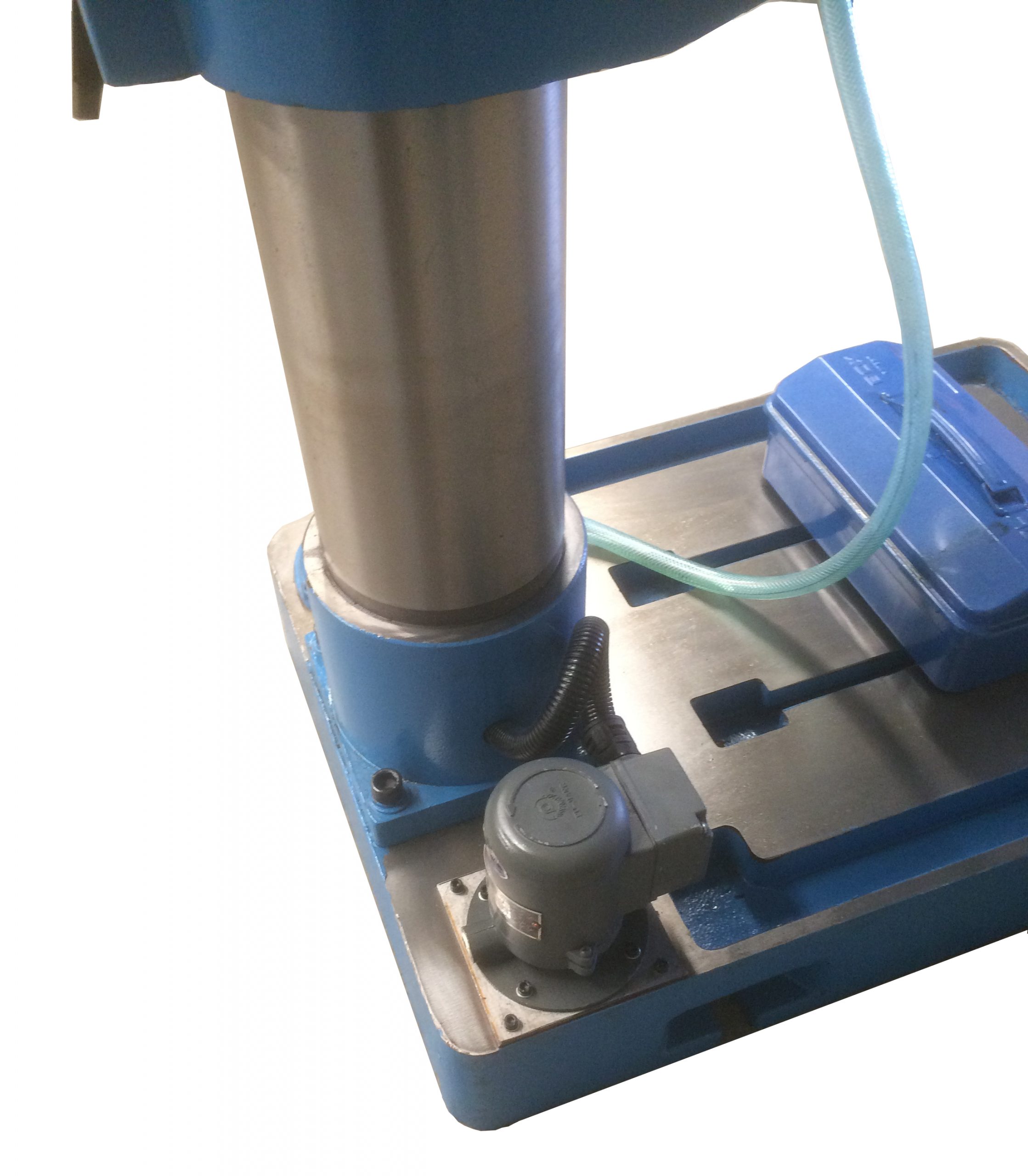

– Coolant System
– Tapping feature

Specifications:

Maximum Drilling Diameter: 35mm
Taper Of Spindle Hole: MT4
Range Of Spindle Speed: 50 – 1450rpm
Working Table Dimensions: 560 x 560mm
Power Of Main Motor: 1.5kW
Dimensions (LxWxH): 730 x 560 x 2220mm
Weight: 460kg

  • Enquiry Form

  • Hidden

« back to product listings page
