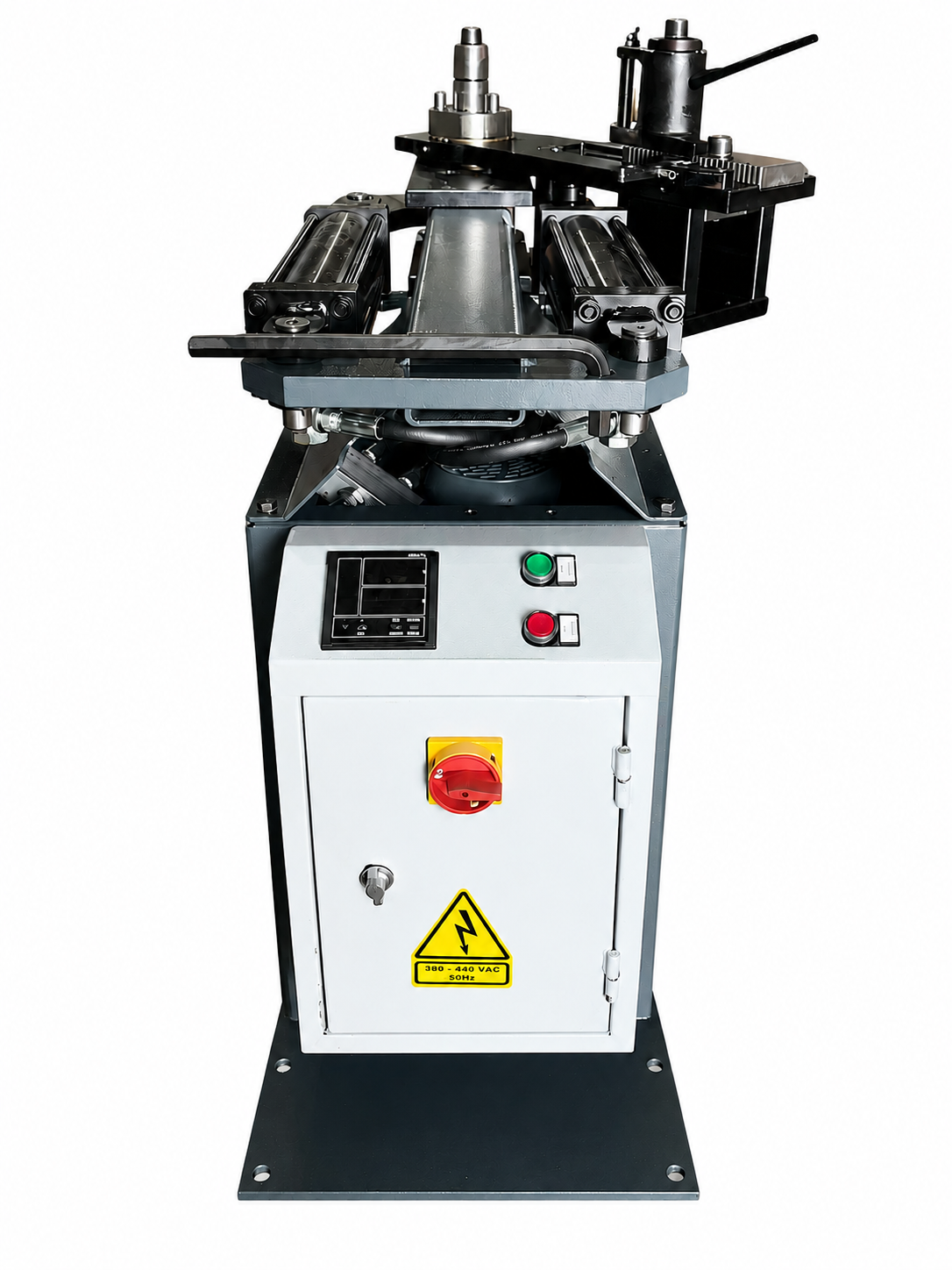

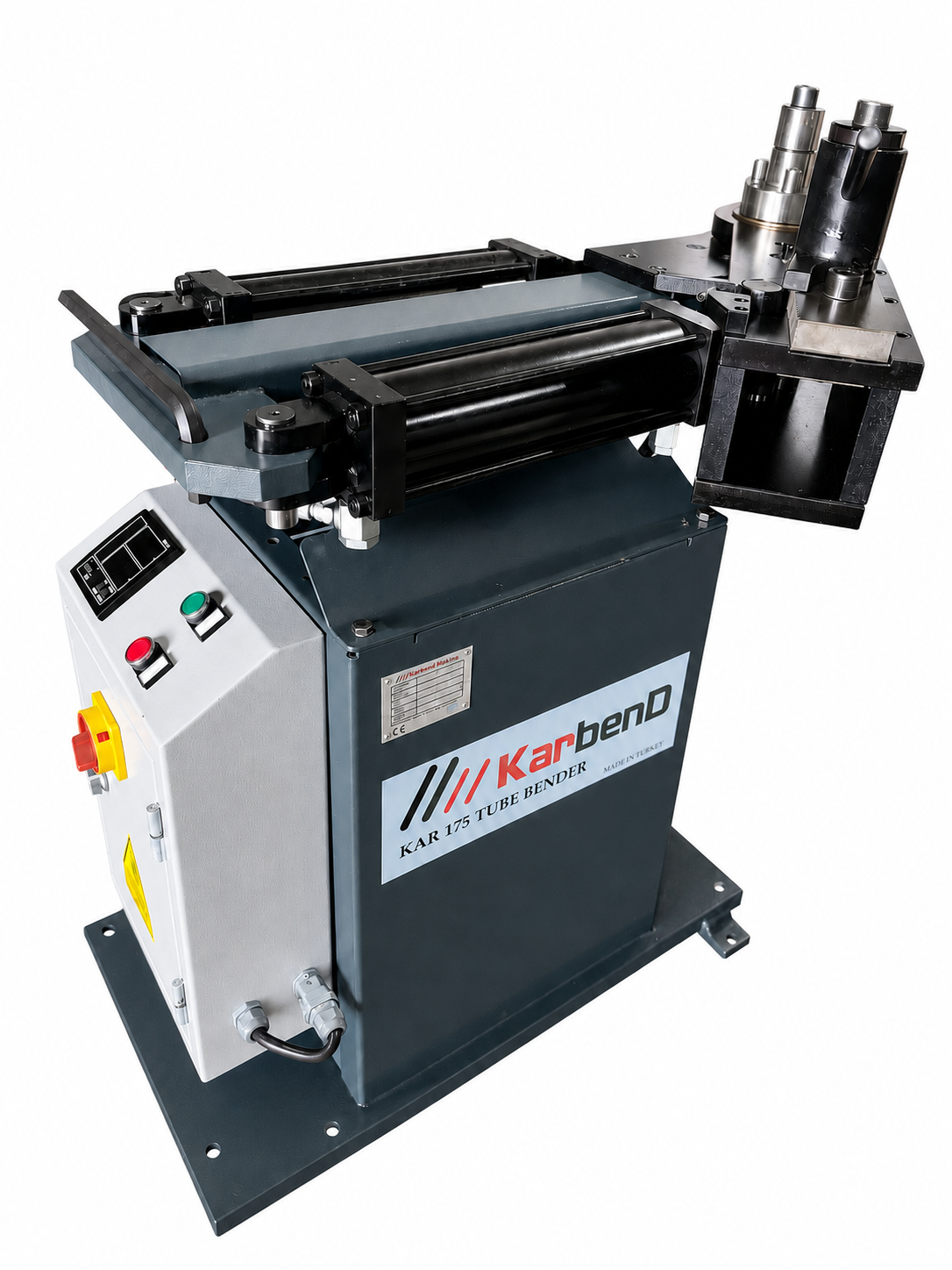

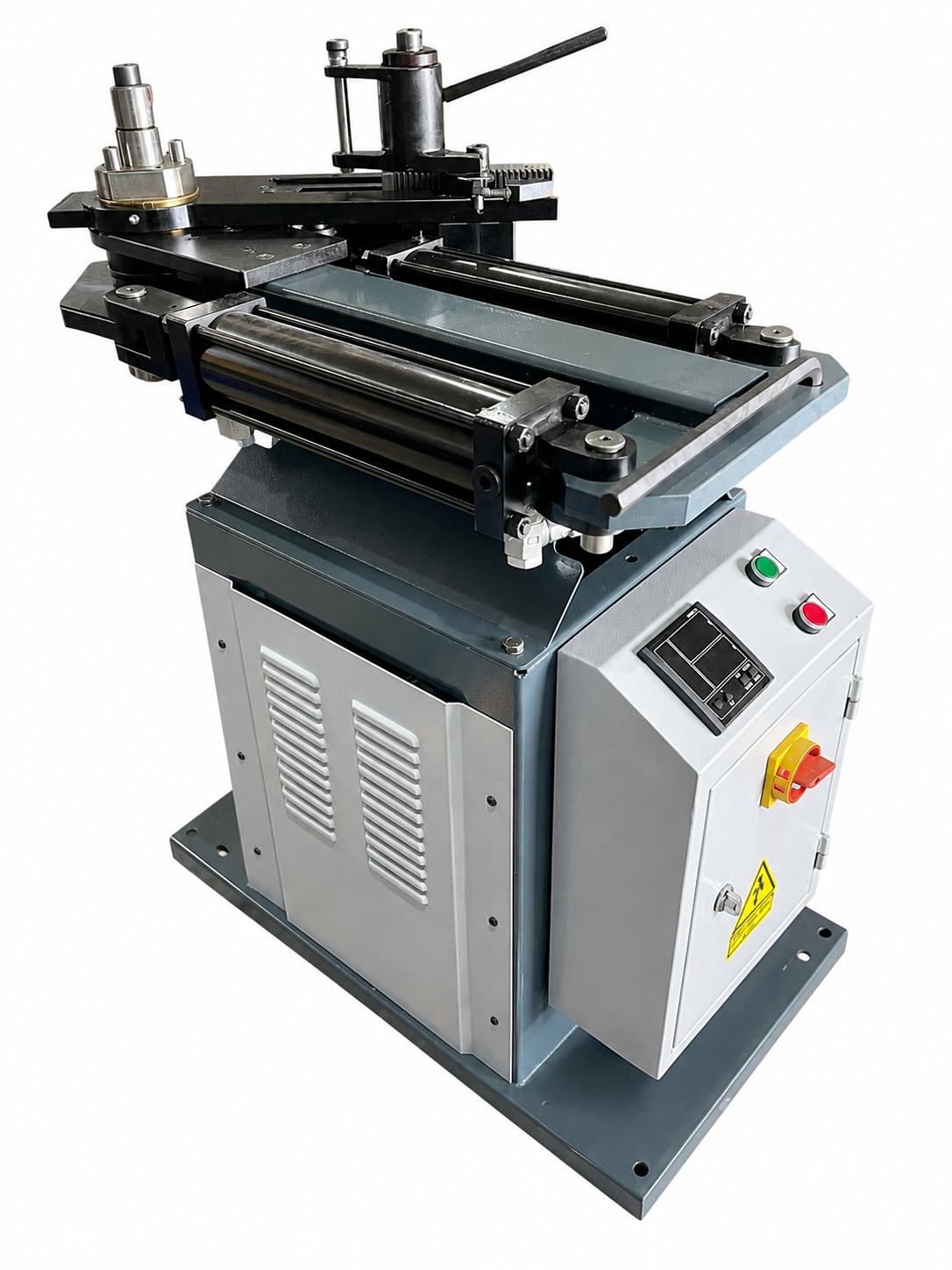

The RDB175E European Made Pipe Bender is a high-quality machine engineered for durability, precision, and ease of use. Designed to handle a wide range of materials, it delivers reliable performance in any fabrication setting.
Features:
– Versatile Capacity: Capable of bending 2” Schedule 40 pipe (60mm × 4mm) and up to 2.5” tubing with a wall thickness of 0.120” (62mm × 3mm) in mild steel.
– Efficient Operation: Simplistic design ensures minimal effort during operation, making it user-friendly and efficient.
– High-Quality Build: Constructed with premium components for long-term reliability and precision performance.
– Compatible with Baileigh Industrial-style rotary draw tube benders
– Bespoke Tools Available
– Supports 1/2” to 2” NB pipe and metric tubes up to 60mm
– Suitable for use with mild steel, stainless steel, aluminium, and chromoly tubing
– Ideal for fabrication shops, race car builders, and structural steel work
– Tooling available for Various Centre Line Radii(CLR)
Specifications:
Minimum CLR: 13mm
Minimum OD: 6mm
Maximum Speed to 180°: 12sec
Mild Steel Solid Rod: 32mm
Mild Steel Pipe Schedule 40: 60mm x 4mm
Mild Steel Round Tube Wall: 64mm x 3mm
Mild Steel Square Tube Wall: 50mm x 3mm
Stainless Steel Pipe Schedule 40: 48mm x 3mm
Stainless Steel Round Tube Wall: 60mm x 3mm
Chromoly Round Tube Wall: 50mm x 3mm
Aluminium Pipe Schedule 40: 60mm x 4mm
Aluminium Round Tube Wall: 64mm x 4mm
Maximum Centre Line Radius (CLR): 229mm
Power: 220V, 50Hz, 1-Phase
Shipping Weight: 286kg
Shipping Dimensions: 1118mm x 711mm x 1067mm
Tooling Information:
The machine is supplied without bending dies or tools.
Popular die sets such as 42.2mm OD and 48.3mm OD with various Centre Line Radii (CLR) are available separately.
Custom tools can also be manufactured upon request.
For tooling options, pricing, or bespoke die requirements, please contact us today.
