The Numatic NUC244NX is a compact cordless floor scrubber dryer designed for efficient cleaning of small and congested hard-floor areas. Featuring twin counter-rotating brushes, a 440mm scrubbing width and Numatic's NX300 lithium-ion battery system, it scrubs and dries floors in a single pass.

Ideal for commercial environments where larger scrubber dryers are difficult to manoeuvre.

BATTERY & CHARGER INCLUDED

KEY FEATURES:
• Cordless operation with 36V NX300 lithium-ion battery
• Twin 220mm counter-rotating brushes
• 440mm scrubbing width
• Scrubs and dries floors in a single pass
• Up to 60–80 minutes runtime
• Fast charging – 80% in approximately 60 minutes
• Adjustable water flow and ergonomic handle
• Compact design for confined areas
• Battery and charger included

SPECIFICATIONS:
Model: NUC244NX
Power Supply: 36V Lithium-Ion
Scrubbing Width: 440mm
Brush Speed: 140 RPM
Solution Tank: 2.2L
Recovery Tank: 3L
Runtime: 60–80 Minutes
Recharge Time: 60 Minutes (80%) / 120 Minutes (100%)
Cleaning Coverage: Up to 1,300m²/hour (theoretical)
Dimensions: 450 × 520 × 1200mm

SUPPLIED WITH:
• Numatic NUC244NX scrubber dryer
• 1 × NX300 lithium-ion battery
• NX300 fast charging dock with Australian plug
• 2 × 220mm scrubbing brushes
• Squeegee assembly

IDEAL FOR:
Retail stores, cafés, restaurants, commercial kitchens, schools, offices, healthcare facilities, hotels and professional cleaning contractors.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, replacement brushes, pads, batteries, accessories and spare parts.

The Numatic TTB3045NX is a professional cordless walk-behind floor scrubber dryer designed for efficient cleaning of commercial and industrial hard floors. Featuring a 450mm scrubbing width, generous 30 litre solution and recovery tanks, and Numatic's NX300 lithium-ion battery system, it delivers excellent cleaning performance without the restriction of power cables.

With up to 70 minutes runtime and fast battery charging, the TTB3045NX is ideal for larger commercial floor areas.

2 BATTERIES & CHARGING DOCK INCLUDED

KEY FEATURES:
• Cordless operation with 36V NX300 lithium-ion batteries
• 450mm scrubbing width
• 30L solution and recovery tanks
• Up to 70 minutes runtime
• Fast charging – 80% in approximately 60 minutes
• 300W brush motor and 210W vacuum motor
• 100 RPM brush speed
• Pivoting squeegee for effective water recovery
• Adjustable brush pressure
• Quick-change battery system
• Up to 1,215m²/hour cleaning coverage
• Compact and easy-to-manoeuvre design
• 2 batteries and charging dock included
• 3 year NX300 battery warranty – conditions apply

SPECIFICATIONS:
Model: Numatic TTB3045NX
Power Supply: 36V Lithium-Ion
Brush Width: 450mm
Pad Width: 400mm
Brush Speed: 100 RPM
Squeegee Width: 650mm
Solution Tank: 30L
Recovery Tank: 30L
Runtime: Up to 70 Minutes
Recharge Time: 60 Minutes (80%) / 120 Minutes (100%)
Cleaning Coverage: Up to 1,215m²/hour
Dimensions: 890 × 470 × 1100mm
Net Weight: Approx. 79kg

SUPPLIED WITH:
• Numatic TTB3045NX floor scrubber dryer
• 2 × NX300 36V lithium-ion batteries
• NX300 battery charging dock
• 450mm Polyscrub cleaning brush
• Pivoting squeegee assembly

IDEAL FOR:
Warehouses, factories, workshops, retail stores, shopping centres, supermarkets, schools, healthcare facilities, hotels, showrooms and professional cleaning contractors.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, replacement brushes, floor pads, batteries, cleaning chemicals, accessories and spare parts.

A$17,050.00 (inc GST)

The RDB175E European Made Pipe Bender is a high-quality machine engineered for durability, precision, and ease of use. Designed to handle a wide range of materials, it delivers reliable performance in any fabrication setting.

Features:
– Versatile Capacity: Capable of bending 2” Schedule 40 pipe (60mm × 4mm) and up to 2.5” tubing with a wall thickness of 0.120” (62mm × 3mm) in mild steel.
– Efficient Operation: Simplistic design ensures minimal effort during operation, making it user-friendly and efficient.
– High-Quality Build: Constructed with premium components for long-term reliability and precision performance.
– Compatible with Baileigh Industrial-style rotary draw tube benders
– Bespoke Tools Available
– Supports 1/2” to 2” NB pipe and metric tubes up to 60mm
– Suitable for use with mild steel, stainless steel, aluminium, and chromoly tubing
– Ideal for fabrication shops, race car builders, and structural steel work
– Tooling available for Various Centre Line Radii(CLR)

Specifications:
Minimum CLR: 13mm
Minimum OD: 6mm
Maximum Speed to 180°: 12sec
Mild Steel Solid Rod: 32mm
Mild Steel Pipe Schedule 40: 60mm x 4mm
Mild Steel Round Tube Wall: 64mm x 3mm
Mild Steel Square Tube Wall: 50mm x 3mm
Stainless Steel Pipe Schedule 40: 48mm x 3mm
Stainless Steel Round Tube Wall: 60mm x 3mm
Chromoly Round Tube Wall: 50mm x 3mm
Aluminium Pipe Schedule 40: 60mm x 4mm
Aluminium Round Tube Wall: 64mm x 4mm
Maximum Centre Line Radius (CLR): 229mm
Power: 220V, 50Hz, 1-Phase
Shipping Weight: 286kg
Shipping Dimensions: 1118mm x 711mm x 1067mm

Tooling Information:
The machine is supplied without bending dies or tools.
Popular die sets such as 42.2mm OD and 48.3mm OD with various Centre Line Radii (CLR) are available separately.
Custom tools can also be manufactured upon request.
For tooling options, pricing, or bespoke die requirements, please contact us today.

A$5,445.00 (inc GST)

DH35G gear drilling machine with coolant and thread cutting device.

Features:
– Dirt and water resistant, easy to clean membrane keypad
– Electronics 24V DC
– Depth stop
– Electrical quill feed
– Low-maintenance, running in closed oil bath gearbox
– Threading attachment
– Machine light integrated in the drill head
– Main switch
– Large, height-adjustable protective screen with safety switch for the utmost protection of the user
– Large dimensioned, solid drill table, precisely worked with diagonal T-slots and all-round cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
– Coolant device integrated with coolant reservoir in the base plate
– Chip filter cleans the coolant from coarse components
– Extremely stable, thick-walled cast-iron column for high power consumption
– Solid base plate with parallel T-slots, precision surface finish

Specifications
Dimensions And Weights
Column diameter: 115 mm
Length approx.: 860 mm
Width/depth approx.: 474 mm
Height approx.: 2175 mm
Weight approx.: 350 kg

Drilling Performance
Drilling performance steel (S235JR): 35 mm
Continuous drilling performance steel (S235JR): 26 mm
Thread tapping steel (S235JR): M 24

Drilling Table
Workspace length: 400 mm
Workspace width: 420 mm
T-groove type: diagonal
T-groove size: 14 mm
T-groove number: 2
Load bearing capacity: 200 kg
Max. distance spindle – drilling table: 800 mm
Min. distance spindle – drilling table: 65 mm

Electrical Data
Drive motor output: 1,5 / 2,2 kW
Supply voltage: 400 V
Mains frequency: 50 Hz

Machine Base
Max. distance spindle – machine base: 1217 mm
Work area length: 420 mm

CAPITAL TW1440 PRECISION CENTRE LATHE – 360 × 1000MM CAPACITY

The Capital TW1440 is a versatile precision centre lathe designed for general engineering, maintenance, repair and workshop machining applications.

Offering a 360mm swing over the bed, 1000mm between centres and a generous 52mm spindle bore, the TW1440 provides excellent capacity in a compact, practical machine. Its broad spindle-speed range, powered longitudinal and cross feeds, quick-change toolpost and two-axis digital readout make it suitable for both one-off components and regular workshop production.

Powered by a 1.5kW, 240V single-phase motor, the TW1440 can be installed in workshops where three-phase power is unavailable.

The machine is suitable for facing, parallel turning, taper turning, drilling, boring, grooving, knurling and metric thread cutting across a range of ferrous and non-ferrous materials.

MAIN CAPACITIES

• Swing over bed: 360mm
• Swing over support: 223mm
• Swing through gap: 502mm
• Centre height: 179mm
• Distance between centres: 1000mm
• Bed width: 187mm
• Bed height: 290mm
• Maximum tool section: 16 × 16mm
• Cross-slide travel: 160mm
• Compound-slide travel: 95mm

HEADSTOCK

• Spindle bore: 52mm
• Spindle nose: D1-5 camlock
• Spindle-bore taper: MT6
• Spindle-speed range: 70–2000rpm

FEEDS AND THREADS

• Leadscrew diameter: 22mm
• Metric thread range: 0.4–7mm
• Longitudinal feed range: 0.052–1.392mm/rev
• Cross-feed range: 0.014–0.380mm/rev

TAILSTOCK

• Tailstock-sleeve diameter: 32mm
• Tailstock-sleeve taper: MT3

MOTOR AND POWER SUPPLY

• Main motor: 1.5kW
• Power supply: 240V, single phase, 50Hz

KEY FEATURES

• Generous 52mm spindle bore
• D1-5 camlock spindle nose
• Spindle-speed range from 70 to 2000rpm
• Powered longitudinal and cross feeds
• Metric thread-cutting capability
• Two-axis digital readout system
• Quick-change tool post
• Gap-bed design for larger-diameter components
• Foot-operated spindle brake
• Chuck safety guard
• Halogen work light
• Built-in cabinet base with storage drawers
• Fixed and travelling work supports
• Suitable for standard 240V workshop power

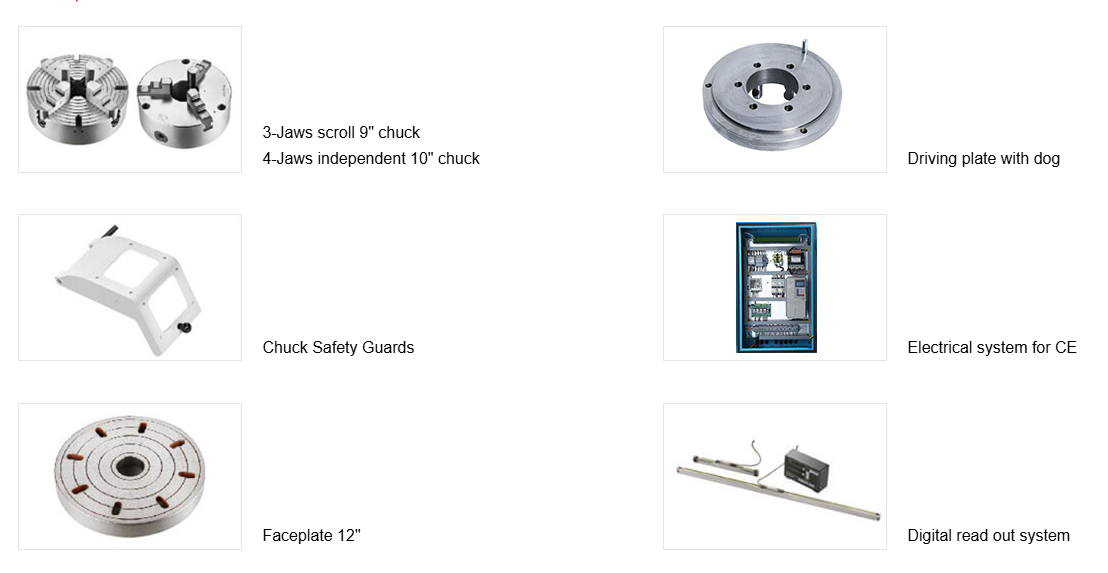

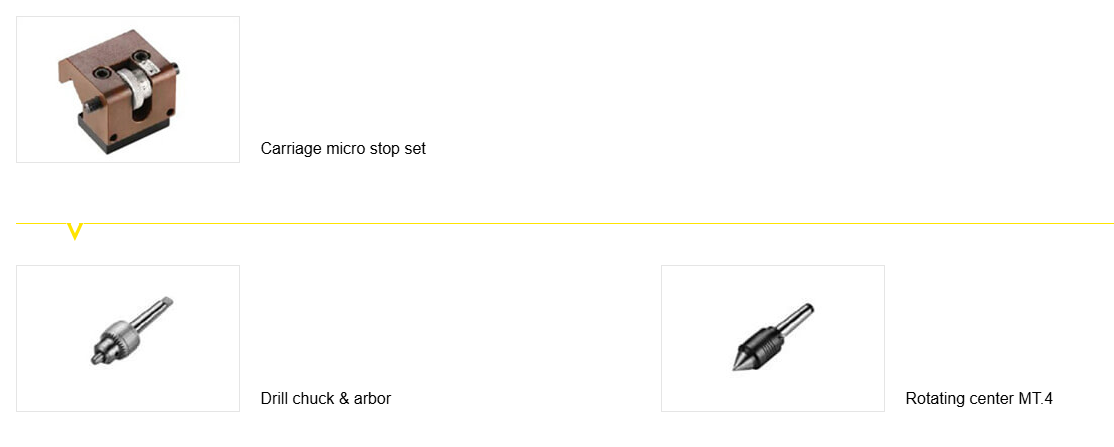

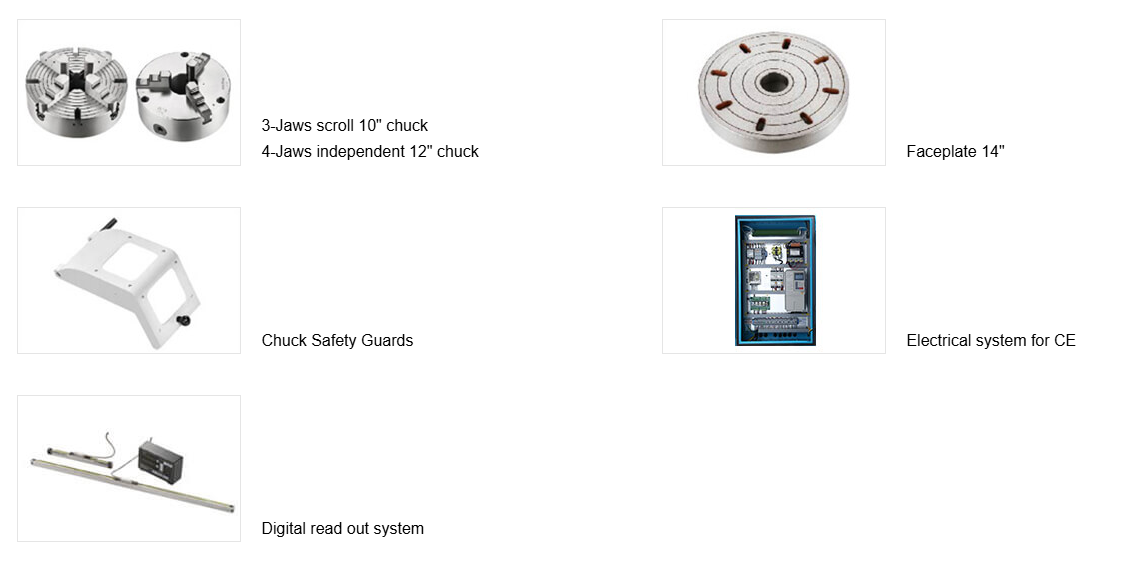

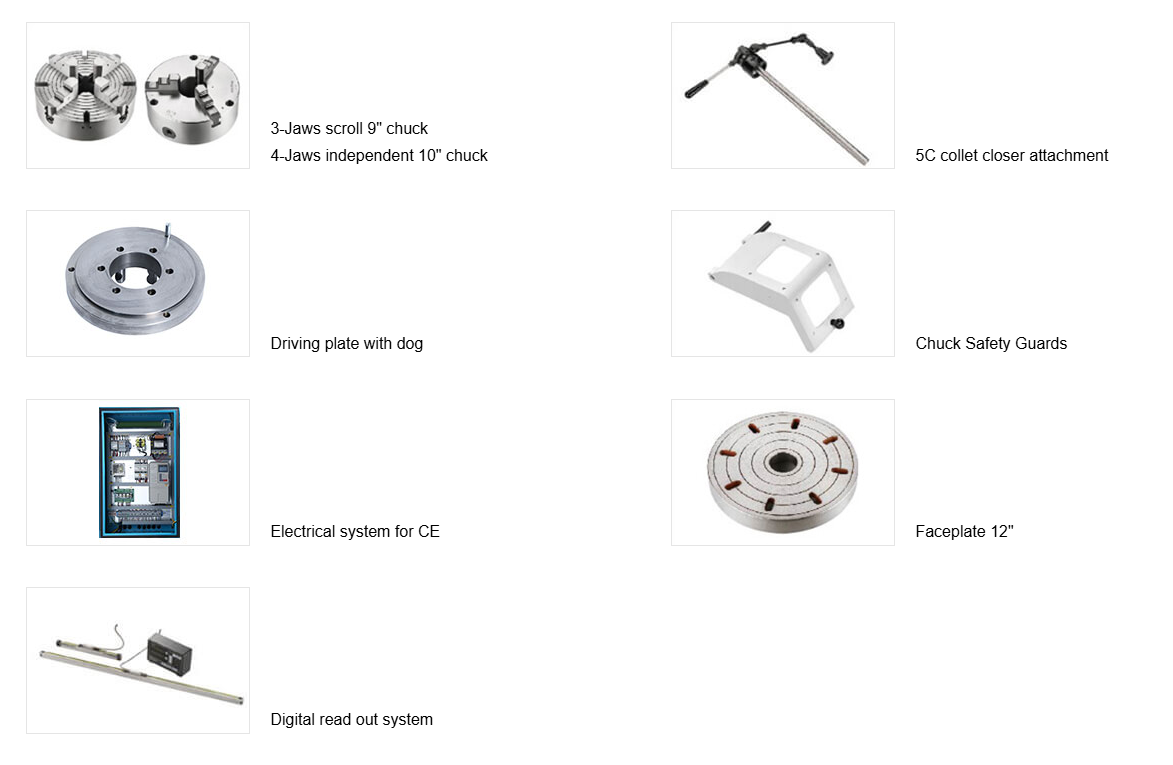

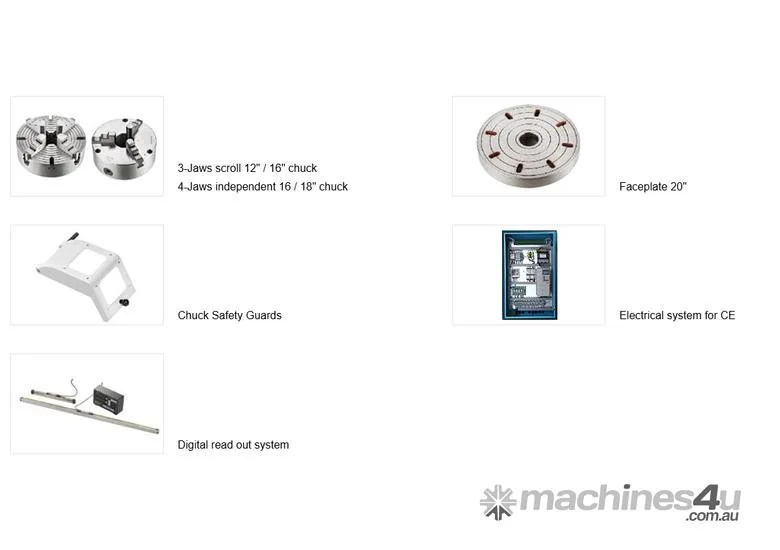

STANDARD ACCESSORIES

The Capital TW1440 is supplied with a comprehensive standard accessory package, including:

• Two-axis digital readout system
• Three-jaw chuck
• Four-jaw chuck
• Faceplates
• Fixed steady rest
• Follow rest
• Halogen work light
• Built-in cabinet base with drawers
• Chuck guard
• Foot brake
• Thread-chasing dial
• Oil gun
• Toolbox
• Operating manual

WEIGHT AND DIMENSIONS

• Approximate net weight: 510kg
• Approximate gross packed weight: 600kg
• Packing dimensions: 1930 × 760 × 1600mm

The Capital TW1440 is ideally suited to general engineering workshops, maintenance departments, automotive and agricultural repair businesses, mining support operations, schools, training facilities and fabrication workshops requiring dependable in-house machining capability.

Capital Equipment Machinery Sales can assist with delivery, installation, commissioning, operator training, tooling selection and ongoing servicing. Additional tooling and workholding packages can also be supplied to suit your machining requirements.

Contact Capital Equipment Machinery Sales for current availability, pricing and further information on the Capital TW1440 precision centre lathe.

SHENYANG SMTCL HORIZONTAL LATHES – RELIABLE TURNING SOLUTIONS FROM LIGHT MACHINING TO HEAVY-DUTY PRODUCTION

Shenyang SMTCL horizontal lathes combine rigid construction, proven machine-tool engineering and flexible configuration options to deliver accurate, dependable machining across a wide range of turning applications.

The range includes conventional centre lathes, heavy-duty turning machines and specialist pipe-threading lathes. Machines are available in multiple swing diameters, spindle bores, bed lengths and control configurations to suit everything from everyday workshop repairs to continuous production machining.

SMTCL horizontal lathes can perform a wide variety of operations, including external and internal turning, facing, taper turning, grooving, boring, drilling and thread cutting.

Key features available across the range include:

• Rigid, high-strength cast-iron machine construction
• Wide range of swing diameters and turning lengths
• Standard and large-bore spindle configurations
• High spindle torque for demanding machining operations
• Geared, variable-speed and servo-driven spindle options
• Manual, hydraulic and power-chuck configurations
• Rapid axis movement for reduced non-cutting time
• Manual, hydraulic and programmable tailstock options
• Four-position, six-position and multi-station turret configurations
• Metric, imperial, modular and diametral thread-cutting capability on selected models
• Full or semi-enclosed guarding options
• Integrated coolant systems
• Chip trays and powered chip conveyors
• Work lights and operator-accessible controls
• Steady-rest and travelling-rest options for long components
• Configurations suitable for Australian workshop power supplies

CNC CONTROL OPTIONS

Depending on the selected machine and application, SMTCL horizontal CNC lathes can be supplied with control systems from leading manufacturers such as FANUC and Siemens, along with GSK and other cost-effective CNC options.

Control configurations are available for straightforward two-axis turning through to more advanced production applications. Capital Equipment Machinery Sales can recommend a control system based on your operators’ experience, programming requirements, production volume and budget.

OPTIONAL EQUIPMENT

Available options may include:

• Larger manual or hydraulic chucks
• Three-jaw and four-jaw chuck configurations
• Collet-chuck systems
• Hydraulic tailstocks
• Multi-station CNC turrets
• Gang-tool arrangements
• Steady rests and travelling rests
• Larger spindle bores
• Boring-bar holders
• Tool-setting systems
• Bar feeders and bar-support systems
• Parts catchers
• Powered chip conveyors
• Additional safety guarding and interlocks
• Tooling packages and workholding equipment
• Customised machine configurations

SMTCL horizontal lathes are suitable for machining:

• Shafts, pins and rollers
• Bushes, sleeves and flanges
• Discs, hubs and pulleys
• Hydraulic-cylinder components
• Mining and drilling components
• Pipes and threaded tubular products
• Agricultural and transport components
• Repair and maintenance parts
• High-volume production components
• Large-diameter and long-shaft workpieces

These machines are well suited to general engineering workshops, mining support operations, oil and gas services, transport, agricultural manufacturing, hydraulic repair, heavy equipment maintenance and production machining.

Capital Equipment Machinery Sales can assist with machine selection, workholding, tooling, delivery, installation, commissioning, operator training and ongoing servicing. Our technicians can provide continued support throughout the working life of the machine.

Provide us with your maximum component diameter, required machining length, spindle-bore requirement, material type, workpiece weight and expected production volume, and we can recommend the correct SMTCL horizontal lathe and configuration for your application.

Contact Capital Equipment Machinery Sales for available models, detailed specifications and a quotation tailored to your machining requirements.

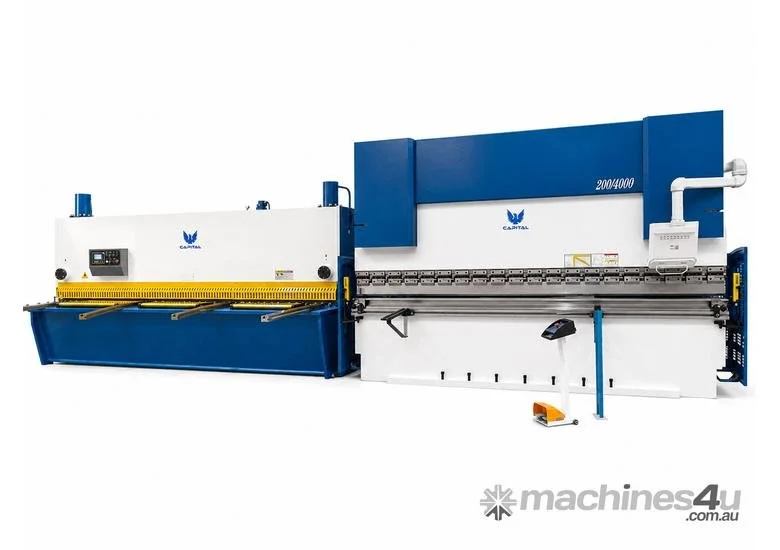

CAPITAL HYDRAULIC GUILLOTINES – PRECISION SHEET-METAL AND PLATE CUTTING SOLUTIONS

Capital hydraulic guillotines combine heavy-duty construction, reliable hydraulic operation and accurate material positioning to deliver clean, consistent cuts across a wide range of sheet-metal and plate applications.

Available in multiple cutting capacities, bed lengths and control configurations, each machine can be selected and equipped to suit your material type, maximum thickness, sheet dimensions, production requirements and budget.

The rigid, fully welded machine frame provides the strength and stability required for dependable cutting accuracy. Hydraulic operation delivers smooth blade movement, while programmable backgauges allow operators to quickly and accurately position material for both individual cuts and repeat-production work.

Available configurations include hydraulic swing-beam and variable-rake guillotines, with controller options ranging from straightforward NC systems through to advanced touchscreen CNC controls. Selected models allow the backgauge position, cutting angle, blade clearance and stroke length to be programmed from the controller.

Key features:

• Heavy-duty, fully welded steel frame
• Reliable hydraulic cutting system
• Accurate and repeatable sheet positioning
• Motorised or CNC-controlled backgauge
• Ball-screw and linear-guide backgauge systems
• Adjustable blade clearance on selected models
• Adjustable cutting angle on variable-rake models
• Programmable cutting stroke and cut counter
• Hydraulic sheet hold-down system
• High-quality, multi-edge cutting blades
• Cutting-line illumination
• Front sheet-support arms
• Squaring arm with measurement scale
• Ball-transfer worktable for easier material handling
• Foot-pedal operation
• Front finger guarding and side protection
• Emergency-stop controls
• Rear guarding and light-curtain options
• Electrical configurations suitable for Australian workshop power supplies
• Custom machine capacities and specifications available

Control options include systems from leading manufacturers such as Delem and ELGO, as well as reliable digital NC controllers for general workshop applications. The appropriate control system can be selected according to the level of automation, repeatability and operator convenience required.

Optional equipment includes:

• Extended CNC backgauge travel
• Pneumatic rear sheet-support systems
• Rear light-curtain protection
• Automatic blade-clearance adjustment
• Automatic cutting-angle adjustment
• Front support arms in custom lengths
• Additional squaring arms
• Hydraulic oil-cooling systems
• Automatic lubrication systems
• Material conveyors and handling systems
• Custom safety guarding
• Special-purpose machine sizes and configurations

Capital hydraulic guillotines are suitable for general fabrication, sheet-metal workshops, switchboard manufacturing, ducting, transport equipment, mining components, agricultural machinery, tanks, structural fabrication and production cutting.

Capital Equipment Machinery Sales can assist with machine selection, delivery, installation, commissioning, operator training, servicing and ongoing technical support. Our team can also help determine the correct cutting capacity by considering material tensile strength rather than relying on plate thickness alone.

Provide us with your material type, maximum cutting thickness, required cutting length and expected production volume, and we can recommend the most suitable Capital guillotine and control configuration for your application.

Contact Capital Equipment Machinery Sales for available models, detailed specifications and a quotation tailored to your requirements.

PERTH-DESIGNED AND MANUFACTURED STEEL WELDING TABLES

Built locally for Australian workshops, our steel welding tables are designed and manufactured in Perth to provide a strong, stable and practical work surface for welding, fabrication, assembly and repair work.

Each table features a fully braced, rigid steel frame engineered to minimise movement during fabrication. The heavy-duty steel top incorporates 16mm fixture holes, allowing compatible clamps, stops, squares and other fixtures to be positioned around the workpiece for faster setup and more accurate fabrication.

The tables are supplied with both fixed legs and castor wheels, providing the flexibility to create a stable workstation while still allowing the table to be moved around the workshop when required.

Key features:

• Designed and manufactured in Perth, Western Australia
• Heavy-duty steel construction
• Fully braced and rigid frame design
• Steel plate work surface
• 16mm fixture holes across all models except 16mm plate thickness models
• Suitable for modular clamps, stops and fabrication fixtures
• Supplied with legs and castor wheels
• Suitable for welding, fabrication, assembly and repair work
• Multiple table sizes and plate thicknesses available
• Available pre-welded and fully assembled
• Flat-pack options available for easier and more economical transport

Available sizes:

• 3000 × 1500mm table with 16mm steel plate (28mm fixture hole)
• 3000 × 1500mm table with 12mm steel plate
• 1400 × 800mm table with 6mm steel plate
• 2400 × 1200mm table with 6mm steel plate
• 2000 × 1000mm table with 6mm steel plate
• 1800 × 150mm trestle with 6mm steel plate

The range includes compact tables for smaller workshops and repair work, through to large-format, heavy-duty tables for structural fabrication and demanding industrial applications.

The 16mm fixturing system makes it easier to hold components securely, maintain alignment and repeat common fabrication setups. Fixtures can be repositioned to suit different jobs, giving workshops a flexible workholding platform without requiring a dedicated jig for every component.

Tables can be delivered pre-welded and assembled for immediate use or supplied flat-packed for straightforward transport and site assembly.

Ideal for:

• General fabrication workshops
• Welding bays
• Mining and equipment-maintenance facilities
• Structural-steel fabrication
• Agricultural and transport workshops
• Production and assembly work
• Training facilities
• Mobile and remote-site workshops

Contact Capital Equipment Machinery Sales for pricing, availability, suitable fixtures and delivery options.

CUSTOM-DESIGNED PARKANSON BANDSAW AND MATERIAL-HANDLING SYSTEMS

Capital Equipment Machinery Sales can design and supply customised Parkanson bandsaw systems to suit virtually any cutting application—from a standalone workshop bandsaw through to a fully automated production line.

Rather than simply supplying a standard machine, we assess your material sizes, section types, stock lengths, finished cut lengths, mitre requirements and production volumes. We can then recommend the correct Parkanson bandsaw and configure the surrounding material-handling system to suit your workflow, available floor space and future production requirements.

Custom systems can include:

• Fully automated powered infeed conveyors
• Powered or gravity outfeed roller systems
• Servo-controlled material positioning
• Automatic length measurement and indexing
• CNC-programmed cut lengths, quantities and mitre angles
• Automatic straight and double-mitre cutting
• Hydraulic horizontal and vertical clamping

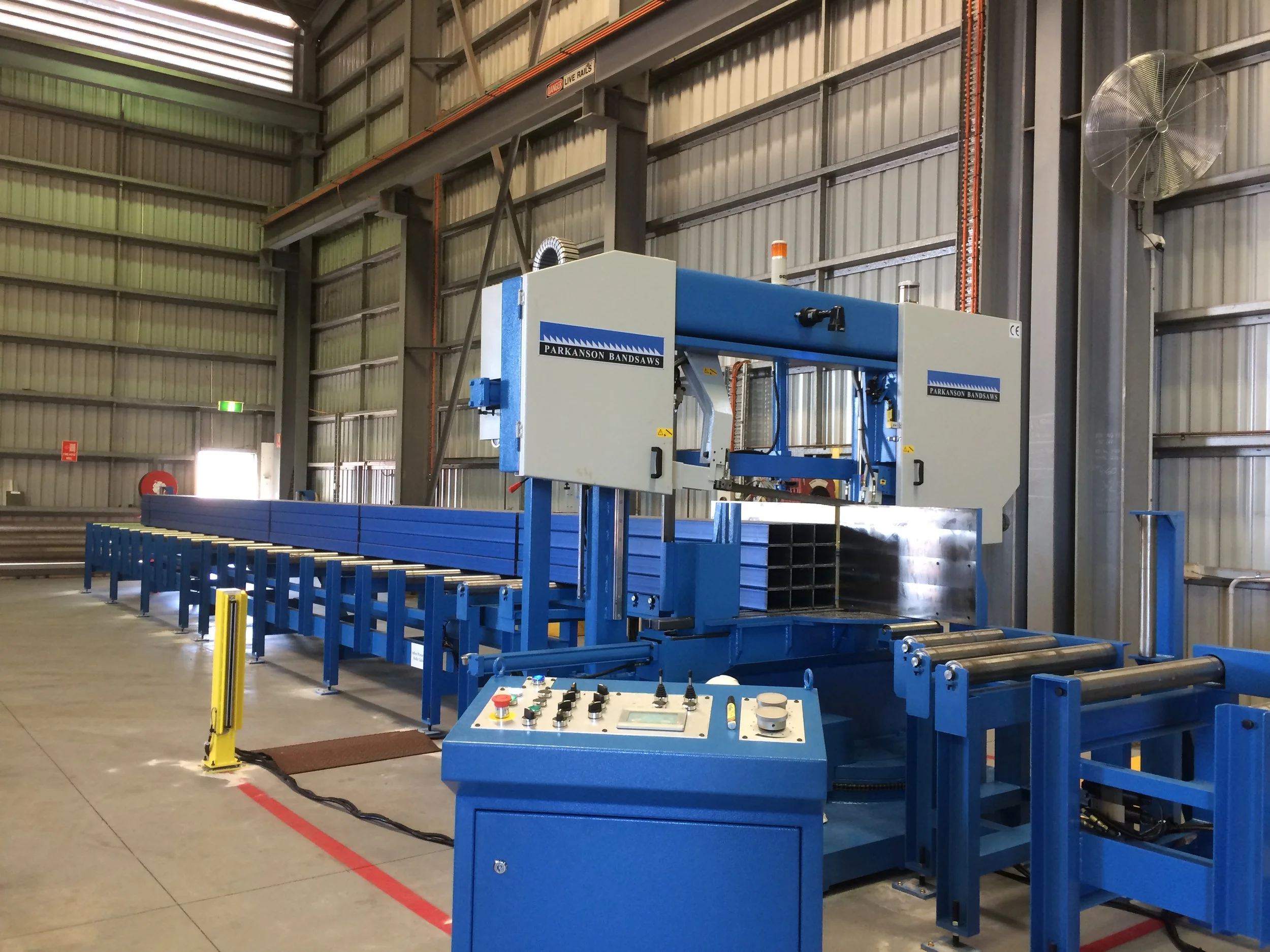

• Bundle- and pack-cutting systems
• Cross-transfer and material-loading systems
• Automated sorting and discharge solutions
• Heavy-duty roller tables for long beams and sections
• Custom conveyor lengths and working heights
• Laser or digital material-alignment systems
• Integration with existing workshop equipment
• Safety guarding, interlocks and emergency-stop systems
• Custom controls and operator interfaces

Fully automated infeed systems can load, position and advance material to the programmed cutting length with minimal operator involvement. Once the cut is complete, powered outfeed conveyors can move finished components away from the saw for unloading, sorting or transfer to the next stage of production.

These systems can be designed for solid bar, pipe, tube, RHS, SHS, angle, channel, I-beams and other structural sections. Solutions are available for everything from occasional workshop cutting through to high-volume processing of long and heavy material.

Automating the cutting and material-handling process can help:

• Reduce manual handling of long and heavy material
• Improve operator safety
• Increase production output
• Maintain consistent cut lengths and angles
• Reduce setup and material-positioning time
• Minimise repetitive crane and forklift movements
• Reduce operator workload
• Improve workflow between cutting and fabrication processes

Capital Equipment Machinery Sales can manage the complete project, including initial consultation, system design, machine selection, conveyor configuration, delivery, installation, commissioning and operator training.

Our support continues after installation, with Parkanson bandsaw blades, spare parts and accessories stocked in Perth and technicians available for servicing, repairs and ongoing system support.

Whether you need a single bandsaw with roller tables or a complete automated cutting and material-handling line, we can design a Parkanson system around your operation.

Contact Capital Equipment Machinery Sales with your material specifications, stock lengths, required cut sizes and production targets to discuss a customised solution.

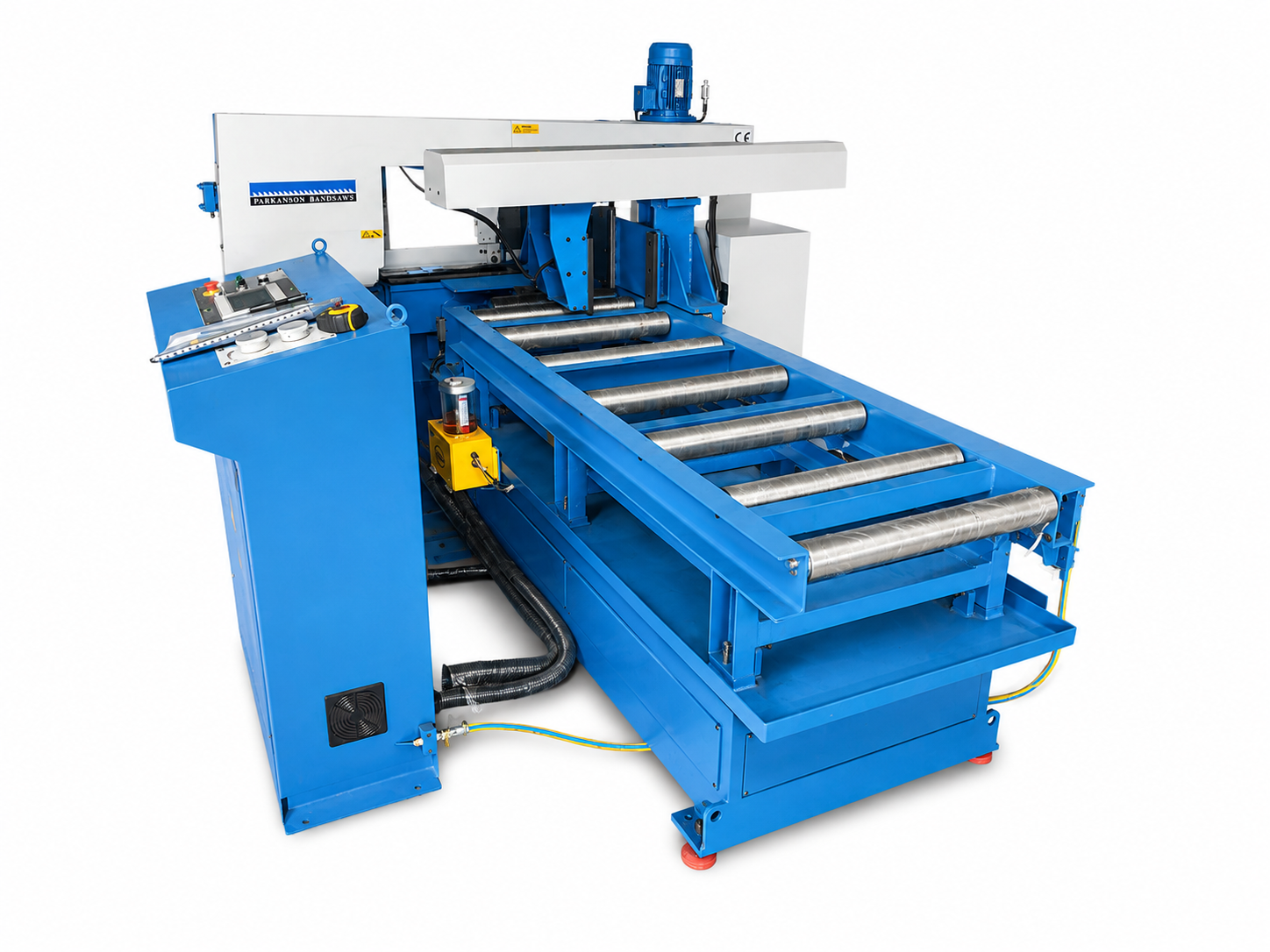

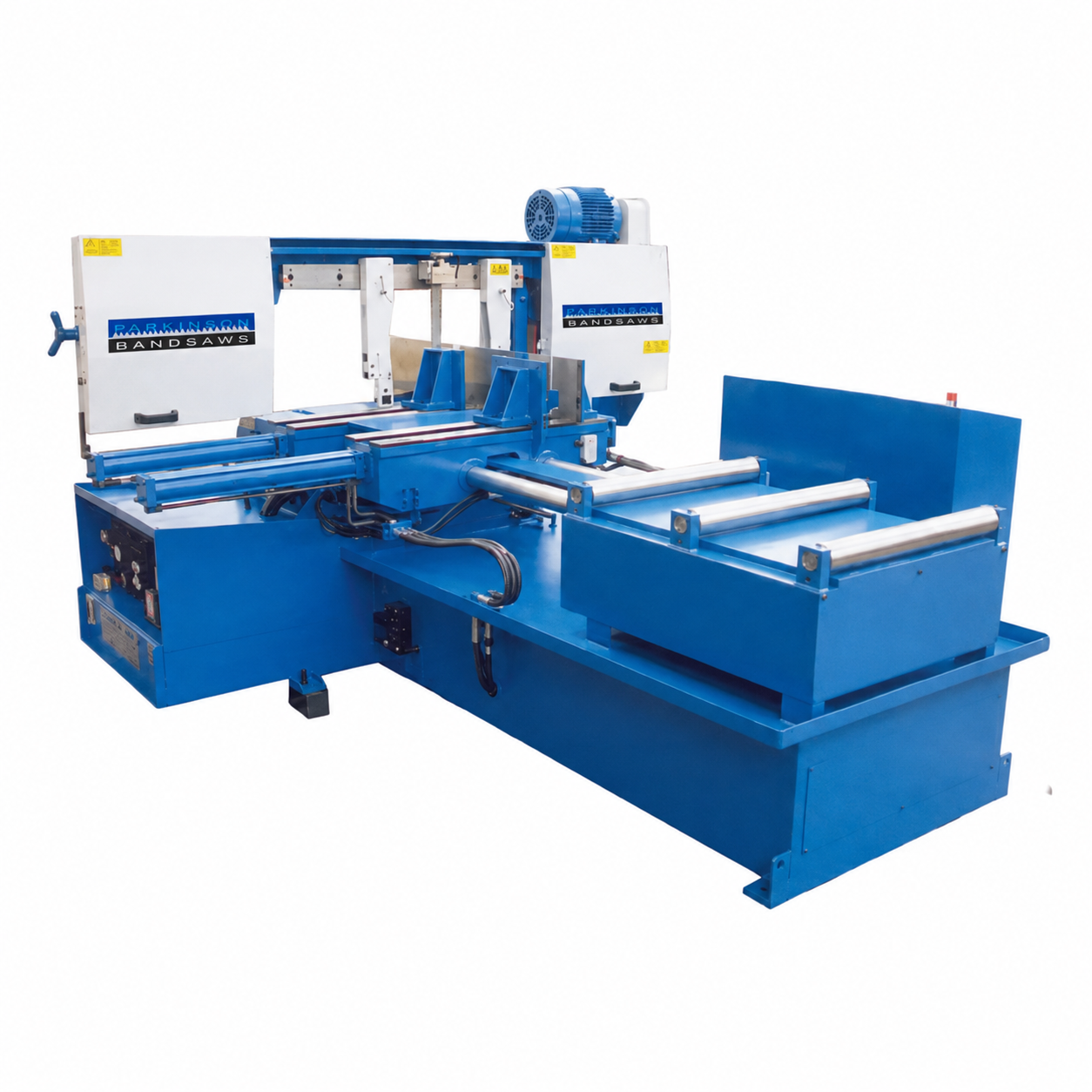

The Parkanson DMA series is a range of heavy-duty, fully automatic CNC twin-column bandsaws designed for production cutting and mitring of large beams, pipes, hollow sections and solid material.

Available in cutting widths from 650mm through to 1300mm, the range includes the PK650DMA, PK705DMA, PK800DMA, PK1000DMA and PK1300DMA. Each machine combines automatic material feeding, hydraulic clamping and CNC-controlled saw-head positioning to complete straight and mitre cuts with minimal operator input.

The saw head can automatically position for angles up to 60° left and 45° right, allowing opposite mitres to be completed without turning long or heavy workpieces. This significantly reduces material handling when processing structural beams and fabricated sections.

A 2300mm servo-driven material feeder uses precision steel guides with rack-and-pinion movement to provide fast and accurate material positioning. The long feeding stroke reduces the number of repositioning cycles required when processing long components.

Key features:

• Fully automatic CNC cutting and material feeding
• Automatic CNC double-mitre positioning
• Heavy-duty twin-column construction
• Precision linear guideways for stable saw-head movement
• Models with cutting widths from 650mm to 1300mm
• Suitable for beams, pipe, tube, solid bar and structural sections
• 2300mm servo-driven material-feed stroke
• Precision rack-and-pinion feeder system
• CNC storage for more than 250 cutting programs
• Programmable cutting lengths, quantities and mitre angles
• Variable blade speed from 20 to 90m/min
• Hydraulic material clamping
• Hydraulic blade tensioning
• Automatic blade-guide-arm positioning
• Five-degree inclined blade for smoother entry into beams and hollow sections
• Laser cutting-line indicator
• Work light supplied as standard
• Opposite-angle cutting without turning the material
• Automatic continuous production cycle

MODEL RANGE

PK650DMA

• Round capacity at 90°: 450mm diameter
• Rectangular capacity at 90°: 440 × 650mm
• Capacity at 45° left and right: 440 × 420mm
• Main blade motor: 3.75kW
• Blade size: 5400 × 41 × 1.3mm

PK705DMA

• Round capacity at 90°: 450mm diameter
• Rectangular capacity at 90°: 440 × 700mm
• Capacity at 45° left and right: 440 × 450mm
• Main blade motor: 3.75kW
• Blade size: 5660 × 41 × 1.3mm

PK800DMA

• Round capacity at 90°: 600mm diameter
• Rectangular capacity at 90°: 550 × 800mm
• Capacity at 45° left: 400 × 520mm
• Capacity at 45° right: 550 × 520mm
• Main blade motor: 5.5kW
• Blade size: 6740 × 41 × 1.3mm

PK1000DMA

• Round capacity at 90°: 650mm diameter
• Rectangular capacity at 90°: 650 × 1000mm
• Capacity at 45° left and right: 450 × 650mm
• Main blade motor: 7.5kW
• Blade size: 7750 × 54 × 1.6mm

PK1300DMA

• Round capacity at 90°: 760mm diameter
• Rectangular capacity at 90°: 700 × 1300mm
• Capacity at 45° left and right: 650 × 850mm
• Main blade motor: 10kW
• Blade size: 9300 × 67 × 1.6mm

Standard equipment:

• CNC touchscreen control
• 2300mm servo material-feeding system
• Automatic mitre-angle positioning
• Variable blade-speed drive
• Hydraulic blade-tensioning system
• Hydraulic material vices
• Laser cutting-line indicator
• Automatic blade-guide-arm positioning
• Work light

Optional equipment:

• Three-metre feeder-extension unit
• Mist-lubrication system
• Hydraulic top-clamping system
• Full-height vice jaws
• Manual roller tables
• Powered roller tables
• Custom material-handling systems

The Parkanson DMA range is ideal for structural-steel fabricators, mining-equipment manufacturers, transport and trailer builders, shipyards, construction-steel processors and heavy-engineering workshops.

Capital Equipment Machinery Sales can assist with machine selection, material-handling systems, bandsaw blades, delivery, installation, operator training and ongoing servicing. Parkanson blades, spare parts and accessories are stocked in Perth.

Provide us with your maximum material dimensions, required mitre angles, cut lengths and production quantities, and we can recommend the correct DMA model and configuration.

Contact us for availability and a quotation tailored to your application.

PARKANSON PK1300DMA SEMI-AUTOMATIC DOUBLE-MITRE BANDSAW

The Parkanson PK1300DMA is a heavy-duty, semi-automatic twin-column bandsaw designed for high-volume processing of large structural beams, pipes, tubes and solid material.

With a maximum rectangular cutting capacity of 1,300 x 700mm, the PK1300DMA is suited to large structural-steel fabricators, mining workshops and heavy engineering operations. Its rigid twin-column design, linear guideways and 67mm blade provide the stability required for accurate cutting across large material sections.

Key features:

• Semi-Automatic mitre adjustment
• Heavy-duty twin-column construction
• Variable mitre cutting from 60° left to 45° right
• Automatic blade-guide-arm positioning
• 5° inclined blade reduces initial impact when cutting beams and square sections
• Hydraulic material clamping
• Hydraulic blade tensioning
• Variable-speed blade drive
• Laser cutting-line indicator
• Integrated work light

Cutting capacities:

• 90° round: 760mm
• 90° rectangular: 700 x 1,300mm
• 45° left or right rectangular: 650 x 850mm
• 60° left rectangular: 650 x 550mm

Technical specifications:

• Blade size: 9,300 x 67 x 1.6mm
• Variable blade speed: 20–90m/min
• Main blade motor: 10kW
• Hydraulic motor: 2.2kW
• Vice clamping width: 200–1,320mm
• Working height: 850mm
• Saw unit weight: approximately 7,400kg

Optional equipment includes mist lubrication, hydraulic top clamping, standard roller tables and powered roller tables.

Parts, blades and accessories for the Parkanson bandsaw range are stocked locally in Perth, with installation, servicing and ongoing technical support available through Capital Equipment Machinery Sales.

Contact us to discuss your material sizes, required cut lengths and production needs.

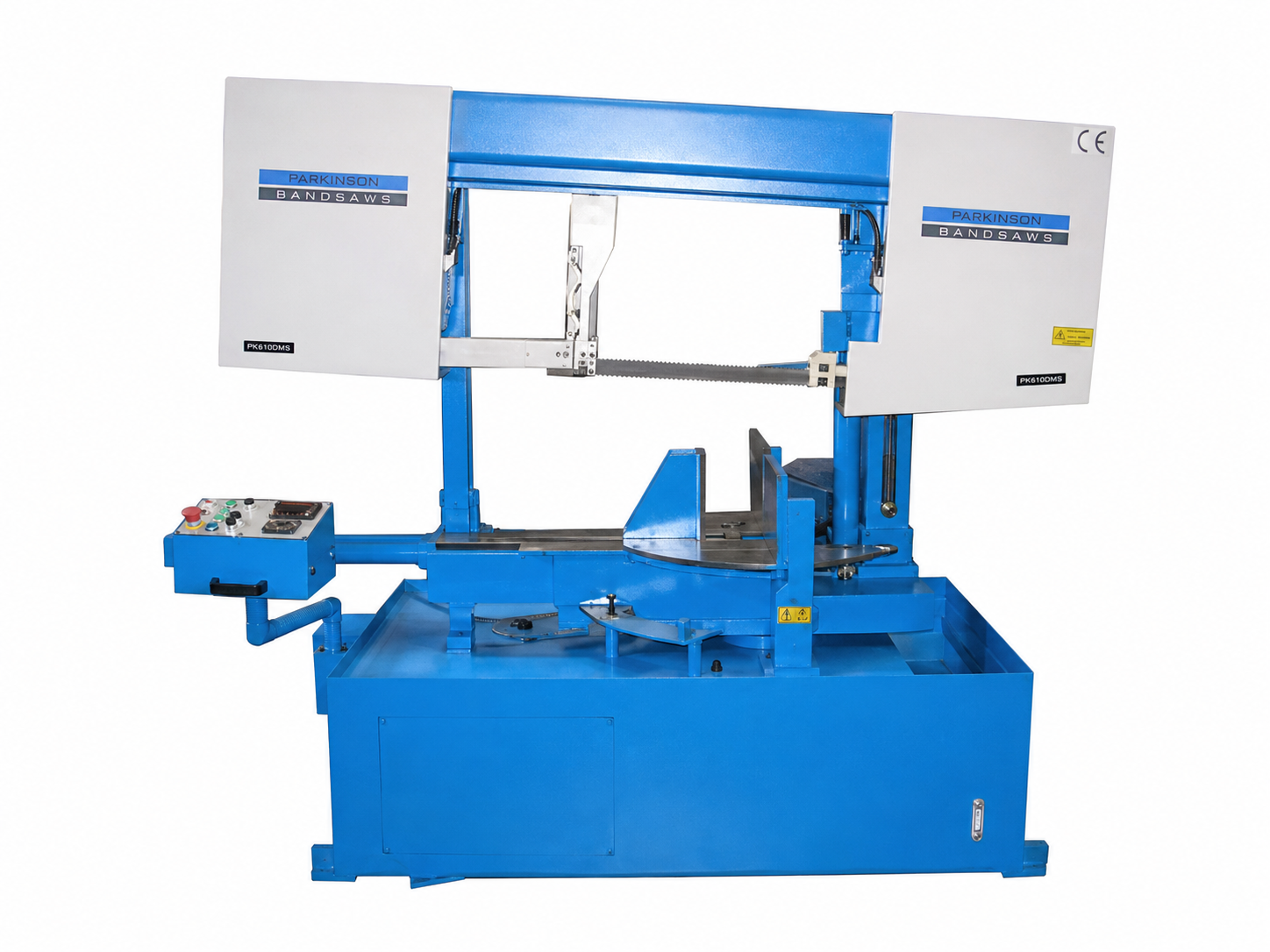

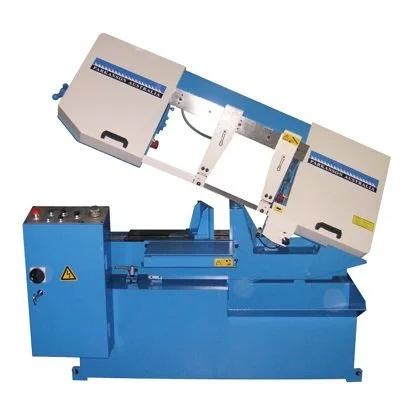

The Parkanson Bandsaws are a quality Bandsaw which was originally designed and manufactured in Australia.

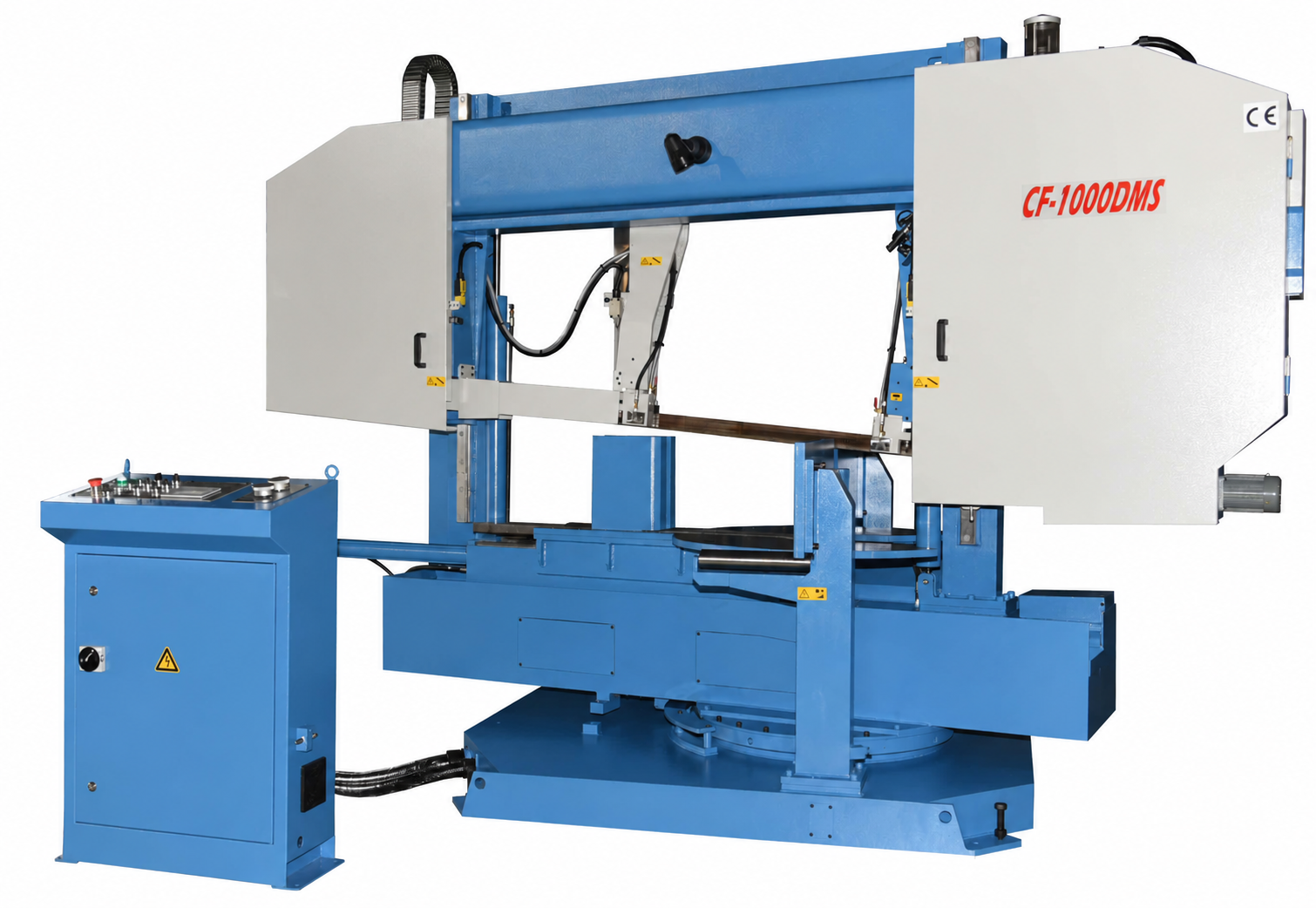

With a capacity of 1000 x 650mm the Parkanson PK1000DMS is a Twin Column Machine ideal for larger steel fabricators. All Parkanson Bandsaws are designed to cut to their full capacity. The PK1000DMS is a Semi Automatic Machine with a full stroke hydraulic vice and double mitre 45 degrees in one direction and 60 degrees in the other which is controlled hydraulically by moving a lever on the control panel or by entering the angle required into a key pad and pressing GO.

There is a Laser fitted to the machine to assist in the lining up of the material to be cut.

Once you get to the larger capacity Bandsaws (eg. over 600mm width capacity) most quality manufacturers of Bandsaws become Twin Column so you have more control over the bow as it travels through the material, increasing the blade life and making blade selection easier.

Most parts and accessories for the complete range of Parkanson Bandsaws are kept in stock here in Perth.

FEATURES:
– Cut any angle from 45 degrees forward to 60 degrees backward.
– NC/manual mitre positioning with digital readout.
– Inclination of the saw blade (5 degrees) to reduce the initial blade impact when cutting beams.
– Columns with linear guideway.

The Parkanson Bandsaws are a quality Bandsaw which was originally designed and manufactured in Australia. Most parts and accessories for the complete range of Parkanson Bandsaws are kept in stock here in Perth. The PK800DMS is a heavy duty semi-auto double mitre cutting bandsaw.

FEATURES:
-For cutting any angle from 45 degrees forward to 60 degrees backward.
-NC/Manual mitre positioning with digital readout.
-The rotary centre is at the intersection point of the saw blade and the fixed vice jaw.
-Inclination of the saw blade (5 degrees) to reduce the inital blade impact when cutting beams.
-Columns with linear guideway.
-Automatic positioning of guide arm.
-Return of saw bow to starting cutting position or stop at bottom when material cut.

STANDARD EQUIPMENT:
-Variable blade speed drive
-Hydraulic blade tension
-Laser liner
-Vice pressure regulator

OPTIONAL EQUIPMENT:
-Mist lubrication
-Top clamp
-Full height vice jaws
-Roller table
-Powered roller table
-NC material feed system

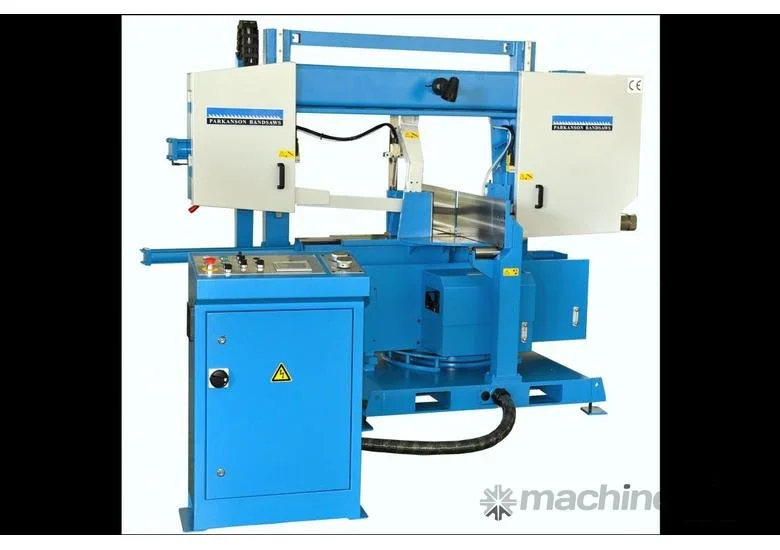

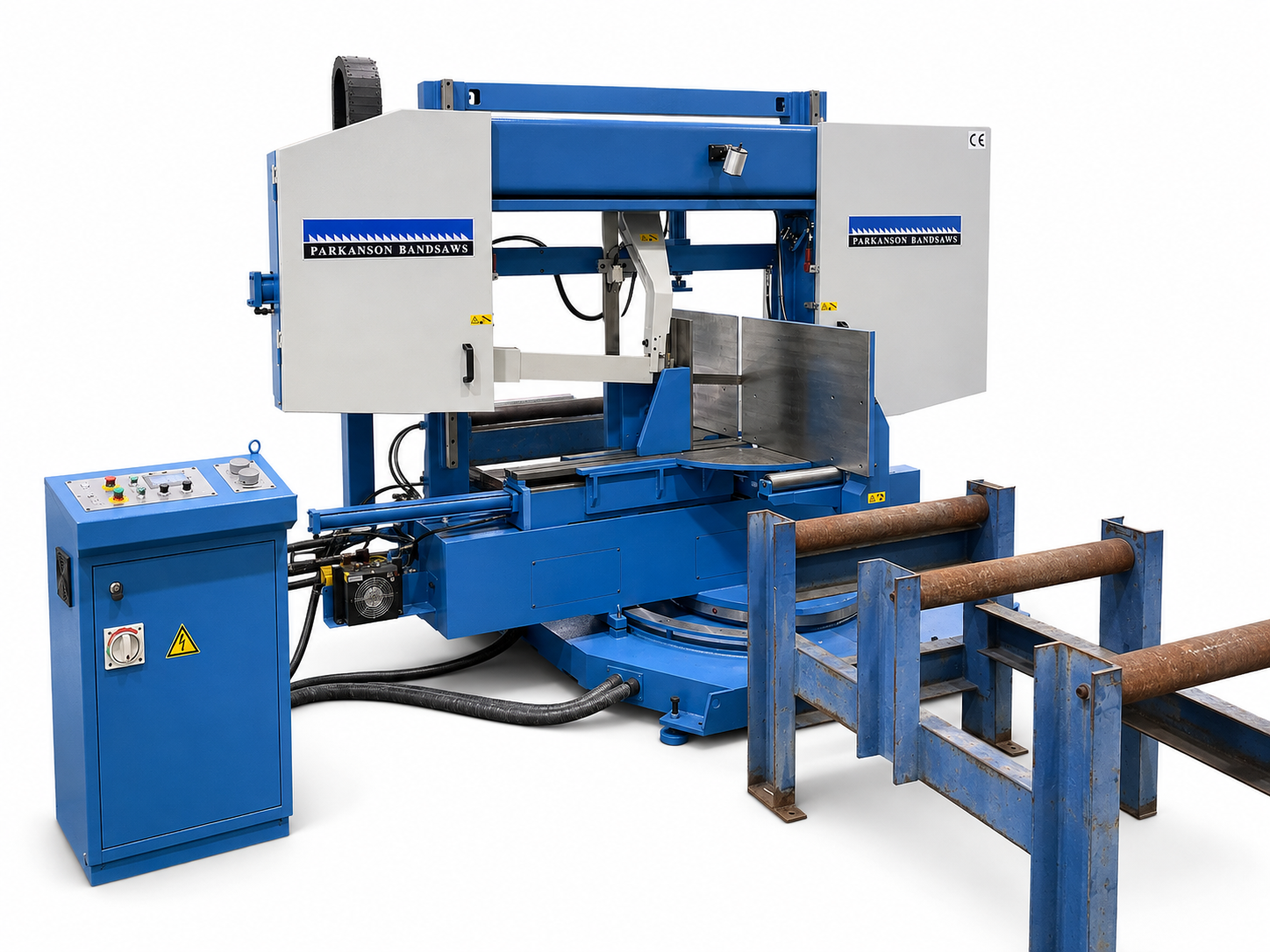

With a capacity of 700 x 440mm the Parkanson PK705DMS Metal Cutting Bandsaw is a Twin Column Machine ideal for larger steel fabricators. All Parkanson Bandsaws cut to their full capacity.

The PK705DMS is a semi automatic machine with a full stroke hydraulic vice and double mitre therefore allowing cutting from 45 degrees left to 45 degrees right. The angle is hydraulically controlled by a lever on the control panel. In addition a laser fitted to the machine assists in lining up the material to be cut.

Once you get to larger capacity bandsaws (eg. over 600mm width capacity) most quality manufacturers of bandsaws become twin column, therefore you have more control over the bow as it travels through the material.  Thus increasing blade life and making blade selection easier.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

Features:
– Swivel head allows mitre cutting at any angle from 45 degrees left to 45 degrees right.

– Simple blade speed and angle adjustment due to the digital readout.

– Hydraulic adjustment of mitre angle with digital readout to 0.10 of a degree accuracy.

– Extra heavy duty twin column design.

– Full stroke hydraulic vice clamps

– Users can feed material from either side of the machine due to the split vice clamping system.

Specifications:
Cutting Capacity: (90 degrees): Round: 450mm Rect: 440 x 700mm

(45 degrees): 440mm x 450mm

(30 degrees): Left: 440 x 270mm Right: 440 x 290mm

Blade Size: 5660 x 41 x 1.3mm

Blade Speed: 20-90 mpm variable

Main Motor: 3.75kW

Working Height: 730mm

Weight: 2500kg

Packing Dimensions (LxWxH): 1600 x 3000 x 2300mm

PARKANSON PK650DMS SEMI-AUTOMATIC DOUBLE-MITRE BANDSAW

The Parkanson PK650DMS is a heavy-duty, semi-automatic twin-column bandsaw designed for accurate double-mitre cutting of beams, pipes, tubes, solid bar and structural steel.

Its swivelling saw head cuts angles on either side of 90°, allowing opposite mitres to be completed without turning long or heavy workpieces. This makes the PK650DMS particularly well suited to structural-steel fabrication, where repositioning large beams can be difficult and time-consuming.

The rigid twin-column construction and precision linear guideways provide excellent stability throughout the cutting cycle. A five-degree blade inclination reduces the initial impact on beam flanges and hollow sections, helping produce smoother cuts while reducing stress on the blade.

NC/manual mitre positioning and a digital angle display allow the operator to set cutting angles quickly and accurately. The saw’s pivot point is positioned at the intersection of the blade and fixed vice jaw, helping maintain a consistent cutting reference when the head angle is changed.

Key features:

• Semi-automatic cutting cycle
• Heavy-duty twin-column construction
• Double-mitre cutting without turning the material
• NC/manual mitre positioning
• Digital angle readout
• Large 440 × 650mm rectangular cutting capacity
• 450mm round cutting capacity
• Linear guideways for stable and accurate saw-head movement
• Five-degree inclined blade for improved cutting of beams and sections
• Automatic blade-guide-arm positioning
• Hydraulic full-stroke vice
• Adjustable vice-pressure regulator
• Hydraulic blade tensioning
• Variable blade-speed drive
• Laser cutting-line indicator
• Automatic bow return after completing the cut
• Option to stop the saw bow at the bottom of the cut

Cutting capacities:

• At 90° – round: 450mm diameter
• At 90° – rectangular: 440 × 650mm
• At 45° left: 440 × 420mm
• At 45° right: 440 × 420mm
• At 30° left: 340 × 270mm
• At 30° right: 440 × 270mm

Specifications:

• Blade size: 5400 × 41 × 1.3mm
• Variable blade speed: 20–90m/min
• Main blade motor: 3.75kW
• Hydraulic-system motor: 0.75kW
• Hydraulic vice clamping range: 60–670mm
• Working height: 730mm
• Machine dimensions, L × W × H: 1550 × 2900 × 2200mm
• Approximate machine weight: 2200kg

Standard equipment:

• Variable blade-speed drive
• Hydraulic blade-tensioning system
• Digital mitre-angle display
• Laser cutting-line indicator
• Vice-pressure regulator
• Flood-coolant system
• Bi-metal bandsaw blade
• Work light and operator tools

Optional equipment:

• Mist-lubrication system
• Hydraulic top clamp for bundle cutting
• Full-height vice jaws
• Manual roller tables
• Powered roller tables
• Digital length-stop system
• NC material-feeding system

The Parkanson PK650DMS is ideal for structural-steel fabricators, mining-equipment manufacturers, general engineering workshops and businesses cutting large beams, pipes and fabricated sections.

Capital Equipment Machinery Sales keeps Parkanson bandsaw blades, spare parts and accessories in stock in Perth. We can also assist with delivery, installation, operator training and ongoing servicing.

Contact us with your material sizes and required cutting angles for availability and a quotation tailored to your application.

The Parkanson PK610DMS metal cutting bandsaw is a twin column machine ideal for larger steel fabricators with a capacity of 610 x 400mm. All Parkanson Bandsaws are designed to cut to their full capacity.

The PK610DMS is a Semi Automatic Machine with a full stroke hydraulic vice and double mitre 45 degrees in one direction and 60 degrees in the other. In addition the laser fitted to the machine assists in the lining up of the material to be cut.
Once you get to the larger capacity bandsaws (eg. over 600mm width capacity) most quality manufacturers of bandsaws become Twin Column so you have more control over the bow as it travels through the material, increasing the blade life and making blade selection easier.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

Features:
-Cut any angle from 90deg to 30deg left and 90deg to 45deg right. The angle is set manually with a digital readout to 0.10 degree accuracy.

-The bow swivels around the intersection point of the saw blade and the fixed vice jaw.

-Inclination of the saw bow (4deg) to reduce the initial blade impact when cutting large sections.

-The column has linear guide ways for bow stability, longer blade life and accurate cutting.

-The bow returns to the starting position at the end of each cut.

Specifications:
Cutting Capacity (90deg round): 420mm

Cutting Capacity (90deg rect): 400x610mm

Cutting Capacity (45deg left rect): 400x400mm

Cutting Capacity (45deg right rect): 400x400mm

Cutting Capacity (60deg left Rect): 400x225mm

Blade Size: 4870x34x1.1mm

Blade Speed: 25-90mpm variable

Main Motor: 3.75kW

Working Height: 750mm

Weight: 1750kg

Dimensions (LxWxH): 1250x2550x1950mm

PARKANSON PK500DMA FULLY AUTOMATIC DOUBLE-MITRE BANDSAW RANGE

Available models: PK500DMA, PK5015DMA and PK5030DMA

The Parkanson PK500DMA range consists of fully automatic, double-mitre bandsaws designed for high-productivity cutting of structural steel, RHS, SHS, pipe, channel and solid material.

These machines automatically feed, position, clamp and cut the material to programmed lengths, quantities and angles. Their automatic double-mitre capability allows opposite angles to be cut without turning or flipping long, heavy sections—reducing material handling and improving workshop efficiency.

All three models share the same cutting capacity and core machine platform, with different automatic-feed systems available to suit the required material lengths and production volumes.

Model options:

• PK500DMA – 600mm single-stroke automatic hitch feed
• PK5015DMA – 1,500mm single-stroke servo infeed
• PK5030DMA – 2,500mm single-stroke servo infeed

The longer-feed models reduce the number of indexing cycles required when processing long structural sections, providing faster production and fewer material re-clamping operations.

Key features:

• Fully automatic feed, clamp and cutting cycle
• CNC-controlled automatic double-mitre positioning
• Cuts opposing angles without flipping the material
• Automatic mitre range up to 60° left and 45° right
• Programmable cut lengths, angles and quantities
• Touchscreen control with stored cutting programs
• Full-stroke hydraulic vice
• Automatic shifting vice for angled cuts
• Fixed carriage jaw opens during feeding to accommodate bent or uneven material
• Variable-speed inverter blade drive
• 34mm blade for accurate cutting of structural sections
• Mist lubrication system
• Laser alignment line
• Work light
• Manual and automatic operating modes

Cutting capacities:

• 90° round: 325mm
• 90° rectangular: 320 x 500mm
• 45° left rectangular: 320 x 350mm
• 45° right rectangular: 320 x 350mm
• 60° left rectangular: 320 x 210mm

General specifications:

• Blade size: 4,755 x 34 x 1.1mm
• Variable blade speed: 25–90m/min
• Main motor: 2.25kW
• Working height: 650mm

Optional equipment includes hydraulic blade tensioning, roller tables, powered roller tables, hydraulic top clamping and an automatic swarf conveyor.

Parts, blades and accessories for the Parkanson bandsaw range are stocked locally in Perth, with ongoing service and technical support available through Capital Equipment Machinery Sales.

https://www.youtube.com/watch?v=c9annMtquPE&t=14s

Contact us to discuss which feed configuration best suits your material lengths, production requirements and workshop layout.

A$24,500.00 (ex GST)

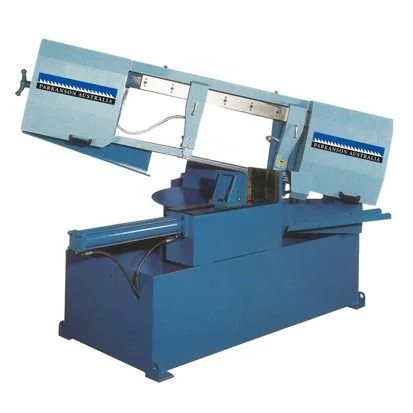

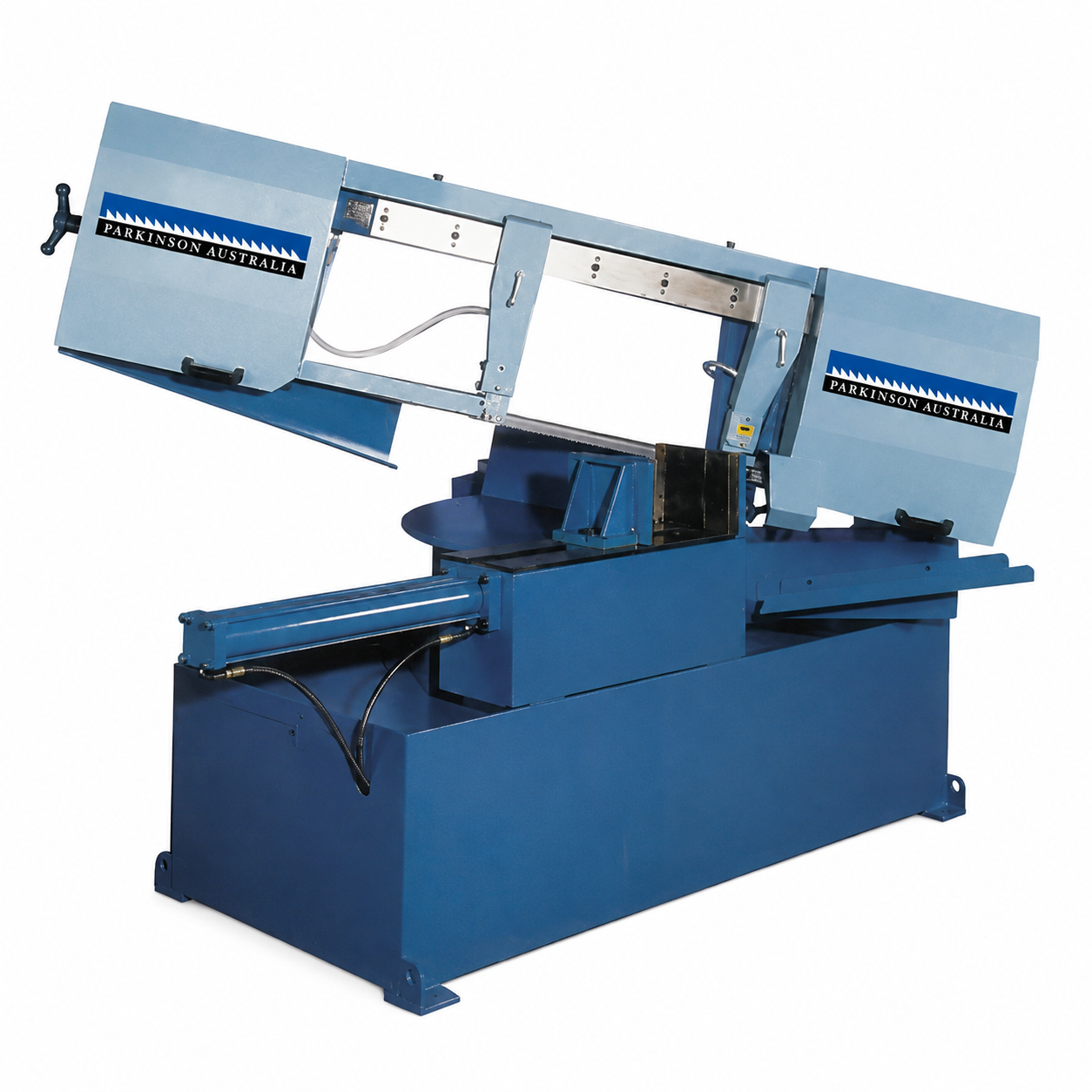

The Parkanson PK540SAM metal cutting bandsaw is a mitre cutting bandsaw which is ideal for medium to large steel fabricators. With a capacity of 330 x 535mm. All Parkanson Bandsaws cut to their full capacity.

The PK540SAM is a semi automatic bandsaw with a full stroke hydraulic vice. The bow of the bandsaw swivels to 45 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of the material to be cut.
Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:
– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the angle is accurately set with a graduated scale.

– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.

– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.

– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time

– Heavy duty blade tension with indicator.

– Tungsten carbide roller guides

– Fluid coolant system

SPECIFICATIONS:
90° Cutting Capacity: Round: 350mm, Rect: 330 x 535mm

45° Left Cutting Capacity: 350 x 370mm

30° Left Cutting Capacity: 350 x 320mm

Blade Size: 4755 x 34 x 1.1mm

Blade Speed: 25, 40, 60, 75, 95 m/min

Main Motor: 2.25kW

Working Height: 750mm

Net Weight: Approx 1150kg

Dimensions (LxWxH): 1150 x 2900 x 1550mm

A$22,500.00 (ex GST)

The Parkanson PK460SAM metal cutting bandsaw is a mitre cutting bandsaw which is ideal for medium to large steel fabricators. With a capacity of 450 x 320mm. All Parkanson Bandsaws cut to their full capacity.

The PK460SAM is a Semi Automatic Machine. Its hydraulic vice gives a 30mm travel. The bow of the bandsaw swivels to 60 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of the material to be cut.

Parts, accessories and blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:

– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the angle is accurately set with a graduated scale.
– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.
– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.
– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time
– Heavy duty blade tension with indicator.

SPECIFICATIONS:

Cutting Capacity (90 degrees): Round: 330mm, Rect: 320 x 450mm
Cutting Capacity (45 degrees): 320 x 300mm
Blade Size: 4115 x 34 x 1.1mm
Blade Speed: 25, 35, 45, 65, 80mpm
Main Motor: 2.25kW
Working Height:620mm
Weight:950kg
Dimensions (LxWxH): 1150 x 2060 x 1320mm

A$14,950.00 (ex GST)

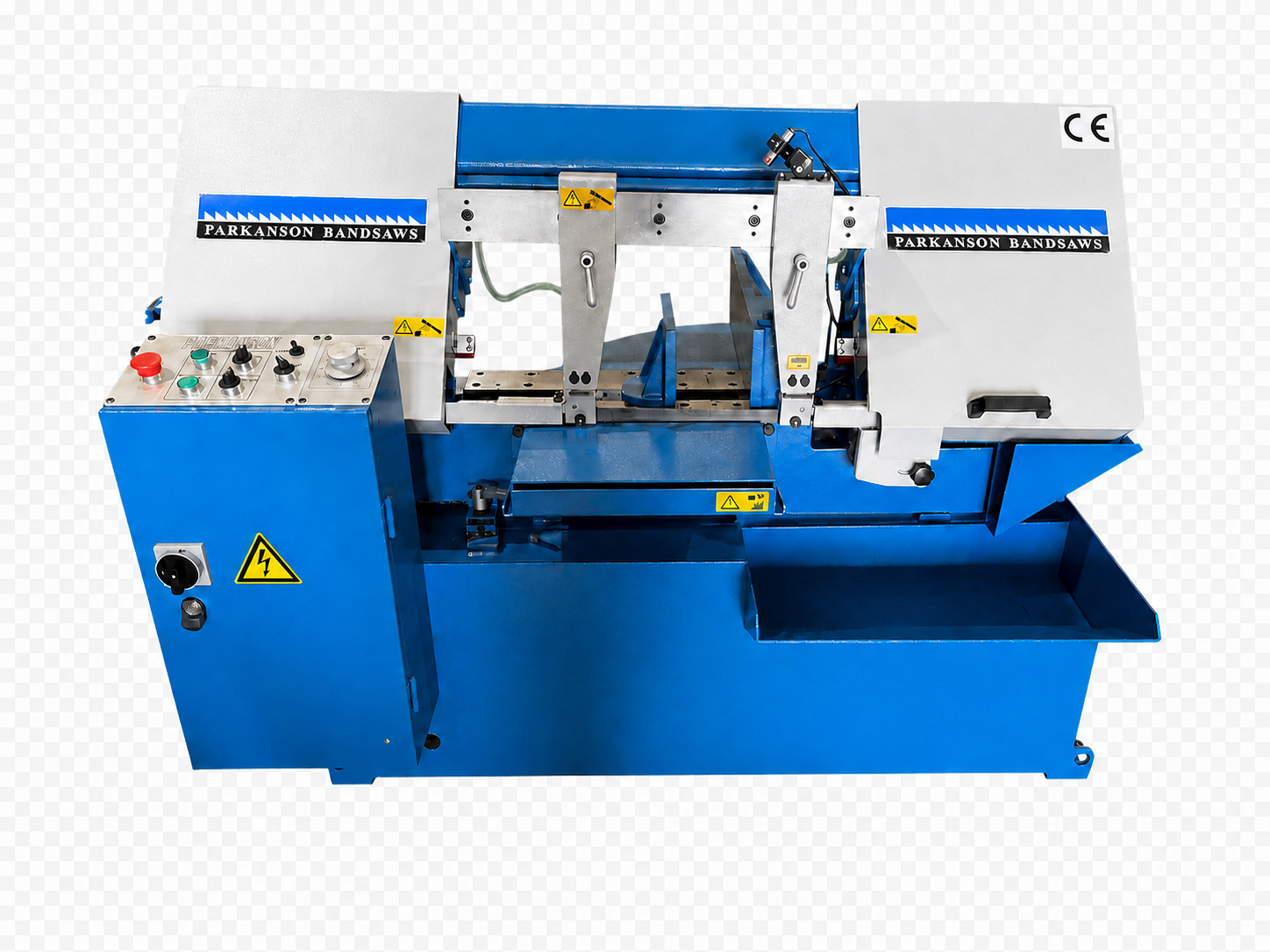

The Parkanson PK410SAM Metal Cutting Bandsaw is a mitre cutting bandsaw which is ideal for small to medium steel fabricators. With a capacity of 410 x 280mm. All Parkanson Bandsaws cut to their full capacity.

The PK410SAM is a Semi Automatic Machine. Its hydraulic vice gives a 30mm travel. The bow of the bandsaw swivels to 45 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of material to be cut.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:

– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the cutting angle is accurately set with a graduated scale.
– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.
– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.
– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time.
– Heavy duty blade tension with indicator.

SPECIFICATIONS:

– Cutting Capacity (90 degrees): Round: 280mm, Rect: 270 x 410mm
– Cutting Capacity (45 degrees): 220 x 250mm
– Blade Size: 3560 x 27 x 0.9mm
– Blade Speed: 35, 55, 75, 90mpm
– Main Motor: 1.5kW
– Working Height: 650mm
– Weight: 750kg
– Dimensions (LxWxH): 980 x 1800 x 1350mm

A$5,950.00 (ex GST)

TW300 METAL CUTTING BANDSAW – DOUBLE MITRE – 310 X 210MM CAPACITY – 3PH

The TW300 is a robust horizontal metal cutting bandsaw designed for workshops, fabrication shops and general engineering applications.

Featuring double mitre cutting from +45° left through to -60° right, hydraulic-controlled bow descent and a generous cutting capacity, the TW300 is a versatile saw for cutting solid, round, square and rectangular material.

KEY FEATURES

• Double mitre cutting

• Mitre range: +45° left to -60° right

• Hydraulic cylinder for controlled bow descent

• Blade tension gauge

• Integrated coolant system

• Heavy-duty machine stand

• Two cutting speeds – 45 and 90 MPM

• 1.5kW motor

• 400V, 3 phase operation

• Suitable for round, square and rectangular material

• Optional roller conveyors available

• Optional length stop available

CUTTING CAPACITY

At 0°

• Rectangle: 310 x 210mm

• Round: 255mm

• Square: 210mm

At 45° Right

• Rectangle: 220 x 200mm

• Round: 220mm

• Square: 210mm

At 60° Right

• Rectangle: 135 x 135mm

• Round: 135mm

• Square: 135mm

At 45° Left

• Rectangle: 170 x 170mm

• Round: 170mm

• Square: 170mm

SPECIFICATIONS

Model: TW300
Blade Size: 2750 x 27 x 0.9mm
Motor: 1.5kW
Power Supply: 400V, 50Hz, 3 Phase
Cutting Speeds: 45 / 90 MPM
Mitre Range: +45° Left to -60° Right
Net Weight: 335kg
Gross Weight: 371kg
Shipping Size: 1720 x 730 x 1130mm

STANDARD FEATURES

• Cooling pump

• Machine stand

• Hydraulic cylinder

• Blade tension gauge

OPTIONAL

2 metre roller conveyors available with or without length stop.

IDEAL FOR

Metal fabrication, engineering workshops, maintenance departments, manufacturing, steel processing and general-purpose metal cutting.

WHY CHOOSE THE TW300?

The TW300 offers excellent versatility for workshops that regularly need to make both straight and angled cuts.

Its ability to mitre in both directions reduces the need to reposition longer or heavier material, while the hydraulic cylinder provides controlled blade descent for consistent cutting.

Competitive freight rates available Australia-wide.

A$18,950.00 (ex GST)

The Geka Bendicrop 50 Punch And Shear is a single cylinder ironworker with five work stations. Thanks to the blade holder’s vertical movement, the Geka Bendicrop 50 Punch And Shear has excellent performance in all its five work stations:

– Punching
– Notching
– Shear for flat bars
– Angle cutting
– Cutting of round and square bars
– Permanent bending station

Features:
– The Bendicrop 50 is fitted with an anti torque system, thus reducing deformation when shearing flat bars.
– Also fitted is a touch and cut length stop which is delivered with two V-shaped bending dies of 40 and 70 mm .
– Permanent bending station complying with CE standards.
– Goose neck die-holder for punching of D and E sections on legs and webs. Quick tool change
– Angle shearing without loss of material. Wide range of openings for B and A.
– Flat bar and plate shearing system with minimum deformation F mitre shearing up to 45º.
– Rectangular notching with table. Also suitable for tube notching, rectangular notching, etc…
– Anti torque system for flat bar shearing without deformation.

Specifications:
Shearing flat bars: 350 x 10 mm, (5º) 350 x 15 mm
Punching: (b) Ø 31 x 12 mm, (a) Ø 28 x 13 mm
Shear of angle section L at 90º: 80 x 80 x 8 mm
Bending: 100 x 10 mm
Notching: 90 x 42 x 10 mm

The GEKA Hydracrop is a powerful and versatile two-cylinder hydraulic ironworker designed for busy fabrication and metalworking workshops.

Available in two models—the Hydracrop 80S and Hydracrop 110S—both machines feature five workstations and allow two operators to work simultaneously, helping increase workshop productivity.

Which model is right for you?

Hydracrop 80S – 80-ton capacity

A versatile all-rounder suited to general fabrication, maintenance workshops and regular steel-processing work. It offers excellent capacity while maintaining a practical workshop footprint.

Key capacities:

– Punching power: 80 tonnes
– Maximum punching capacity: Ø40 × 14 mm or Ø24 × 24 mm
– Angle cutting: 130 × 130 × 13 mm
– Flat-bar shearing: 450 × 15 mm or 300 × 20 mm
– Round-bar cutting: Ø45 mm
– Square-bar cutting: 45 mm
– Rectangular notching: 90 × 52 × 12 mm
– Punching throat: 300 mm

Hydracrop 110S – 110-ton capacity

The heavier-duty option for workshops processing larger sections, thicker plate and higher production volumes. Its increased punching and shearing capacity makes it ideal for demanding structural-steel and heavy-fabrication applications.

Key capacities:

– Punching power: 110 tonnes
– Maximum punching capacity: Ø40 × 20 mm or Ø28 × 28 mm
– Angle cutting: 152 × 152 × 13 mm
– Flat-bar shearing: 600 × 15 mm or 400 × 20 mm
– Round-bar cutting: Ø50 mm
– Square-bar cutting: 50 mm
– Rectangular notching: 90 × 52 × 13 mm
– Punching throat: 300 mm

Five versatile workstations

Both models are supplied with five workstations:

– Punching
– Angle shearing
– Flat-bar shearing
– Round- and square-bar cutting
– Rectangular notching

Standard features

– Two independent hydraulic cylinders
– Two workstations can be operated simultaneously
– Quick-change punch system
– Progressive cutting for minimal material distortion
– Flat-bar shearing table with adjustable guides
– Precision punching and notching tables with X and Y measuring stops
– Powerful hydraulic system for fast production
– Reduced-pressure, slow-speed approach for greater operator control
– Wide selection of optional tooling and accessories

Optional accessories

– One-metre “Touch & Cut” length stop with fine adjustment
– Work light for improved visibility around cutting areas
– Set of 10 round punches and dies
– Additional specialised tooling available on request

GEKA ironworkers are manufactured in the European Union and are renowned worldwide for their strength, accuracy, durability and versatility.

Not sure which model suits your requirements? Contact Capital Equipment Machinery Sales to discuss your material sizes, workload and preferred tooling.

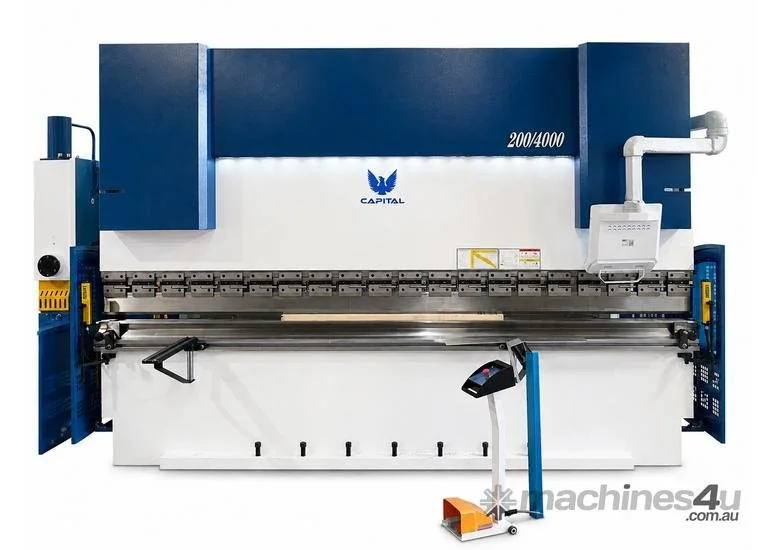

Hydraulic NC Press Brakes

Available in many different widths and tonnage

From 30t/1600mm - 600t/7000mm

- Multi-axis NC controllers( E315PS/DA41T/ESAS630/CT8P)
- High-pressure Rexroth hydraulic system
- Siemens high-efficiency servo motors
- Low-noise Sunny gear pumps
- Precision ball screw backgauge
- Schneider electrical components durability
- Manual/motorized crowning compensation
- CE-certified laser safety systems

The Femco T series CNC Horizontal Borer is a leader in moving column CNC horizontal borers. Available in 3 sizes T1, T2 and T3

For further information or pricing contact us to discuss matching the right machine to your needs.

SPECIFICATIONS:

CONTROL
Control Axis: 5
Simultaneous Controlled Axis: 4

HEADSTOCK
Spindle Motor (Continuous/30 min Rated): FANUC 22 / 7000i, 30/37 kW
Spindle Stroke (W): 500 mm
Spindle Diameter: Ø 110 mm
Taper: ISO 50
Tool Shank: BT / BBT 50
Pull Stud: MAS II (I) / ISO / CAT / DIN
Milling Spindle Diameter: 225 mm
Speed Range-Low: 8 - 454 rpm
Speed Range-High: 455 - 2500 rpm

TABLE (B-AXIS)
T2/T3/T4 Size: 1440 x 1600 mm
T-Slot Size: 24 mm
T2/T3/T4 Maximum Load: 8000 kg
Rapid Rotation: 1 rpm
Drive Motor: FANUC aiF22 / 3000, 4.0 kW

X-AXIS
Drive Motor: FANUC aiF40 / 3000, 6.0 kW
T2 Travel: 2000 mm
T3 Travel: 3000mm
T4 Travel: 4000mm

Y-AXIS
Drive Motor: FANUC ?iF30 / 4000B, 7.0 kW
T2/T3/T4 Travel: 2050mm

Z-AXIS
Drive Motor: FANUC ?iF40 / 3000, 6.0 kW
T2/T3/T4 Travel: 1500 mm

W-AXIS
Drive Motor: FANUC ?iF22 / 3000, 4.0 kW
T2/T3/T4 Travel: 500 mm
FEED RATE: 0-4000 mm/min

DIMENSIONS (No Chip Conveyor)
T2 Floor Space (W x L x H): 7100 x 7060 x 4100mm
T3 Floor Space (W x L x H): 7100 x 7800 x 4100mm
T4 Floor Space (W x L x H): 7100 x 9100 x 4100mm
T2 Net Weight: 24,000 kg
T3 Net Weight: 26,000kg
T4 Net Weight: 27,000kg

MACHINE FEATURES:
STANDARD ACCESSORIES
X/Y/Z-axis Fagor Linear Scales
Belt Type Chip Conveyor & Cart
Operator platform
B-axis with Dual Worm Gear Drive
B-axis Fagor Encoder
Low Pressure Coolant Circulation System
Built-in Work Light
Spindle Cooling System
Pull Studs MAS 45 or 60 Degree
Spindle Extension Sleeve 250L

AUTOMATIC TOOL CHANGER (ATC)---OPTIONAL
Tool Storage Capacity: 60 tools
Max. Tool Diameter (Adjacent Pods Full): 125 mm
Max. Tool Diameter (Adjacent Pods Empty): 245 mm
Max. Tool Length: 400 mm
Max. Tool Weight: 25 Kg
Tool To Tool Exchange Time: 13 sec
Tool Selection Method: bi direction

The Femco R series CNC Horizontal Borer is a leader in fixed column CNC horizontal borers. Available in 3 sizes R1, R2 and R3

For further information or pricing contact us to discuss matching the right machine to your needs.

SPECIFICATIONS:

CONTROL
Control Axis: 5
Simultaneous Controlled Axis: 4

HEADSTOCK
Spindle Motor (Continuous/30 min Rated): FANUC ?22 / 7000i, 30/37 kW
Spindle Stroke (W): 500 mm
Spindle Diameter: Ø 110 mm
Taper: ISO 50
Tool Shank: BT / BBT 50
Pull Stud: MAS II (I) / ISO / CAT / DIN
Milling Spindle Diameter: 225 mm
Speed Range-Low: 8 - 454 rpm
Speed Range-High: 455 - 2500 rpm

TABLE (B-AXIS)
R1 Size: 1120 x 1250 mm
R2/R3 Size: 1440 x 1600mm
T-Slot Size: 24 mm
R1 Maximum Load: 4000 kg
R2/R3 Maximum Load: 6300kg
Rapid Rotation: 1 rpm
Drive Motor: FANUC ?iF22 / 3000, 4.0 kW

X-AXIS
Drive Motor: FANUC ?iF40 / 3000, 6.0 kW
R1 Travel: 1400 mm
R2 Travel: 2000mm
R3 Travel: 3000mm

Y-AXIS
Drive Motor: FANUC ?iF30 / 4000B, 7.0 kW
R1 Travel: 1390mm
R2/R3 Travel: 1780mm

Z-AXIS
Drive Motor: FANUC ?iF40 / 3000, 6.0 kW
R1 Travel: 1050 mm
R2/R3 Travel: 1650mm

W-AXIS
Drive Motor: FANUC ?iF22 / 3000, 4.0 kW
R1/R2/R3 Travel: 500 mm
FEED RATE: 0-4000 mm/min

DIMENSIONS (No Chip Conveyor)
R1 Floor Space (W x L x H): 6600 x 5700 x 3370 mm
R2/R3 Floor Space (W x L x H): 7700 x 6200 x 3800
R1 Net Weight: 16,000 kg
R2/R3 Net Weight: 19,000kg

MACHINE FEATURES:
STANDARD ACCESSORIES
X/Y/Z-axis Fagor Linear Scales
Belt Type Chip Conveyor & Cart
Operator platform
B-axis with Dual Worm Gear Drive
B-axis Fagor Encoder
Low Pressure Coolant Circulation System
Built-in Work Light
Spindle Cooling System
Pull Studs MAS 45 or 60 Degree
Spindle Extension Sleeve 250L

AUTOMATIC TOOL CHANGER (ATC)---OPTIONAL
Tool Storage Capacity: 60 tools
Max. Tool Diameter (Adjacent Pods Full): 125 mm
Max. Tool Diameter (Adjacent Pods Empty): 245 mm
Max. Tool Length: 400 mm
Max. Tool Weight: 25 Kg
Tool To Tool Exchange Time: 13 sec
Tool Selection Method: bi direction

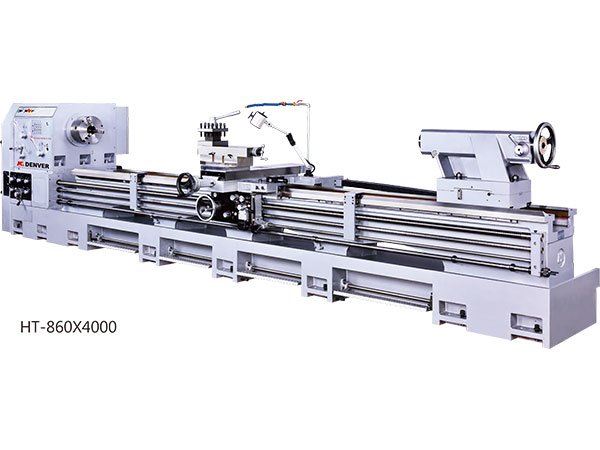

This machine is designed for turning and machining large workpieces and steel bar stock. It is well suited to demanding industrial applications, including oil and gas pipeline production, aerospace manufacturing and heavy-duty shaft machining.

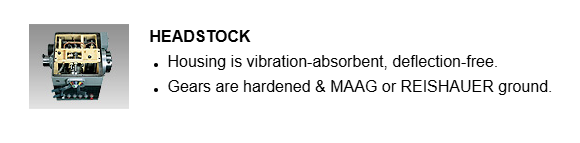

Spindle and Headstock
-The spindle is available with either a 105 mm (4 in) or 152 mm (6 in) bore and provides 12 spindle speeds. A turbine-type speed-change mechanism helps prevent gear jumping, while the headstock is supported at three points to provide excellent rigidity and stability.

-Models with a spindle bore of 152 mm (6 in) or larger are equipped with an adjustable electromagnetic brake. This allows the braking response to be adapted to different workpiece materials and spindle speeds.

-The gears and shafts are manufactured from high-grade alloy steel and supported by quality NSK bearings, providing durable cutting performance and reduced operating noise.

-A sealed oil-bath lubrication system uses a mechanical pump to provide forced oil circulation, ensuring consistent and effective lubrication throughout the headstock.
The headstock shown is equipped with a 152 mm (6 in) spindle bore and a 12-speed spindle system.

Base
The machine bed is manufactured from high-strength Meehanite cast iron and carefully stabilised to maintain alignment and machining accuracy. The bedways are induction-hardened and precision-ground for excellent wear resistance and long service life.
The one-piece cast base provides superior rigidity and stability, supporting greater machining capacity under demanding operating conditions.

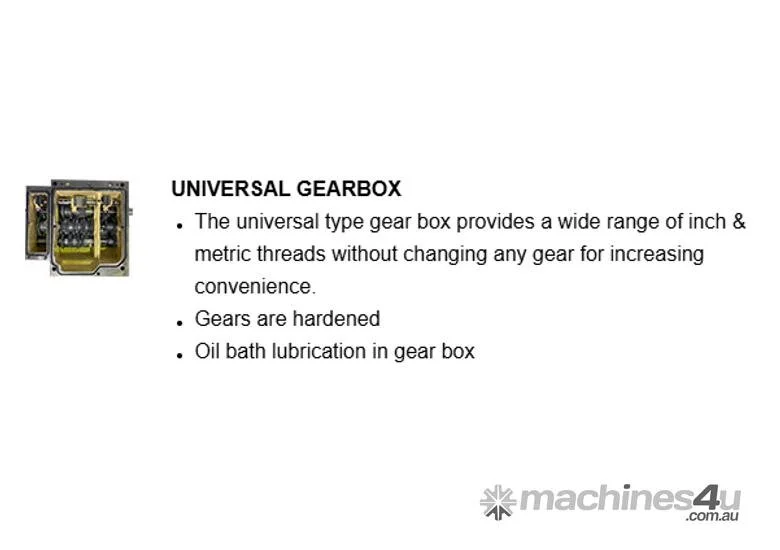

Gearbox
The quick-change universal gearbox supports metric, imperial, diametrical-pitch (DP), module-pitch (MP) and multiple-start thread cutting without requiring change gears. Its broad threading range and straightforward controls improve operating efficiency and productivity.

Tailstock
The tailstock features a two-stage feed mechanism and a saddle-assisted movement system, allowing the tailstock body to travel smoothly along the bed with minimal operator effort.

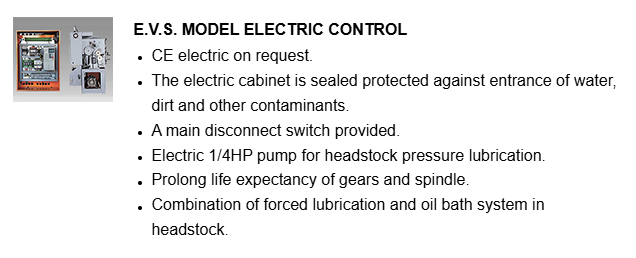

Electrical System
The machine is equipped with a 20 HP motor, a two-stage safety start-up system and overload protection that automatically disconnects the power supply if an unsafe load is detected.

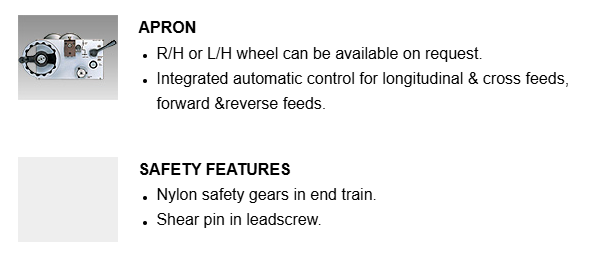

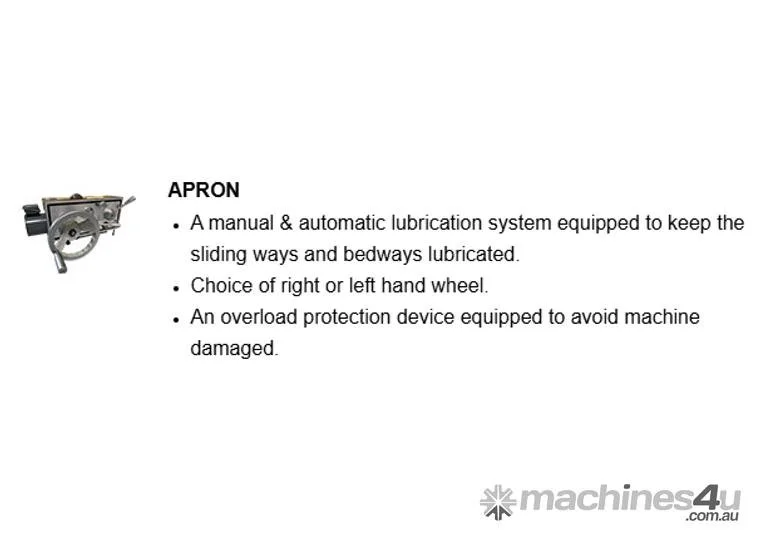

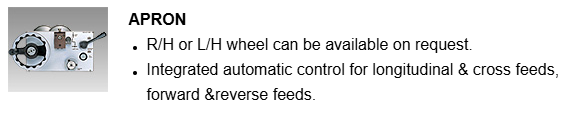

Apron
The apron is equipped with rapid traverse, forward and reverse movement, and an integrated safety mechanism. A sealed oil-bath system provides automatic lubrication, while rapid cross-feed improves operating efficiency.

Saddle
The saddle surfaces receive an anti-friction treatment and are supplied with regular oil lubrication, reducing wear and ensuring smooth, durable operation.

Castings
The principal structural components, including the base, headstock, saddle and tailstock, are manufactured from high-quality FC-30 cast iron. These components are annealed to relieve internal stresses, improve dimensional stability and minimise deformation.

Precision Treatment
Critical components—including the bedways, spindle, saddle, cross-slide dovetail surfaces, top slide and tailstock quill—are treated using high-frequency hardening to improve surface hardness, wear resistance and service life.

Capacity
(HT-860) Swing over bed: 860 mm
(HT-960) Swing over bed: 960 mm
(HT-1120) Swing over bed: 1120 mm
(HT-1220) Swing over bed: 1220 mm
(HT-860) Swing over cross slide: 540 mm
(HT-960) Swing over cross slide: 640 mm
(HT-1120) Swing over cross slide: 800 mm
(HT-1220) Swing over cross slide: 900 mm
Distance between centres: 1000/1500/2000/3000/4000/5000/6000/7000 mm

Bed
(HT-860) Swing over gap: 1200 mm
(HT-960) Swing over gap: 1300 mm
(HT-1120) Swing over gap: 1460 mm
(HT-1220) Swing over gap: 1560 mm
Width of Bed: 510 mm (20 in)
Length of gap (spindle end face): 240 mm
(1000) Length of bed: 3300 mm
(1500) Length of bed: 3800 mm
(2000) Length of bed: 4300 mm
(3000) Length of bed: 5300 mm
(4000) Length of bed: 6300 mm
(5000/6000/7000) Length of bed: 7300/8300/9300 mm

Headstock
Spindle bore diameter: 105 mm (4 in); optional 152 mm (6 in)
Number of spindle speeds: HT-860/960/1120: 12 steps; HT-1220: 16 steps
Range of spindle speeds: HT-860: 23-1300 rpm; HT-960/1120: 16-810 rpm; HT-1220: 4-420 rpm
Spindle nose: HT-860: A2-8; HT-960/1120/1220: A2-11

Carriage
Width of Carriage: 660 mm
Cross slide travel: 510 mm
Top slide travel (Compound Slide): 370 mm
Maximum tool shank size: 32 x 32 mm

Tailstock
Diameter of barrel: 125 mm
Travel of barrel: 300 mm
Taper of barrel: MT6

Threads
Lead screw diameter & pitch: 45 mm diameter x 12 mm pitch
Range of metric pitches: 0.8-14 mm (65)
Range of imperial pitches: 2-28 TPI (36)
Range of diametrical pitches: 4-56 DP (36)
Range of module pitches: 0.5-7 MP (22)

Feeds
Feed rod diameter: 32 mm
Range of longitudinal Feeds: 0.050-0.70 mm/rev
Range of cross Feeds: 0.025-0.35 mm/rev

Motor
Main spindle Motor: 15 HP; optional 20 HP (6 in spindle-bore models)
Coolant pump Motor: 1/8 HP
Rapid Motor: 1/4 HP

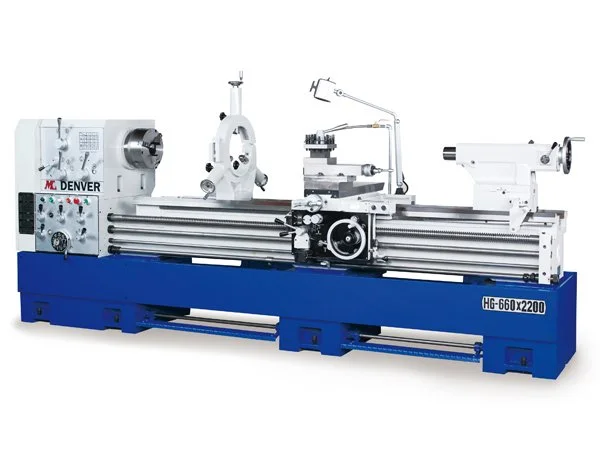

Denver's HG series lathes are designed for demanding heavy-duty machining applications. It combines straightforward operation with excellent rigidity, stability and load-bearing capacity, making it ideal for the heavy turning of moulds, gears, wheels, shafts, spindles and similar components.

Base
The rigid base is manufactured from high-quality Meehanite cast iron for heavy-duty cutting. Its robust construction provides increased load capacity and greater stability during machining.

Compound Rest
A four-point clamping system provides excellent compound-rest stability. The wide toolpost and top slide are induction-hardened and precision-ground to ensure accuracy and a long service life.

Spindle and Headstock
The headstock provides 12 spindle speeds, while the spindle is supported at three points by precision bearings. The gears and spindle are manufactured from high-quality alloy steel, heat-treated and precision-ground for superior hardness, strength and durability.
The spindle is available with either an 80 mm or 105 mm bore.

Gearbox
The metric and imperial gearbox supports metric, imperial, diametrical-pitch (DP), module-pitch (MP) and multiple-start thread cutting without requiring change gears. Its wide threading range and straightforward operation help improve productivity.
Imperial threading is available down to 2 TPI, providing a broader threading range and greater operating flexibility than many comparable lathes.

Carriage and Saddle
The bedway contact surfaces are lined with Turcite-B to reduce friction and wear. The dovetail slideway surfaces are induction-hardened and precision-ground to maintain accuracy and provide a long service life.

Apron
A forced-lubrication system ensures that the slideways receive consistent lubrication, helping maintain turning accuracy while reducing wear.
An integrated safety mechanism helps prevent collisions during operation.

Cross-Slide Screw
The cross-slide screw is supported at two points, providing the strength and stability required for heavy-duty turning.

Tailstock
A two-stage tailstock clamping system improves stability during heavy turning and drilling operations.
A two-stage feed mechanism provides greater control and easier operation.

Capacity
(HG-660) Swing over bed: 660mm
(HG-760) Swing over bed: 760mm
(HG-800) Swing over bed: 800mm
(HG-840) Swing over bed: 840mm

(HG-660) Swing over cross slide: 400mm
(HG-760) Swing over cross slide: 500mm
(HG-800) Swing over cross slide: 540mm
(HG-840) Swing over cross slide: 580mm

(HG-660) Swing over gap: 930mm
(HG-760) Swing over gap: 1030 mm
(HG-800) Swing over gap: 107mm
(HG-840) Swing over gap: 1110mm
Distance between centres: 1170/1670/2170/3170/4170/5000mm

Bed
Width of Bed: 420mm
Width of gap (spindle end face): 305mm
(1200) Length of bed: 2600mm
(1700) Length of bed: 3100mm
(2200) Length of bed: 3600mm
(3200) Length of bed: 4600mm
(4200) Length of bed: 5600mm
(5000) Length of bed: 6400mm

Headstock
Spindle bore diameter: 80mm; optional 105mm
Number of spindle speeds: 12 steps
Range of spindle speeds: 23-1300 rpm
Spindle nose: A1-8
Optional: A2-8 for 105 mm bore
Optional: D1-8, D2-8
Optional: A2-11 for 105 mm bore

Carriage
Width of Carriage: 670mm
Cross slide travel: 400mm
Top slide travel (compound slide): HG-660/800:150 mm
Top slide travel (compound slide): HG-760/840:240 mm
Tool shank: 25x25mm

Tailstock
Diameter of barrel: 80mm
Travel of barrel: 200mm
Taper of barrel: MT5

Threads
Lead screw diameter & pitch: 45mm diameter x 12mm pitch/1.77” diameter x 2 TPI
Range of metric pitches: 0.8-14 mm
Range of imperial pitches: 2-28 TPI
Range of diametrical pitches: 4-56 DP
Range of module pitches: 0.5-7 MP

Feeds
Feed rod diameter: 32mm
Range of longitudinal Feeds: 0.05-0.7 mm/rev
Range of cross Feeds: 0.025-0.35 mm/rev

Motor
Main spindle Motor: 10HP (optional 15HP)
Coolant pump Motor: 1/8HP

Denver LA Series lathes are Denvers small compact precision lathes. Available in the following sizes:
Swing: 460 & 560
Between Centres: 500, 750, 1000, 1500 & 2000mm

-One piece Meehamite casting machine base.
-Metric & inch gear box with full range of inch, metric, DP, MP threading and multiple threads, all function is reached without change gear.
- Apron enforced oil supply with safety device is used to avoid collision.
- Bed ways & face of compound rest have been ultra-frequency treated & ground with longer life.
- Cross way feeding guides screw: 2 points support for heavy cutting.
- Length safety foot brake.
- Dynamically balanced alloy spindle by 3 point support.
- The gears in headstock and spindle are hardened & precision ground.

Capacity
(LA-460) Swing over bed: 460mm
(LA-560) Swing over bed: 560mm
(LA-460) Swing over cross slide: 280mm
(LA-560) Swing over cross slide: 380mm
Distance between centres: 500/750/1000/1500/2000mm

Bed
(LA-460) Swing over gap: 680mm
(LA-560) Swing over gap: 780mm
Width of Bed: 317mm
Width of gap (spindle end face) 210mm
(500) Length of bed: 1490mm
(750) Length of bed: 1740mm
(1000) Length of bed: 1990mm
(1500) Length of bed: 2490mm
(2000)Length of bed: 2990mm

Headstock
Spindle bore diameter: ø52
Numbered of spindle speeds: 8 steps
Range of spindle speeds : 80-1400 rpm.
Spindle nose: ASA A1-6

Carriage
Width of Carriage: 485mm
Cross slide travel: 250mm
Top slide travel (Compound Slide): 125mm
Tool shank: 20x20mm

Tailstock
Diameter of barrel: Ø52
Travel of barrel: 140mm
Taper of barrel: MT4

Threads
Lead screw diameter & pitch: Dia 35mm/Pitch 6mm & Dia 1" x 4 T.P.I
Range of metric pitches: 0.2 - 14 ( 41Nos )
Range of imperial pitches: 2 - 56 T.P.I. (37Nos )
Range of diametrical pitches: 8-44 D.P. ( 21Nos )
Range of module pitches: 0.3-3.5 M.P. (18Nos)

Feeds
Feed rod diameter: 22mm
Range of longitudinal Feeds: 0.04 - 1.0 mm/rev
Range of cross Feeds: 0.02- 1 mm/rev

Motor
Main spindle Motor: 5HP (Optional 7.5 HP)
Coolant pump Motor: 1/8 HP

COMPLETE MACHINE-GUARDING AND SAFETY SOLUTIONS

Capital Equipment Machinery Sales supplies and installs a comprehensive range of machine guards, modular safety fencing and associated safety systems for workshops, manufacturing facilities, training organisations and industrial sites.

Our service covers the complete process—from the initial consultation and machine-risk assessment through to guard selection, supply, installation and final operational checks.

We assess the machine, its intended use, operator access requirements and identified hazards before recommending a guarding solution. This ensures the guard is practical for everyday operation while helping protect personnel from rotating components, moving machinery, swarf, coolant and other machine-related hazards.

Our machine-guarding range includes solutions for:

• Centre and production lathes
• Bench, pedestal and radial-arm drills
• Milling machines and machining equipment
• Bench, pedestal and surface grinders
• Horizontal and vertical boring machines
• Slotting and shaping machines
• Bandsaws, circular saws and cold saws
• Workshop presses and fabrication machinery
• Other specialised machine tools and industrial equipment

Available guarding solutions include:

• Lathe chuck and carriage guards
• Drill-chuck and spindle guards
• Milling-machine spindle guards
• Grinder wheel and spark guards
• Bandsaw and cutting-area guards
• Adjustable and interlocked machine guards
• Clear impact-resistant operator screens
• Sliding, hinged and lift-up guard designs
• Custom mounting brackets and support systems
• Modular perimeter fencing
• Interlocked access gates
• Safety switches and monitoring systems
• Light curtains
• Emergency-stop and machine-isolation solutions
• Custom guarding for unusual or modified machinery

Our guards are manufactured in Europe and are available in CE-compliant configurations. Each system is selected and installed with reference to the relevant Australian and New Zealand machinery-safety requirements, including applicable sections of the AS/NZS 4024 series.

Because every machine and workplace is different, the appropriate guarding arrangement is determined through a site-specific assessment. Where an off-the-shelf guard is unsuitable, we can develop a customised solution that provides the required protection while maintaining practical access for machine operation, adjustment, tooling changes and maintenance.

Our complete service can include:

• Initial consultation and site inspection
• Machine-specific hazard identification
• Risk assessment
• Guard and safety-system selection
• Custom design and modification
• Supply of guarding and safety components
• Mechanical and electrical installation
• Integration with existing machine controls
• Testing and operational verification
• Operator guidance and ongoing support

Modular guarding and fencing systems are also available for individual machines, automated production cells, robotic equipment and larger restricted-access areas. These systems can be configured with fixed panels, interlocked gates, viewing sections and additional electronic safety devices to suit the application.

Whether you require a replacement chuck guard for a single lathe or a complete safety-fencing and interlock system for an automated production area, Capital Equipment Machinery Sales can manage the project from assessment through to installation.

Contact us to arrange a machine-guarding consultation or site assessment.

TW150X Belt Grinder with Dust Collection – Heavy Duty

Powerful, reliable, and built for serious workshop use – the TW150X Belt Grinder is perfect for fabrication, metal finishing, and general grinding applications.
With a dual-speed system and integrated dust collection, this machine delivers clean, efficient, and professional results every time.

Key Features:
+ Built-in dust collection system
+ Dual-speed operation (36 / 18 m/s)
+ Large grinding surface for versatility
+ Heavy-duty industrial design
+ Smooth and powerful performance

Specifications:
Belt size: 150 × 2000 mm
Contact wheel: 150 × 240 mm
Work table: 150 × 500 mm
Main motor: 2.5 / 3.3 kW
Dust collector motor: 0.37 kW
Weight: 98 kg (Net)

Ideal for workshops, metal fabrication, knife making, and engineering work.

Bench Mount - A$7,550.00 (ex GST)

Integrated Stand - A$7,970.00 (ex GST)

The Brobo S350G Cold Saw is a heavy-duty industrial metal cutting saw designed for accurate and efficient cutting of steel profiles, solid material and tube.

Built for professional metalworking applications, the S350G combines proven Brobo construction with precision cutting, quick-action mitring and an integrated coolant system.

Ideal for engineering workshops, fabrication shops, maintenance facilities, manufacturing and general metalworking applications.

STANDARD FEATURES
* 350mm HSS cold saw blade
* Bench-mounted configuration / Integrated heavy-duty stand
* Quick-action mitre adjustment
* Mitre locking positions at 45° Left, 90° Straight and 45° Right
* Fully integrated coolant system
* Oil-immersed spindle and drive unit enclosed within the gearbox for smooth operation and reduced machine wear
* High Speed Steel (HSS) blade supplied for general-purpose cutting
* Suitable for ferrous solids, tubes and steel profiles
* Trigger Switch (DMT) machine activation
* Robust industrial construction

SPECIFICATIONS
* Model: Brobo Waldan S350G
* Model No.:9730020
* Blade Size: 350 x 2.5 x 40mm
* Voltage: 415V 3 Phase
* Operating Speeds: 21 & 42 RPM
* Configuration: Bench Mounted / Stand: Integrated
* Coolant System: Integrated
* Blade: HSS blade included

OPTIONAL EXTRAS AVAILABLE
* Dual Arm Single Manual Vice
* Pneumatic Air Vice Clamping
* Roller Conveyor with Steel Rollers
* LHS & RHS Conveyor Mounting Brackets
* Feed Roller Attachments
* Adjustable Conveyor Stands
* Broborule Length Stop Kits

WHY CHOOSE THE BROBO S350G?

The S350G is an excellent all-round workshop cold saw for businesses requiring accuracy, reliability and a high-quality cut finish.

Its 350mm blade capacity, two-speed operation, quick-action mitring and integrated coolant system make it a versatile choice for day-to-day steel cutting applications.

Competitive freight rates available Australia-wide.

Contact us today for availability, freight pricing, optional equipment or further technical information.

Bench Mount - A$7,970.00 (ex GST)

Integrated Stand - A$8,270.00 (ex GST)

The Brobo S400G Cold Saw is a heavy-duty industrial metal cutting saw designed for accurate and efficient cutting of steel profiles, solid material and tube.

Featuring a large 400mm blade capacity, the S400G is ideal for fabrication, engineering and manufacturing workshops requiring a robust cold saw capable of handling larger material while maintaining excellent cutting accuracy.

Designed for professional metalworking applications, the S400G produces a clean, burr-free milled finish, helping reduce the need for secondary finishing operations.

STANDARD FEATURES

* 400mm cold saw blade capacity
* Heavy-duty integrated stand
* High Speed Steel (HSS) blade included
* Quick-action mitre adjustment
* Mitre locking positions at 45° Left, 90° Straight and 45° Right
* Fully integrated coolant system
* Spindle and drive unit immersed in oil and enclosed within the gearbox housing for smooth operation and reduced machine wear
* Trigger Switch (DMT) machine activation
* Suitable for cutting ferrous solids, tubes and steel profiles
* Heavy-duty industrial construction

SPECIFICATIONS
* Model: Brobo Waldan S400G
* Configuration: Integrated Stand
* Blade Size: 400mm
* Power Supply: 415V 3 Phase
* Operating Speed: 2 Speed – 21/42 RPM
* Coolant System: Fully Integrated
* Blade: HSS Blade Included

OPTIONAL EXTRAS AVAILABLE
* Dual Arm Single Manual Vice
* Pneumatic Air Vice Clamping
* Roller Conveyor with Steel Rollers
* LHS & RHS Conveyor Mounting Brackets
* Feed Roller Attachments
* Adjustable Conveyor Stands
* Broborule Length Stop Kits

WHY CHOOSE THE BROBO S400G?

The Brobo S400G is an excellent choice for workshops requiring a heavy-duty cold saw with larger cutting capacity, accuracy and proven reliability.

The G Model design incorporates a heavy-duty cast-iron table, back fence, pivot block and rotary table. Combined with quick-action mitring, two-speed operation and an integrated coolant system, the S400G is well suited to regular production and fabrication work.

The bench-mounted configuration also provides flexibility for workshops wanting to install the saw onto an existing workbench or incorporate it into a customised material-handling and roller conveyor system.

The integrated stand provides a complete, purpose-built installation without the need to fabricate or provide a separate workbench.

Competitive freight rates available Australia-wide.

Contact us today for pricing, availability, freight, optional equipment or further technical information.

We offer machine breakdown services to help get you back up and running. We have technicians on the road full time and available 24/7 for call outs. Price displayed is per hour.

We offer one off servicing and scheduled maintenance programs for all of your workshop equipment.

From Bandsaws to Fibre Lasers and large CNC Machines we can keep your machines running and making you money.

Price displayed is per hour

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

PREMIUM METAL-CUTTING BANDSAW BLADES

Capital Equipment Machinery Sales supplies a range of premium metal-cutting bandsaw blades to suit the complete Parkanson bandsaw range.

Selecting the correct blade can make a significant difference to cutting speed, blade life, accuracy and surface finish. We can recommend the appropriate blade construction, width, thickness and tooth pitch based on your machine, material type, section size and production requirements.

Available blade types include:

• SGLB – versatile, general-purpose cutting across a wide range of materials
• Cobolt 8 – advanced universal blade offering excellent performance and blade life
• PROTECTOR II – high resistance to tooth stripping and breakage
• PROTECTOR II BN – coated blade for high-performance cutting of tubes and structural sections
• DUOS M42 – suitable for general workshop and light-duty bandsaw applications

Plus many more. If your requirements are more specialised contact our team and we will match the right blade to your needs.

Our blades are suitable for cutting:

• Solid round and square bar
• Pipe and tube
• RHS and SHS
• Angle, channel and flat bar
• I-beams and structural sections
• Mild steel
• Stainless steel
• Tool steel and alloy materials
• Non-ferrous metals, subject to blade selection

We supply blades for manual, semi-automatic, fully automatic, hitch-feed, mitre-cutting and twin-column bandsaws. Common blade sizes for Parkanson machines are stocked in Perth, helping reduce downtime when a replacement is required.

To ensure you receive the correct blade, provide us with:

• Bandsaw make and model
• Blade length, width and thickness
• Material type
• Solid or hollow material
• Maximum material dimensions
• Typical bundle or pack size
• Current tooth pitch, if known
• Cutting or blade-life issues you are experiencing

If the blade dimensions are unknown, our team can identify the appropriate blade from the machine model or help you measure the existing blade.

Capital Equipment Machinery Sales can also assist with blade selection, correct running-in procedures, blade tension, cutting speeds, feed settings, coolant selection and troubleshooting premature blade failure.

Whether you need a replacement blade for a workshop saw or regular blade supply for a high-volume production machine, we can recommend a cost-effective option suited to your application.

Contact us with your bandsaw and material details for pricing and availability.

The Nilfisk MH 4M 100/720 is a professional hot water pressure cleaner designed for commercial and industrial cleaning applications.

Operating from 240V single-phase 15A power, it delivers 1450 PSI pressure and up to 12L/min water flow, with hot water up to 90°C and steam up to 150°C.

KEY FEATURES
* 240V single-phase 15A
* 1450 PSI / 100 bar pressure
* Up to 12L/min water flow
* Hot water up to 90°C
* Steam up to 150°C
* Heavy-duty 1450 RPM pump
* Ceramic pistons
* Brass cylinder head
* Diesel fired boiler system
* Stainless steel boiler coil
* Flow-activated bypass system
* Robust steel frame and chassis
* Low fuel safety system
* Exhaust gas and flame sensors
* Service indicator
* Removable detergent tank
* Supplied with 10m high-pressure hose
* One year commercial warranty

SPECIFICATIONS
Model: Nilfisk MH 4M 100/720
Power Supply: 240V Single Phase 15A
Pump Pressure: 100 Bar / 1450 PSI
Water Flow: 12 / 11L/min QMAX/QIEC
Pump Speed: 1450 RPM
Hot Water Temperature: Up to 90°C
Steam Temperature: Up to 150°C
Power Consumption: 3.4kW
Fuel Tank: 15L
Power Cable: 5m
High Pressure Hose: 10m

IDEAL FOR
Workshops, automotive businesses, transport fleets, machinery cleaning, agricultural equipment, construction equipment and general industrial cleaning.

WHY CHOOSE THE MH 4M 100/720?
The MH 4M 100/720 combines the cleaning benefits of hot water and steam with the convenience of 240V single-phase power.

Its slow-running 1450 RPM pump, ceramic pistons and stainless steel boiler coil make it a durable option for regular commercial and industrial cleaning, particularly where grease, oil and stubborn grime need to be removed.

Competitive freight rates available Australia-wide.

Contact us for availability, freight, hoses, accessories and spare parts.

The Nilfisk MH 4M 200/960 is a heavy-duty hot water pressure cleaner designed for demanding commercial and industrial cleaning applications.

Delivering 2900 PSI pressure and up to 16L/min water flow, it combines powerful cleaning performance with hot water up to 90°C and steam up to 150°C – ideal for removing grease, oil and heavy grime.

KEY FEATURES
* 2900 PSI / 200 bar pump pressure
* Up to 16L/min water flow
* Hot water up to 90°C
* Steam cleaning up to 150°C
* Heavy-duty 1450 RPM pump
* 3 ceramic pistons
* Brass pump head
* Diesel fired boiler system
* Stainless steel boiler coil
* Flow-activated bypass system
* Robust steel frame and chassis
* Low fuel safety system
* Exhaust gas and flame sensors
* Service indicator
* Removable detergent tank
* Supplied with 15m high-pressure hose
* One year commercial warranty

SPECIFICATIONS
Model: Nilfisk MH 4M 200/960
Power Supply: 415V 3 Phase
Current: 12.3A
Pump Pressure: 200 Bar / 2900 PSI
Water Flow: 16 / 15L/min QMAX/QIEC
Pump Speed: 1450 RPM
Water Temperature: Up to 90°C
Steam Temperature: Up to 150°C
Fuel Tank: 15L
Power Consumption: 7.5kW
Power Cable: 5m
High Pressure Hose: 15m

IDEAL FOR
Workshops, transport fleets, heavy machinery, mining equipment, agricultural machinery, construction equipment, manufacturing facilities and other demanding industrial cleaning applications.

WHY CHOOSE THE MH 4M 200/960?
The MH 4M combines high pressure and strong water flow with the added cleaning power of hot water and steam.

Its slow-running 1450 RPM pump, ceramic pistons and stainless steel boiler coil make it well suited to regular industrial use where reliability and cleaning performance are essential.

Competitive freight rates available Australia-wide.

Contact us for availability, freight, hoses, accessories and spare parts.

The Kränzle K1050P is a quality German-made cold water pressure cleaner designed for home, vehicle and general property cleaning.

Delivering 130 bar (1880 PSI) operating pressure and 7.5 L/min water flow, the K1050P combines excellent cleaning performance with a compact and portable design.

Its heavy-duty brass pump head, quick-release connection system and Total Stop function provide the quality and durability Kränzle is known for in a compact machine designed for private users.

KEY FEATURES

• Made in Germany
• 130 bar / 1880 PSI operating pressure
• 160 bar maximum permissible pressure
• 7.5 L/min water flow
• Powerful 2.2kW motor
• 230V single-phase operation
• Heavy-duty brass pump head
• Quick-release D10 connection system
• Total Stop system
• Compact portable design
• Integrated accessory storage
• Convenient spray gun storage
• Carry handle with power cable storage
• 8 metre high-pressure hose
• Stainless steel lance
• 2 year domestic warranty

SPECIFICATIONS

Model: Kränzle K1050P
Type: Cold Water Pressure Cleaner
Power Supply: 230V / Single Phase / 9.6A
Operating Pressure: 130 Bar / 1880 PSI
Maximum Permissible Pressure: 160 Bar / 2320 PSI
Water Flow: 7.5 L/min / 450 L/hour
Motor Power Input: 2.2kW
Motor Power Output: 1.65kW
Motor Speed: 2800 RPM
Maximum Water Inlet Temperature: 60°C
High-Pressure Hose: 8 metres
Power Cable: 5 metres
Dimensions: 390 × 290 × 370mm
Weight: 21kg

SUPPLIED WITH

• 8 metre high-pressure hose
• Trigger gun with quick-release connection
• Stainless steel lance
• Flat-jet nozzle

IDEAL FOR

Cars, motorcycles, boats, patios, driveways, outdoor areas and general home and property cleaning.

WHY CHOOSE THE K1050P?

The K1050P brings Kränzle's renowned German engineering and brass pump construction into a compact, portable pressure cleaner. It's an excellent choice for home users wanting a quality pressure cleaner without stepping up to a larger commercial machine.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, hoses, Dirtkiller nozzles, accessories and spare parts.

The Kränzle KTH635-1 is a German-made industrial hot water pressure cleaner designed for demanding commercial and heavy-duty cleaning applications.

Operating from single-phase power, the KTH635-1 combines 1885 PSI operating pressure and 10.6 L/min water flow with diesel-heated hot water up to 90°C and steam up to 150°C.

This combination of pressure, water flow and heat makes the KTH635-1 particularly effective for removing grease, oil, heavy grime and encrusted dirt from machinery, vehicles and industrial equipment.

TWO OPTIONS AVAILABLE

KTH635-1 – Without Hose Reel

KTH635-1 – With 20m Hose Reel

KEY FEATURES

• Made in Germany
• Heavy-duty industrial hot water pressure cleaner
• Single-phase power
• 1885 PSI operating pressure
• 10.6 L/min water flow
• Hot water up to 90°C
• Steam cleaning up to 150°C
• Diesel-fired water heating system
• Slow-running 1400 RPM motor
• Continuously adjustable pressure
• Adjustable temperature control
• Heavy-duty brass pump head
• Integrated water tank
• Total Stop system with delayed motor cut-out
• Stainless steel lance
• 7.5 metre power cable
• Integrated cable reel
• 20 metre steel-reinforced high-pressure hose
• Available with or without hose reel
• 5 year commercial warranty – conditions apply

SPECIFICATIONS

Model: Kränzle KTH635-1
Type: Industrial Hot Water Pressure Cleaner
Power Supply: Single Phase
Motor Power: 2.3kW
Operating Pressure: 1885 PSI / Approx. 130 Bar
Water Flow: 10.6 L/min / 636 L/hour
Motor Speed: 1400 RPM
Hot Water Temperature: Up to 90°C
Steam Temperature: Up to 150°C
Heating System: Diesel Fired
Pump Head: Brass
Power Cable: 7.5 metres
High-Pressure Hose: 20 metres
Hose Reel: Optional
Dimensions: 800 × 1200 × 1050mm
Weight: Approx. 200kg
Country of Manufacture: Germany

SUPPLIED WITH

• 20 metre steel-reinforced high-pressure hose
• High-pressure trigger gun
• Stainless steel lance
• Integrated cable reel

Hose reel supplied when the hose reel configuration is selected.

IDEAL FOR

Heavy machinery, transport companies, truck and fleet cleaning, workshops, manufacturing facilities, mining support, agricultural equipment, construction machinery and demanding industrial cleaning applications.

WHY CHOOSE THE KTH635-1?

The KTH635-1 combines Kränzle's heavy-duty German construction with the cleaning power of hot water and steam. Its single-phase power supply makes it particularly attractive where three-phase power is unavailable, while the 1400 RPM motor, brass pump head and 20 metre high-pressure hose make it well suited to regular industrial cleaning.

Choose the standard configuration or the hose reel model for easier handling and storage of the 20 metre high-pressure hose.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, configuration pricing, freight, high-pressure hoses, lances, nozzles, detergents, accessories and spare parts.

PRICE RANGE

From $11,950.00 to $14,795.00 inc GST depending on configuration.

The Kränzle KTH895-1 is a premium German-made three-phase hot water pressure cleaner designed for demanding industrial and commercial cleaning applications.

Delivering 2830 PSI operating pressure and approximately 14.9 L/min water flow, the KTH895-1 combines high-pressure cleaning with diesel-heated hot water and steam for effective removal of grease, oil and heavily encrusted dirt.

Its slow-running 1400 RPM motor, heavy-duty brass pump head and comprehensive safety systems make it an excellent choice for regular industrial cleaning of machinery, trucks and equipment.

FOUR CONFIGURATIONS AVAILABLE

Option 1 – Standard KTH895-1
Without hose reel
Standard boiler coil

Option 2 – KTH895-1 with Hose Reel
Integrated hose reel
20 metre high-pressure hose
Standard boiler coil

Option 3 – KTH895-1 with Stainless Steel Boiler Coil
Without hose reel
Optional Inox stainless steel boiler coil

Option 4 – KTH895-1 with Hose Reel & Stainless Steel Boiler Coil
Integrated hose reel
20 metre high-pressure hose
Optional Inox stainless steel boiler coil

KEY FEATURES

• Made in Germany
• Heavy-duty industrial hot water pressure cleaner
• Three-phase power
• 2830 PSI operating pressure
• Maximum pressure up to 3120 PSI
• Approximately 14.9 L/min water flow
• Heavy-duty 1400 RPM slow-running motor
• 5.5kW motor
• Brass pump head
• Ceramic-coated pump pistons
• Diesel-fired water heating
• Hot water and high-temperature steam cleaning
• Continuously adjustable pressure
• Adjustable temperature control
• High-pressure detergent application
• Total Stop system with delayed motor cut-out
• Dry-run protection
• Optical flame monitoring
• Low-fuel burner cut-out
• Water-flow monitoring
• Digital operating panel
• Built-in park brake
• 7.5 metre power cable with cable reel
• Available with or without integrated hose reel
• Optional Inox stainless steel boiler coil
• 5 year commercial warranty – conditions apply

SPECIFICATIONS

Model: Kränzle KTH895-1
Type: Industrial Hot Water Pressure Cleaner
Power Supply: 415V / Three Phase
Motor Power: 5.5kW
Motor Speed: 1400 RPM
Operating Pressure: 2830 PSI / Approx. 195 Bar
Maximum Pressure: 3120 PSI / Approx. 215 Bar
Water Flow: Approx. 14.9 L/min / 894 L/hour
Fuel Tank: 35 Litres
Water Tank: Approx. 12.4 Litres
Power Cable: 7.5 metres
High-Pressure Hose: Up to 20 metres depending on configuration
Pump Head: Brass
Dimensions: Approx. 1050 × 800 × 1000mm
Weight: Approx. 220kg
Country of Manufacture: Germany

SUPPLIED WITH

• High-pressure trigger gun with safety catch
• Stainless steel lance
• Flat-jet nozzle
• High-pressure hose
• Integrated power cable reel

20 metre high-pressure hose and integrated hose reel supplied when a hose reel configuration is selected.

IDEAL FOR

Mining operations, heavy machinery, earthmoving equipment, transport companies, trucks and trailers, agricultural machinery, workshops, manufacturing facilities, construction equipment, fleet maintenance and demanding industrial cleaning.

WHY CHOOSE THE KTH895-1?

The KTH895-1 combines high pressure, excellent water flow and hot-water cleaning with Kränzle's heavy-duty German construction. Its 1400 RPM motor, brass pump system and extensive machine protection features make it particularly well suited to regular industrial use, while four available configurations allow the machine to be tailored to the application.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, configuration pricing, freight, high-pressure hoses, lances, nozzles, detergents, accessories and spare parts.

The MARKATOR Flymarker Mini 120/45 — Made in Germany

The fifth generation of MARKATOR’s battery-operated handheld FlyMarker dot peen marking machines, engineered and manufactured in Germany to the highest industrial standards. With a large 120 x 45 mm marking area and 18V Lithium-Ion battery, the Flymarker Mini 120/45 is built for demanding general workshop and industrial marking applications.

Features:

– Marking area of 120 x 45 mm
– Weight: 3.2 kg
– 18V Lithium-Ion battery
– High-quality guidance system for maximum stability
– Integrated All-In-One control system
– User-friendly keyboard with integrated numeric keys
– Illuminated marking area for precision in low-light conditions
– Marks nearly all materials — from plastics to hardened steel (63 HRC)
– Latest processor technology for fast, responsive navigation
– Break-resistant glass fibre reinforced plastic housing
– Removable additional handle for tight workpiece clearances
– Available in numerous language versions

Options:

– Extra-strong magnet for deep markings
– Logo, test symbol and Data Matrix Code marking packages
– Integrated barcode scanner
– Column frame

The MARKATOR FlyMarker Mini 120/100 Station — Made in Germany

The FlyMarker Mini 120/100 Station is a fully electric benchtop dot peen marking system engineered and manufactured in Germany to the highest industrial standards. Designed for simplicity and reliability: Set up. Plug in. Start marking.

Equipped with a large 120 x 100 mm marking field, integrated All-In-One control, and an electromagnetic needle drive — no compressed air required — it is the ideal stationary marking partner for any workshop.

Stationary

– All-In-One system with integrated control, operated via USB keyboard or capacitive touch screen (optional)
– Fast, permanent marking at the click of a button
– Rocker lever for quick component change and height adjustment

Easy

– Electromagnetic needle drive — no compressed air required
– Clear, intuitive operating software
– Practical preview function before marking

Reliable

– High-quality guidance system for maximum stability
– Double-guided linear guides in X and Y for distortion-free, multi-line markings
– Powerful processor technology

Specifications:

– Marking area: 120 x 100 mm
– Character heights: 1.0 to 99.9 mm
– Fonts: DIN 1451-style single dot characters (5×7 or 9×13)
– Drive: Electromagnetic
– Characters: 0–9, A–Z, a–z, punctuation
– Interface: USB-A, Ethernet
– Height tolerance compensation: up to 5 mm
– Marking force: 30 adjustable settings

The MARKATOR Flymarker Mini 85/45 Plus — Made in Germany

The newest model in the FlyMarker Mini product line, the 85/45 Plus is a battery-operated handheld dot peen marking machine engineered and manufactured in Germany to the highest industrial standards. With an expanded 85 x 45 mm marking area and an 18V Lithium-Ion battery, it delivers greater versatility without compromising portability.

Features:

– Marking area of 85 x 45 mm
– Weight: 3.1 kg
– 18V Lithium-Ion battery
– High-quality guidance system for maximum stability
– Integrated All-In-One control system
– User-friendly keyboard with integrated numeric keys
– Illuminated marking area for precision in low-light conditions
– Marks nearly all materials — from plastics to hardened steel (63 HRC)
– Latest processor technology for fast, responsive navigation
– Break-resistant glass fibre reinforced plastic housing
– Removable additional handle for tight workpiece clearances
– Available in numerous language versions

Options:

– Extra-strong magnet for deep markings
– Logo, test symbol and Data Matrix Code marking packages
– Integrated barcode scanner
– Column frame

The MARKATOR Flymarker Mini — Made in Germany

The fourth generation of MARKATOR's proven battery-operated handheld FlyMarker pin marking machines, engineered and manufactured in Germany to the highest industrial standards.

The Flymarker Mini is a compact pin marker featuring high-quality German construction, weighing just 2.7 kg, with user-friendly software and stable two-hand operation.

Features:

– Glass fibre reinforced housing — stronger than die cast aluminium
– Fully integrated high-resolution LCD display and keyboard
– Marking area of 65 mm x 30 mm
– Permanently marks plastic, aluminium, stainless steel and hardened steel
– Adjustable marking force and depth
– Marks characters, numbers, symbols, data matrix codes and logos

The Nilfisk SW250 is a professional manual walk-behind sweeper designed for fast and efficient cleaning of indoor and outdoor areas.

With a wide 920mm sweeping path, twin side brooms and a large 38 litre hopper, the SW250 can clean up to six times faster than using a traditional broom.

Completely manual with no batteries, fuel or electricity required, it's a simple and economical solution for workshops, warehouses, car parks and general commercial cleaning.

KEY FEATURES

• Manual operation – no battery, fuel or electricity required
• Wide 920mm sweeping path
• Twin side brooms
• 480mm main broom
• Large 38 litre debris hopper
• Up to 3,680m²/h theoretical productivity
• Built-in filter for improved dust control
• Direct-throw sweeping system
• Picks up dust, dirt, sand and general debris
• Suitable for indoor and outdoor use
• Large non-marking wheels
• Ergonomic soft-grip handle
• 3-position adjustable handle
• Rugged corrosion-proof frame
• Compact upright storage
• Simple, low-maintenance mechanical design
• 1 year commercial warranty

SPECIFICATIONS

Model: Nilfisk SW250
Type: Manual Walk-Behind Sweeper
Power Source: Manual
Sweeping Width: 920mm with twin side brooms
Sweeping Width with One Side Broom: 700mm
Main Broom: 480mm
Hopper Capacity: 38 Litres
Theoretical Productivity: Up to 3,680m²/h
Actual Productivity: Up to 1,840m²/h
Operating Weight: 20kg

SUPPLIED WITH

• Main broom
• 2 x side brooms
• Dust filter

IDEAL FOR

Warehouses, workshops, factories, car parks, service stations, schools, retail areas, pathways and general commercial floor cleaning.

WHY CHOOSE THE SW250?

The SW250 provides a fast and economical alternative to manual sweeping without the cost or maintenance of a powered machine. Its 920mm sweeping path, twin side brooms and 38 litre hopper make it ideal for quickly cleaning larger areas.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, replacement brushes, filters and accessories.

The Nilfisk SW750 is a professional battery-powered walk-behind sweeper designed for fast, efficient and virtually dust-free cleaning of commercial and industrial floor areas.

With a 720mm sweeping path, large 60 litre hopper and self-propelled operation, the SW750 makes cleaning larger areas faster and easier than manual sweeping. Its integrated vacuum and washable polyester filter help control dust, while the compact design allows easy cleaning around obstacles, along walls and into corners.

Battery and onboard charger included.

KEY FEATURES

• Battery-powered self-propelled sweeper
• 720mm sweeping width with side broom
• 500mm main broom
• 315mm side broom
• Large 60 litre debris hopper
• Up to 2,880m²/h theoretical productivity
• Approx. 1,730m²/h actual productivity
• Up to approximately 2 hours runtime on hard floors
• Integrated vacuum dust-control system
• Washable polyester filter
• Manual filter shaker
• Adjustable main and side brooms
• Easy-empty debris hopper
• Low 59 dB(A) sound level
• Non-marking wheels and skirts
• Suitable for indoor and outdoor use
• Optional carpet cleaning kit available
• Battery and onboard charger included
• 1 year commercial warranty

SPECIFICATIONS

Model: Nilfisk SW750
Type: Battery Walk-Behind Floor Sweeper
Power Source: 12V Battery
Battery: 12V 49Ah
Maximum Speed: 4km/h
Main Broom Width: 500mm
Side Broom Diameter: 315mm
Sweeping Width with Side Broom: 720mm
Hopper Capacity: 60 Litres
Theoretical Productivity: 2,880m²/h
Actual Productivity: Approx. 1,730m²/h
Sound Pressure Level: 59 dB(A)
Maximum Climbing Rate: 20%
Dimensions: 998 × 800 × 1100mm
Operating Weight: 68kg

SUPPLIED WITH

• 12V battery
• Onboard battery charger
• 500mm main broom
• 315mm side broom
• Washable polyester filter

IDEAL FOR

Warehouses, workshops, factories, car parks, service stations, retail stores, schools, showrooms, loading areas and general commercial floor cleaning.

WHY CHOOSE THE SW750?

The SW750 is an excellent step up from a manual sweeper for larger areas. Its self-propelled operation reduces operator effort, while the 720mm sweeping path, 60 litre hopper and integrated dust-control system allow large floor areas to be cleaned quickly and efficiently.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, replacement brooms, filters, batteries, accessories and spare parts.

The Nilfisk Viper DS350 is a heavy-duty dual-speed single disc floor machine designed for professional scrubbing, cleaning and floor maintenance.

Featuring a 432mm working width and selectable 175/350 RPM speeds, the DS350 provides the versatility to handle demanding floor scrubbing as well as higher-speed buffing and maintenance applications.

Its robust aluminium base, soft-start system and well-balanced ergonomic design make it a durable and easy-to-use machine for professional floor cleaning.

KEY FEATURES

• Dual-speed operation – 175 / 350 RPM
• 432mm cleaning width
• Suitable for scrubbing and buffing
• Powerful 1500 / 1800W motor
• 10 litre solution tank included
• 432mm scrub brush included
• Pad holder included
• Soft-start system
• Automatic brush installation
• Adjustable ergonomic handle
• Automatic safety lock when handle is upright
• Robust aluminium base
• Low-noise drive system
• Large rear wheels for easy transport
• Well-balanced and easy to manoeuvre
• 10 metre power cable
• IPX4 protection
• 1 year commercial warranty

SPECIFICATIONS

Model: Nilfisk Viper DS350
Type: Dual Speed Single Disc Floor Machine
Voltage: 220–240V
Frequency: 50Hz
Power Consumption: 1500 / 1800W
Cleaning Width: 432mm
Brush Diameter: 432mm
Pad Speed: 175 / 350 RPM
Solution Tank Capacity: 10 Litres
Power Cable: 10 metres
Protection Class: IPX4
Dimensions: 1170 × 510 × 420mm
Net Weight: 39.9kg

SUPPLIED WITH

• 10 litre solution tank
• 432mm scrub brush
• Pad holder

IDEAL FOR

Commercial buildings, schools, shopping centres, hotels, restaurants, hospitality venues, workshops, exhibition centres, cleaning contractors and general hard-floor maintenance.

WHY CHOOSE THE VIPER DS350?

The DS350 gives professional cleaners the flexibility of two operating speeds in one machine. The lower 175 RPM setting is ideal for scrubbing and heavier floor cleaning, while the higher 350 RPM setting provides increased speed for buffing and routine floor maintenance.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, replacement brushes, pad holders, floor pads, cleaning chemicals, accessories and spare parts.

The Kränzle HD 7/122 TS is a compact professional cold water pressure cleaner designed for trades, workshops, maintenance and regular commercial cleaning applications.

Delivering adjustable operating pressure up to 120 bar and 7 L/min water flow, the HD 7/122 TS combines professional Kränzle build quality with a compact and highly portable design.

Its slow-running 1400 RPM 4-pole motor, Total Stop system and robust construction make it an excellent choice for users who need a reliable professional pressure cleaner that is easy to transport between jobs.

KEY FEATURES

• Made in Germany
• Professional cold water pressure cleaner
• Adjustable operating pressure from 30–120 bar
• Maximum permissible pressure of 135 bar
• 7 L/min / 420 L/hour water flow
• Slow-running 1400 RPM 4-pole motor
• 1.6kW power input
• Standard 230V single-phase operation
• Total Stop system
• Pressure regulation
• Quick-release D12 connection system
• Twist-Stop anti-twist system
• Direct water suction capability
• Large stainless steel pressure gauge
• Stainless steel carrying handle
• Compact and portable design
• 10 metre high-pressure hose
• 5 metre power cable

SPECIFICATIONS

Model: Kränzle HD 7/122 TS
Type: Professional Cold Water Pressure Cleaner
Power Supply: 230V / Single Phase / 7.5A
Operating Pressure: 30–120 Bar / 435–1740 PSI
Maximum Permissible Pressure: 135 Bar / 1958 PSI
Water Flow: 7 L/min / 420 L/hour
Motor Power Input: 1.6kW
Motor Power Output: 1.0kW
Motor Speed: 1400 RPM
Maximum Water Inlet Temperature: 60°C
Direct Suction Height: Up to 1.5 metres
High-Pressure Hose: 10 metres
Power Cable: 5 metres
Dimensions: 440 × 200 × 330mm
Weight: 23kg

SUPPLIED WITH

• 10 metre high-pressure hose
• Starlet 4 trigger gun with safety catch
• Lance with flat-jet nozzle
• Dirtkiller lance

IDEAL FOR

Tradespeople, workshops, maintenance departments, construction, vehicle and machinery cleaning, property maintenance and regular professional cleaning applications.

WHY CHOOSE THE HD 7/122 TS?

The HD 7/122 TS combines Kränzle's professional German engineering with a compact portable design. Its slow-running 1400 RPM motor, adjustable pressure and Total Stop system make it particularly well suited to regular professional use where durability and portability are important.

Competitive freight rates available Australia-wide.

Contact Capital Equipment Machinery Sales for availability, freight, high-pressure hoses, Dirtkiller nozzles, lances, accessories and spare parts.
