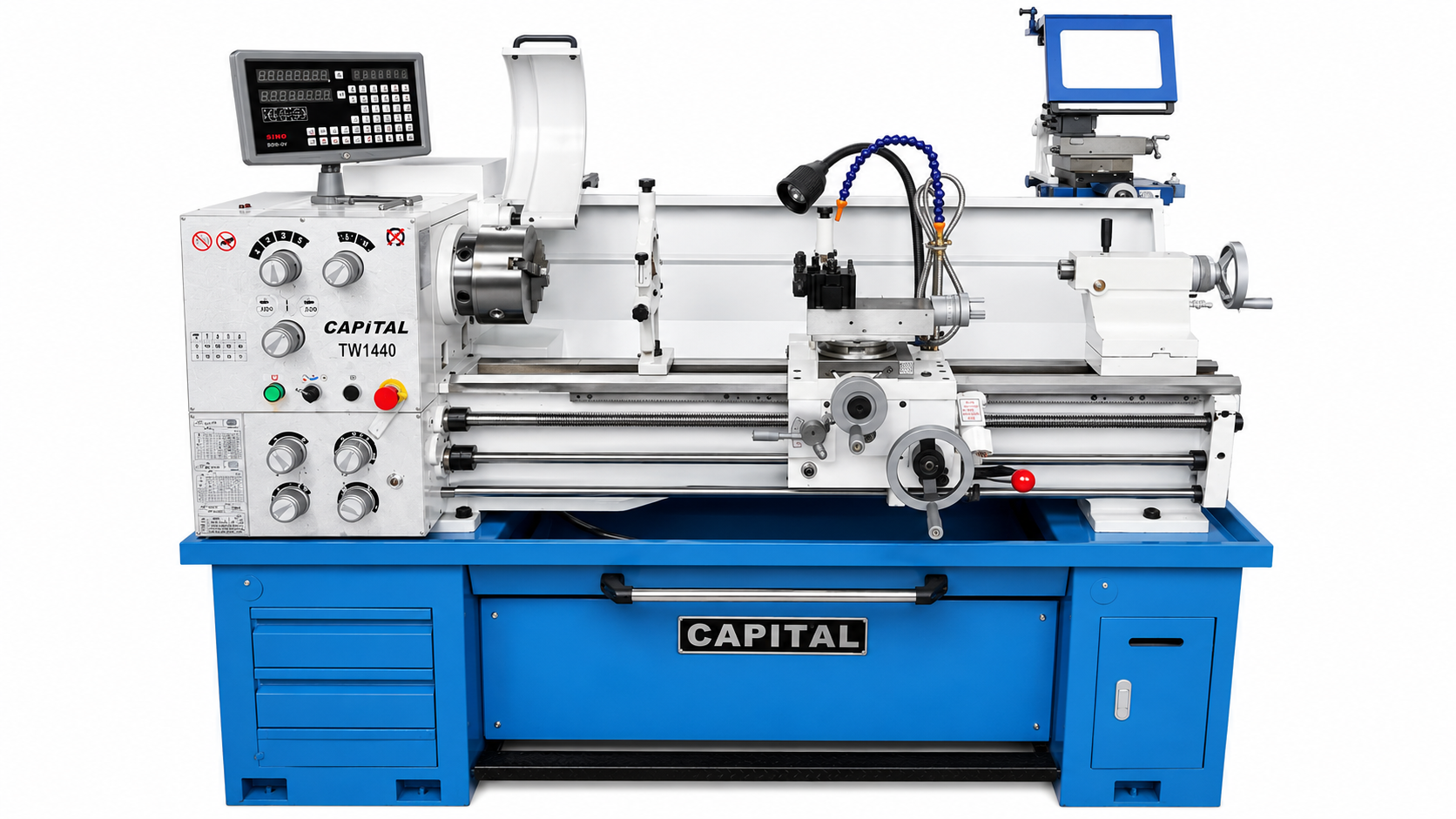

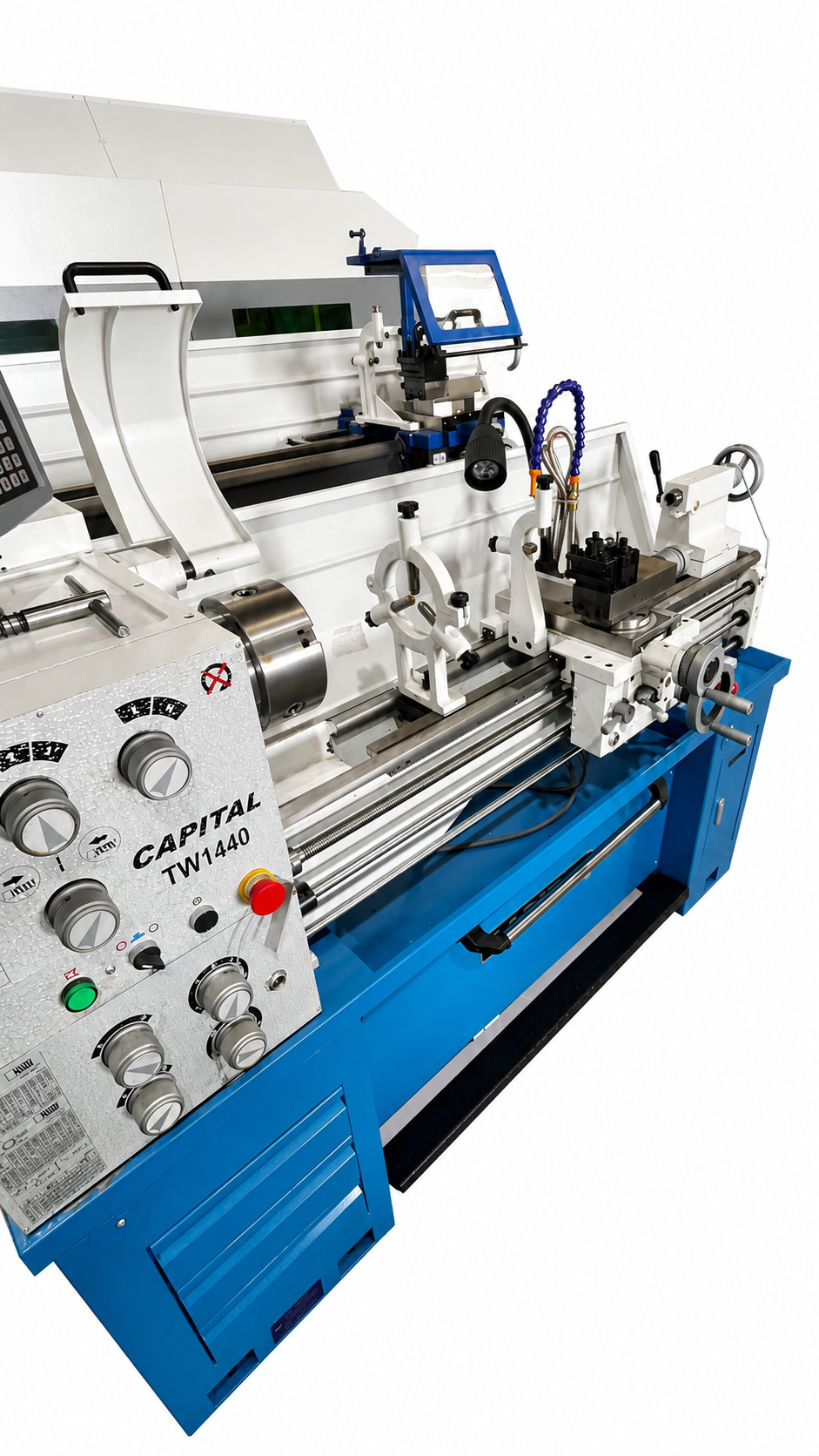

CAPITAL TW1440 PRECISION CENTRE LATHE – 360 × 1000MM CAPACITY
The Capital TW1440 is a versatile precision centre lathe designed for general engineering, maintenance, repair and workshop machining applications.
Offering a 360mm swing over the bed, 1000mm between centres and a generous 52mm spindle bore, the TW1440 provides excellent capacity in a compact, practical machine. Its broad spindle-speed range, powered longitudinal and cross feeds, quick-change toolpost and two-axis digital readout make it suitable for both one-off components and regular workshop production.
Powered by a 1.5kW, 240V single-phase motor, the TW1440 can be installed in workshops where three-phase power is unavailable.
The machine is suitable for facing, parallel turning, taper turning, drilling, boring, grooving, knurling and metric thread cutting across a range of ferrous and non-ferrous materials.
MAIN CAPACITIES
• Swing over bed: 360mm
• Swing over support: 223mm
• Swing through gap: 502mm
• Centre height: 179mm
• Distance between centres: 1000mm
• Bed width: 187mm
• Bed height: 290mm
• Maximum tool section: 16 × 16mm
• Cross-slide travel: 160mm
• Compound-slide travel: 95mm

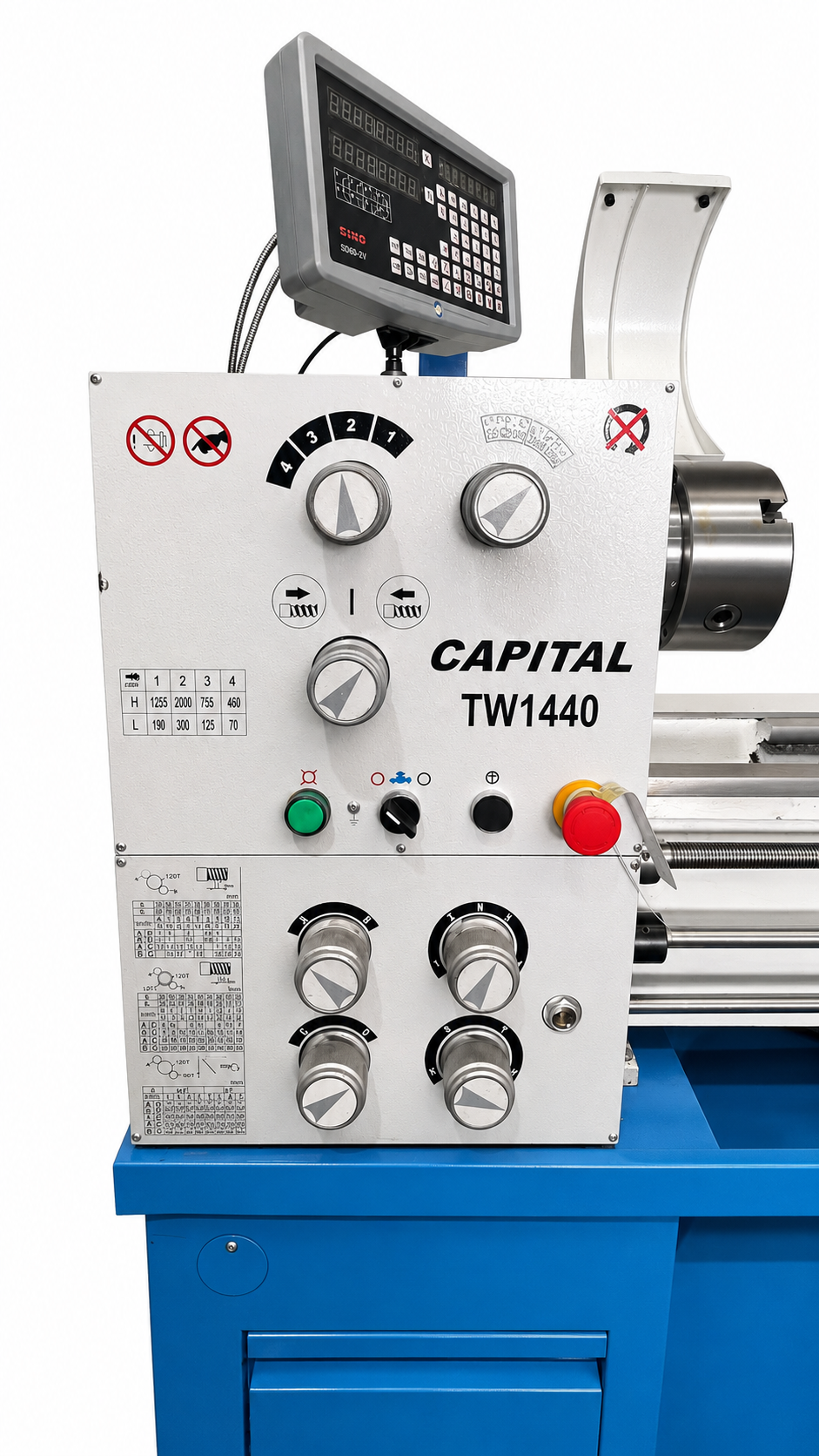

HEADSTOCK
• Spindle bore: 52mm
• Spindle nose: D1-5 camlock
• Spindle-bore taper: MT6
• Spindle-speed range: 70–2000rpm
FEEDS AND THREADS
• Leadscrew diameter: 22mm
• Metric thread range: 0.4–7mm
• Longitudinal feed range: 0.052–1.392mm/rev
• Cross-feed range: 0.014–0.380mm/rev
TAILSTOCK
• Tailstock-sleeve diameter: 32mm
• Tailstock-sleeve taper: MT3
MOTOR AND POWER SUPPLY
• Main motor: 1.5kW
• Power supply: 240V, single phase, 50Hz
KEY FEATURES
• Generous 52mm spindle bore
• D1-5 camlock spindle nose
• Spindle-speed range from 70 to 2000rpm
• Powered longitudinal and cross feeds
• Metric thread-cutting capability
• Two-axis digital readout system
• Quick-change tool post
• Gap-bed design for larger-diameter components
• Foot-operated spindle brake
• Chuck safety guard
• Halogen work light
• Built-in cabinet base with storage drawers
• Fixed and travelling work supports
• Suitable for standard 240V workshop power
STANDARD ACCESSORIES
The Capital TW1440 is supplied with a comprehensive standard accessory package, including:
• Two-axis digital readout system
• Three-jaw chuck
• Four-jaw chuck
• Faceplates
• Fixed steady rest
• Follow rest
• Halogen work light
• Built-in cabinet base with drawers
• Chuck guard
• Foot brake
• Thread-chasing dial
• Oil gun
• Toolbox
• Operating manual
WEIGHT AND DIMENSIONS
• Approximate net weight: 510kg
• Approximate gross packed weight: 600kg
• Packing dimensions: 1930 × 760 × 1600mm
The Capital TW1440 is ideally suited to general engineering workshops, maintenance departments, automotive and agricultural repair businesses, mining support operations, schools, training facilities and fabrication workshops requiring dependable in-house machining capability.
Capital Equipment Machinery Sales can assist with delivery, installation, commissioning, operator training, tooling selection and ongoing servicing. Additional tooling and workholding packages can also be supplied to suit your machining requirements.
Contact Capital Equipment Machinery Sales for current availability, pricing and further information on the Capital TW1440 precision centre lathe.
