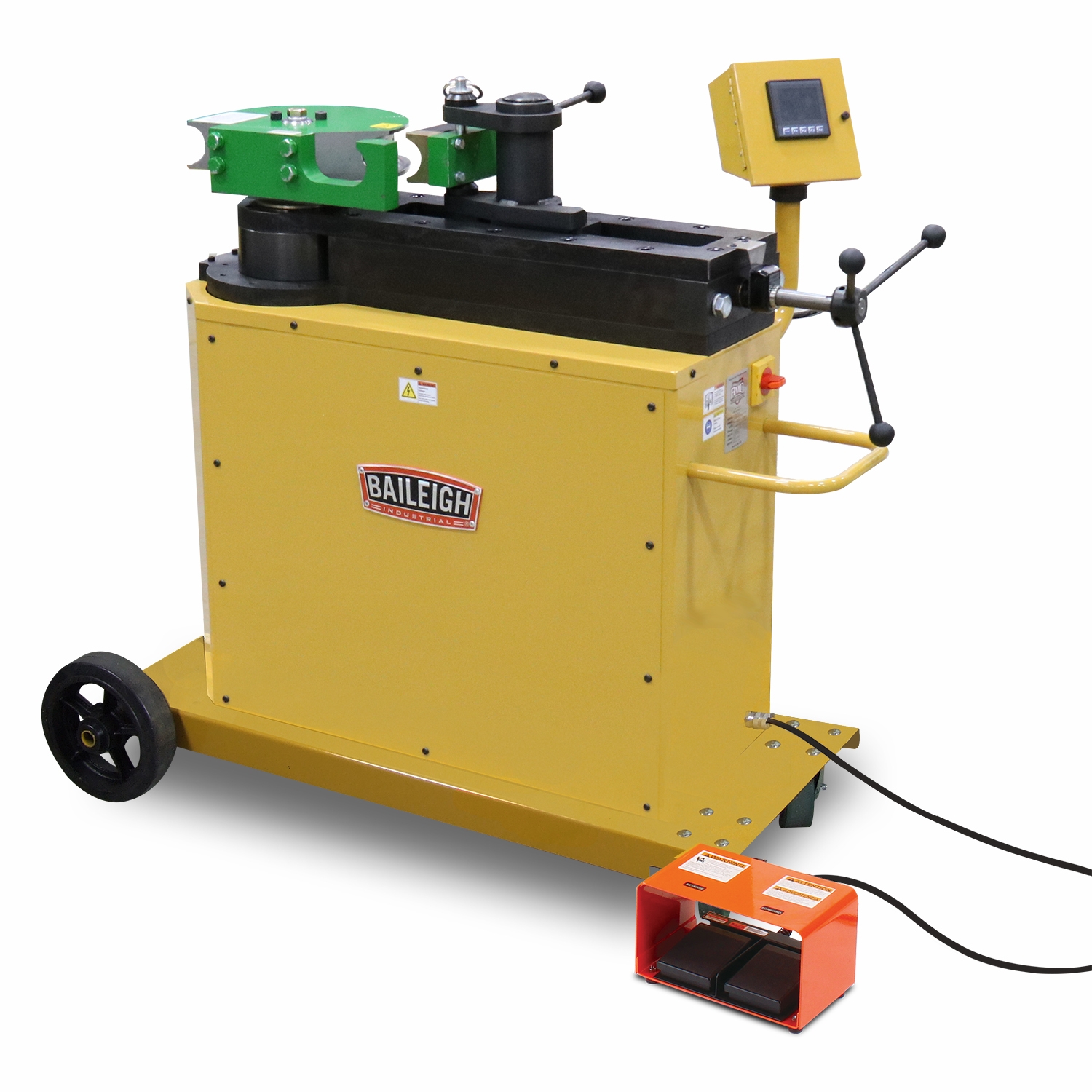

Baileigh Programmable Pipe Bender RDB-325

FOT ex Perth, WA. We ship Australia wide.

Competitive freight prices can be arranged. Please contact us for details.

The Baileigh Programmable Pipe Bender RDB-325 comes with a massive capacity of 2″ schedule 80 pipe (60mm x 5.5mm (mild steel T.S. 64,000 PSI) and 76mm (3″) round tubing with a 16” maximum CLR, depending on your material OD. Tooling for the RDB-325 is the same high-quality tooling that our entire line of Baileigh Industrial top-loading benders use.  With over 5,000 die sets available, there will be one for your application.

The Baileigh Programmable Pipe Bender RDB-325 requires just 400 volt, 50hz, three phase power, and includes a simple to use touchscreen controller that holds up to 170 programs, with up to ten bends per program. When more memory is needed, a memory card (standard 2GB SD card, max) can be used, therefore allowing expanding storage capacity. An optional indexing table can be fitted thus allowing the fabricator to bend on varying planes and easily duplicate complex bends.

Like most of our powered rotary draw tube and pipe bending machines, this one uses a foot pedal control, and a swing away counter die system for increased production speed. Another nice feature of the RDB-325 bender is that it can rotate up to 360° in either direction, therefore making it a great machine when using our optional universal bending plate for rod applications.

The Baileigh Programmable Pipe Bender RDB-325 is designed and built to be the workhorse for your fabrication shop for decades to come. To find out more information on this bending machine or any other pipe or tube bender, please contact us today!

Please click here to view other pipe benders in the Baileigh range.

Specifications:

Model: RDB-325
Country of Manufacture: USA
Minimum CLR: 13mm
Minimum OD: 6mm
Maximum Speed To 180°: 10 seconds
Solid Rod Mild Steel: 32mm
Pipe Schedule 80 Mild Steel: 60mm x 5.5mm
Round Tube Wall Mild Steel: 76mm x 3mm
Square Tube (Wall) Mild Steel: 50mm x 3mm
Stainless Steel Pipe Schedule 40: 60mm x 4mm
Stainless Steel Round Tube Wall: 76mm x 2.5mm
Chromolly Round Tube Wall: 76mm x 2mm
Aluminum Pipe Sch. 80: 73mm x 5.5mm
Aluminum Round Tube Wall: 76mm x 5mm
Maximum Center Line Radius Clr: 419mm
Power: 400V 50Hz 3Ph
Shipping Weight: 545 kg
Special Notes: Tooling not included, please contact us for correct sizing.
Shipping Dimensions: 1524mm x 813mm x 1220mm
