Product Catalogue | Steel Fabrication | BDS Magnetic Base Drills » BDS MABasic40 Magnetic Base Drill

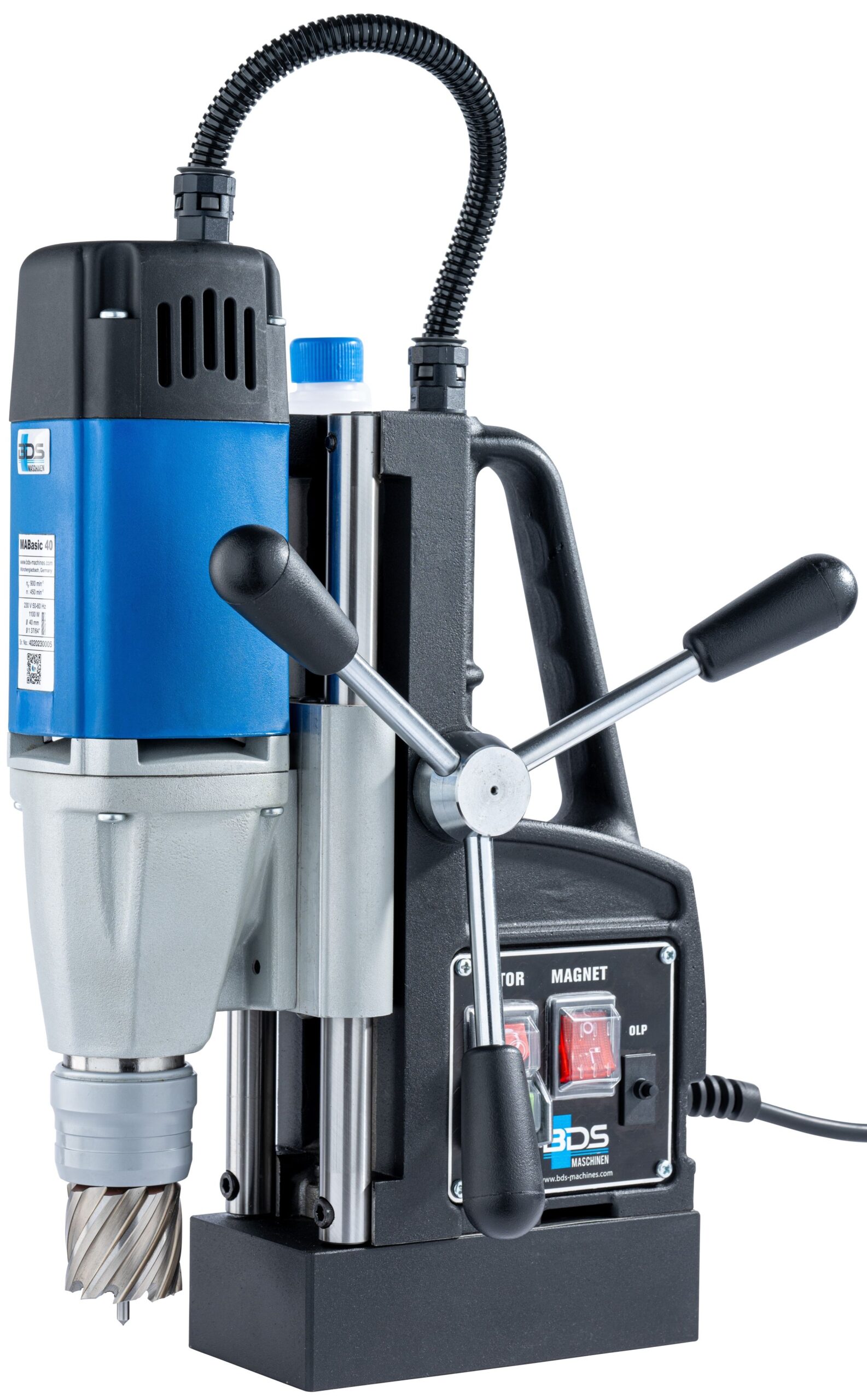

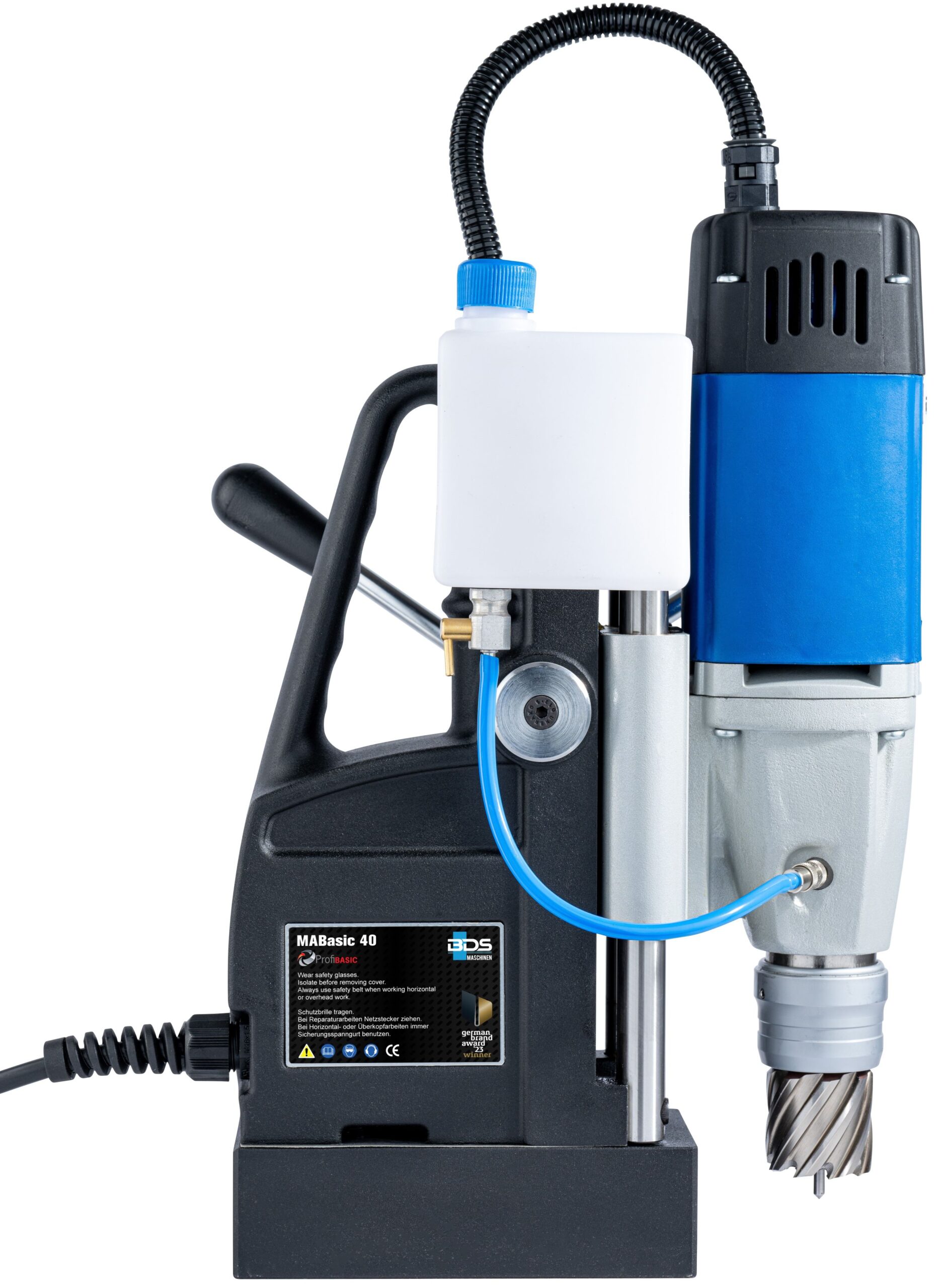

The brand new BDS MABasic40 Magnetic Base Drill features a pillar-type sliding system made from premium stainless steel. This assembly includes guides and bearings that allow the drilling head to move smoothly up and down the pillar.

This new design feature enhances the versatility and flexibility of the magnetic drilling machine. Designed in Germany.

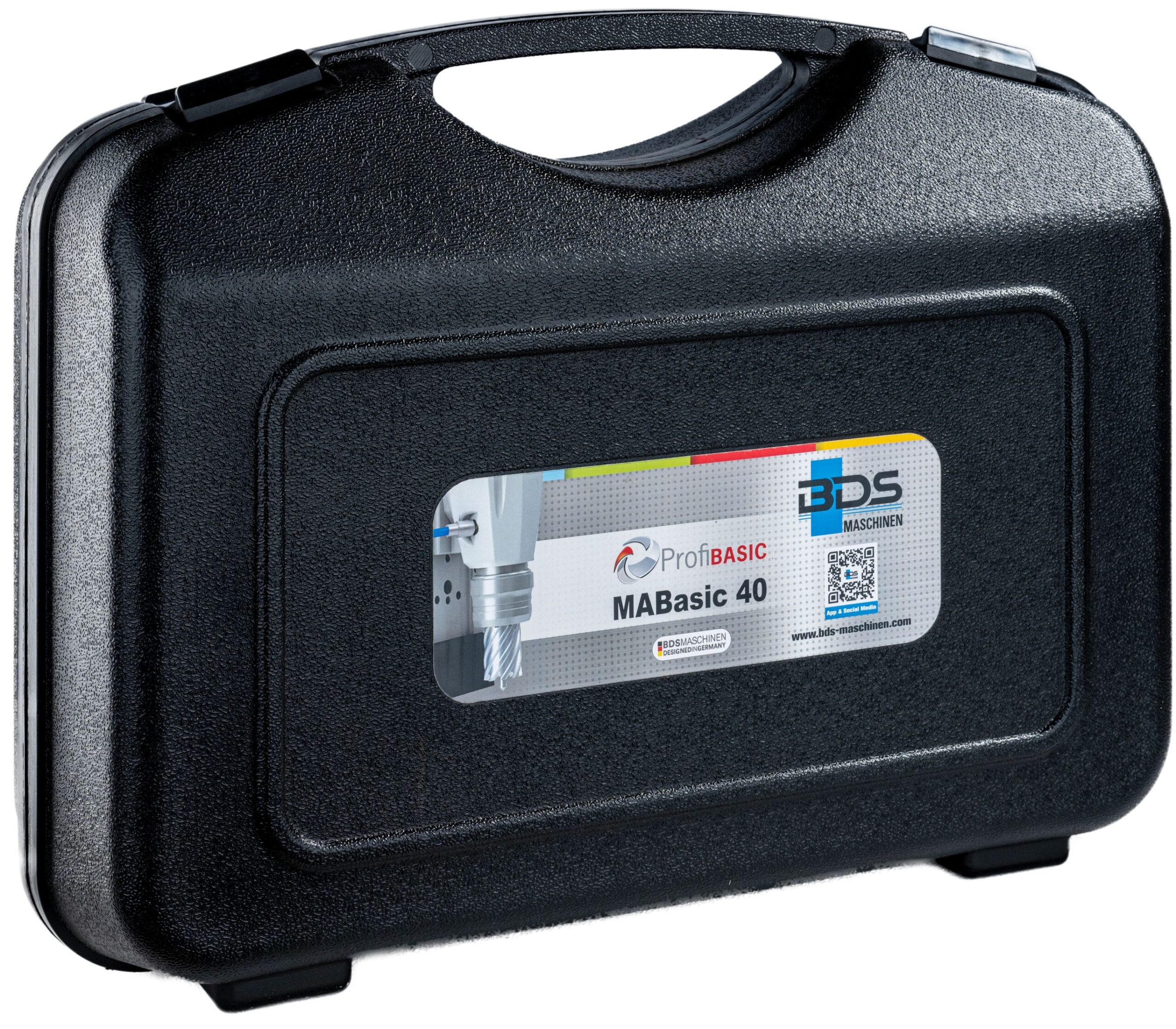

Fully portable with a weight of just 12kg, therefore making the BDS MABasic40 Magnetic Base Drill ideal for light duty applications.  Finally, the machine is shipped in a customised carry case, ensuring the drill is protected when not in use.

Features:

Motor: 1100W 230V AC
Stroke: 160mm
Magnet Size: 84 x 168 x 48mm
Core Drill Capacity: 12-40mm in both short (30mm) and long (55mm) cutting depths
Twist Drilling Capacity: up to 14mm (optional adapter and chuck required)
Weight: 12kg
Speed: 450 RPM
Direct Arbour: Keyless quick change tool holder

For more models in the BDS magnetic base drill range please click here.
