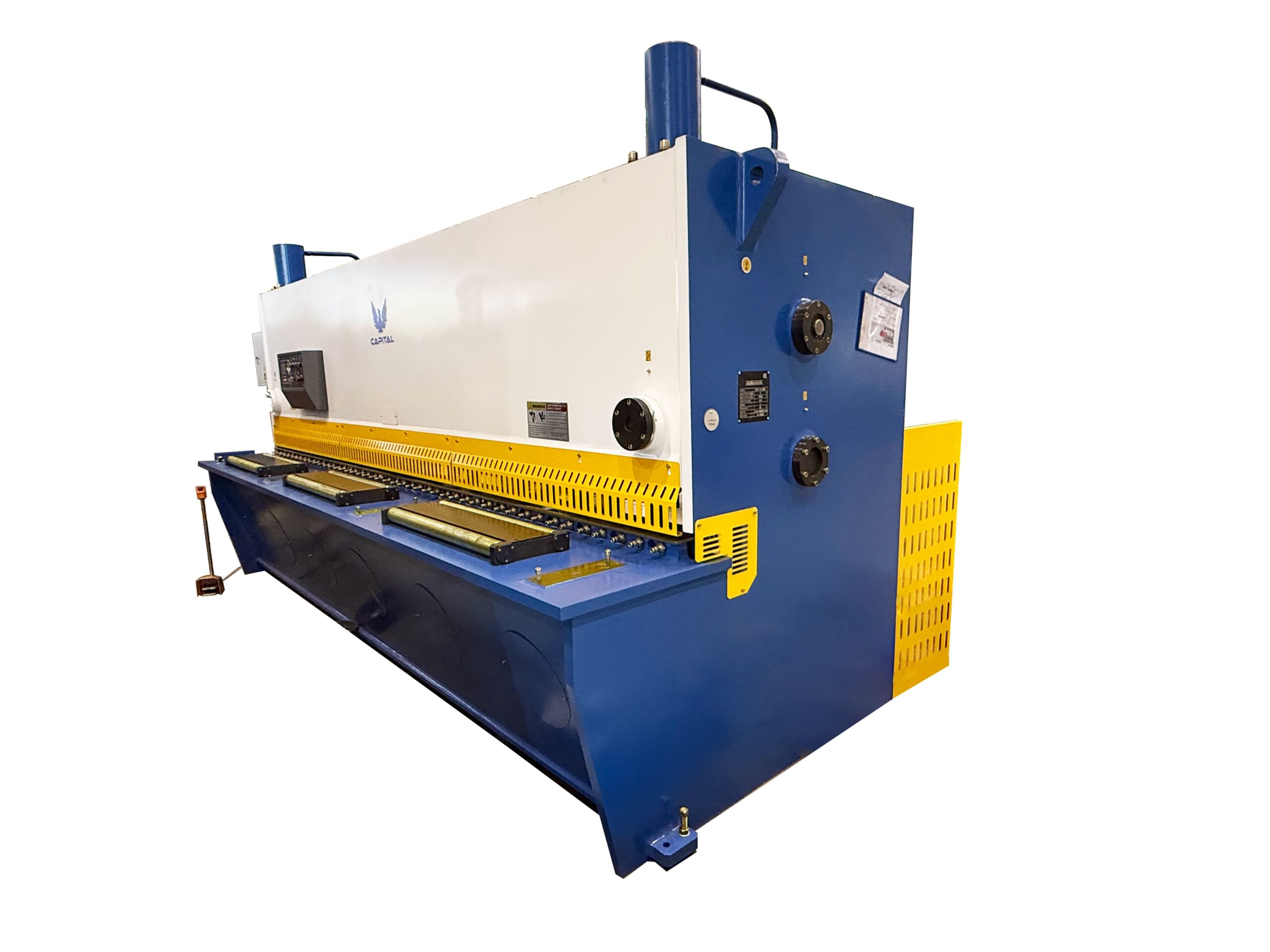

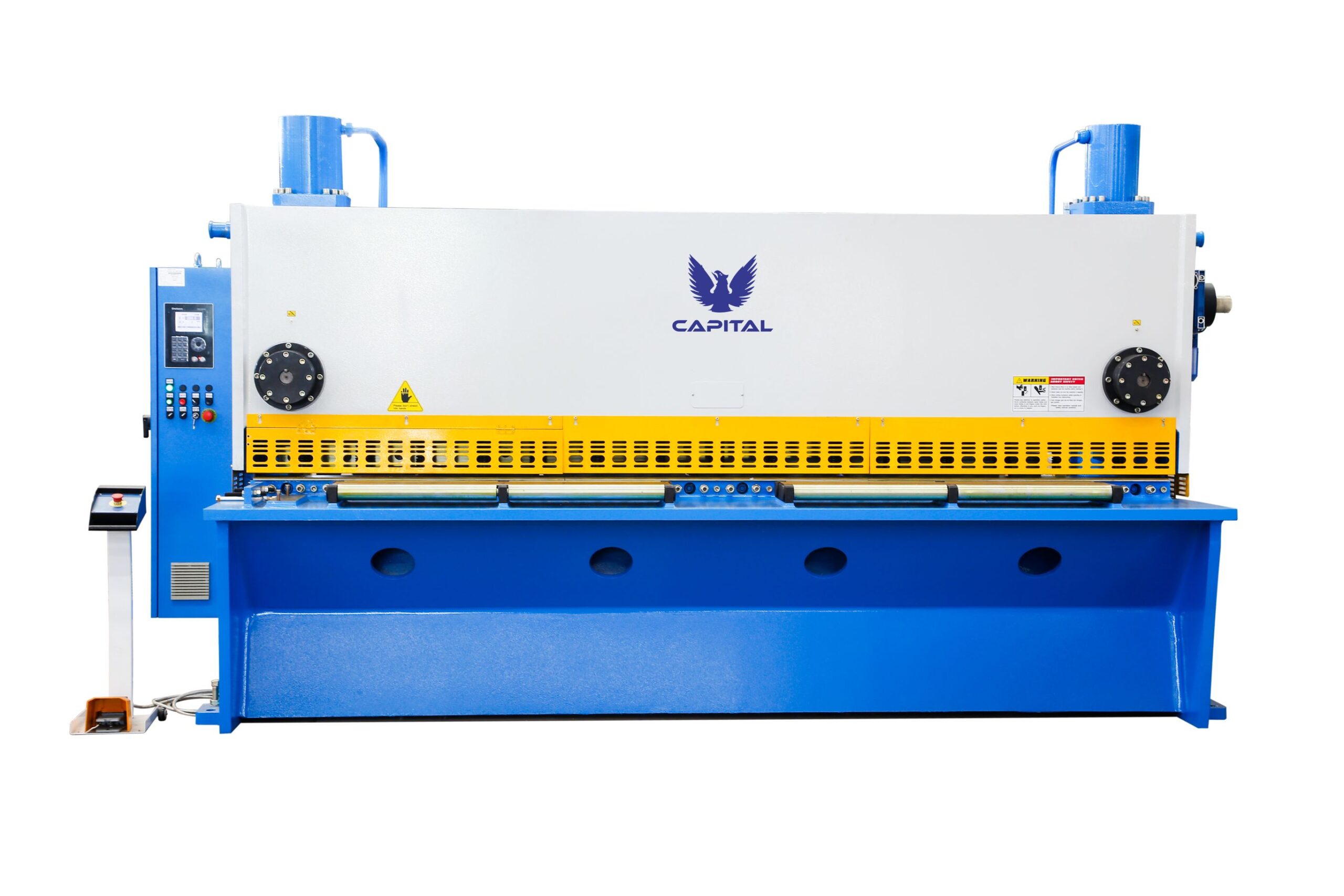

Capital metal guillotines is a popular choice among buyers for plate shearing due to its ability to adjust blade clearance and angle. It offers several advantages over other types of guilltoines when cutting plates with a thickness exceeding 13mm, including favorable pricing and cutting precision.

Features:

– A fully welded box bed frame that is integrated with the workbench.
– The frame is capable of providing high stiffness to counterbalance the torque load resulting from the shear force.
– The machine has a vertical linear movement relative to the lower blade, ensuring that the sheared sheet experiences minimal distortion and maintains accurate straightness.
– Equipped with a Delem brand DAC360 CNC system, which is now upgraded to the DAC360T touch screen version, serving as the controller. The Delem brand is based in the Netherlands.
– The system allows for the control and adjustment of the back stop, blade angle, and blade gap.
– Alternatively, the E21S digital display controllers are available as options.
– The machine can be equipped with a high-performance main motor from internationally renowned brands such as Siemens or from well-known Chinese brand Wannan.
– Internationally recognized brand Rexroth hydraulic valve block.
– Thanks to the oil pressure overload protection feature, occurrences of oil leakage and valve jamming are infrequent.
– Real-time oil pressure monitoring ensures a smooth oil circuit and stable operation of the equipment.
– The design of the feed port is in compliance with international safety standards.
– The minimum feeding height is equivalent to the sheet thickness, while the maximum height is the sheet thickness plus 20-25mm. Adjustable height screws are available to enable the feeding height to be adjusted accordingly.
– The presence of a front fence and side guardrail ensures safe operation of the machine.
– A light alignment device that facilitates marking and shearing. Additionally, the stroke of the blade holder can be steplessly adjusted for greater precision.
– Optional features for the machine include a pneumatic rear support device and a rear light curtain protection device.
– The automatic rear support serves to support the thin plate during cutting, ensuring precision and a smooth surface finish.
– The rear light curtain protection system ensures the safety of personnel during machine operation and is in compliance with international safety standards.
– The motorized shearing angle adjusting device eliminates the need for manual adjustment and automatically adjusts the shearing angle according to the thickness of the plate.
