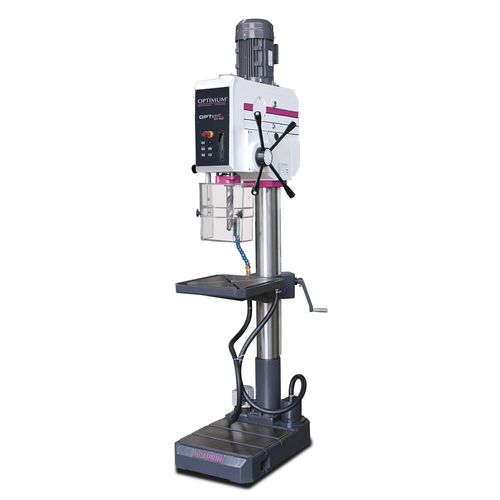

DH35G gear drilling machine with coolant and thread cutting device.

Features:

– Dirt and water resistant, easy to clean membrane keypad
– Electronics 24V DC
– Depth stop

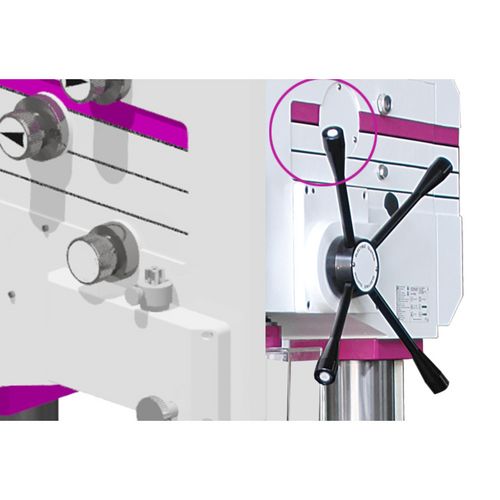

– Electrical quill feed
– Low-maintenance, running in closed oil bath gearbox
– Threading attachment
– Machine light integrated in the drill head
– Main switch
– Large, height-adjustable protective screen with safety switch for the utmost protection of the user
– Large dimensioned, solid drill table, precisely worked with diagonal T-slots and all-round cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways
– Coolant device integrated with coolant reservoir in the base plate
– Chip filter cleans the coolant from coarse components
– Extremely stable, thick-walled cast-iron column for high power consumption
– Solid base plate with parallel T-slots, precision surface finish
– Optional foot switch for switching between right-left rotation and thread cutting (article no. 3050032) available

Specifications

Dimensions And Weights
Column diameter: 115 mm
Length approx.: 860 mm
Width/depth approx.: 474 mm
Height approx.: 2175 mm
Weight approx.: 350 kg

Drilling Performance
Drilling performance steel (S235JR): 35 mm
Continuous drilling performance steel (S235JR): 26 mm
Thread tapping steel (S235JR): M 24

Drilling Table
Workspace length: 400 mm
Workspace width: 420 mm
T-groove type: diagonal
T-groove size: 14 mm
T-groove number: 2
Load bearing capacity: 200 kg
Max. distance spindle – drilling table: 800 mm
Min. distance spindle – drilling table: 65 mm

Electrical Data
Drive motor output: 1,5 / 2,2 kW
Supply voltage: 400 V
Mains frequency: 50 Hz

Machine Base
Max. distance spindle – machine base: 1217 mm
Work area length: 420 mm
Work area width: 395 mm
Machine base T-groove size: 14 mm
Machine base T-groove number: 2
Machine base T-groove spacing: 150 mm

Motor(s)
Coolant pump drive motor output: 40 W

Speed Range
Speed range: 75 2000 min¯¹
Number of gears: 8 Steps

Spindle
Quill stroke: 125 mm
Spindle chuck: MT 4
Reach: 285 mm
Quill feed speed: 0.05 – 0.15 mm/rev
Quill feed gears: 3 Steps
