Product Catalogue | Steel Fabrication | Plate Bevellers » N.KO B3 Bevelling Machine

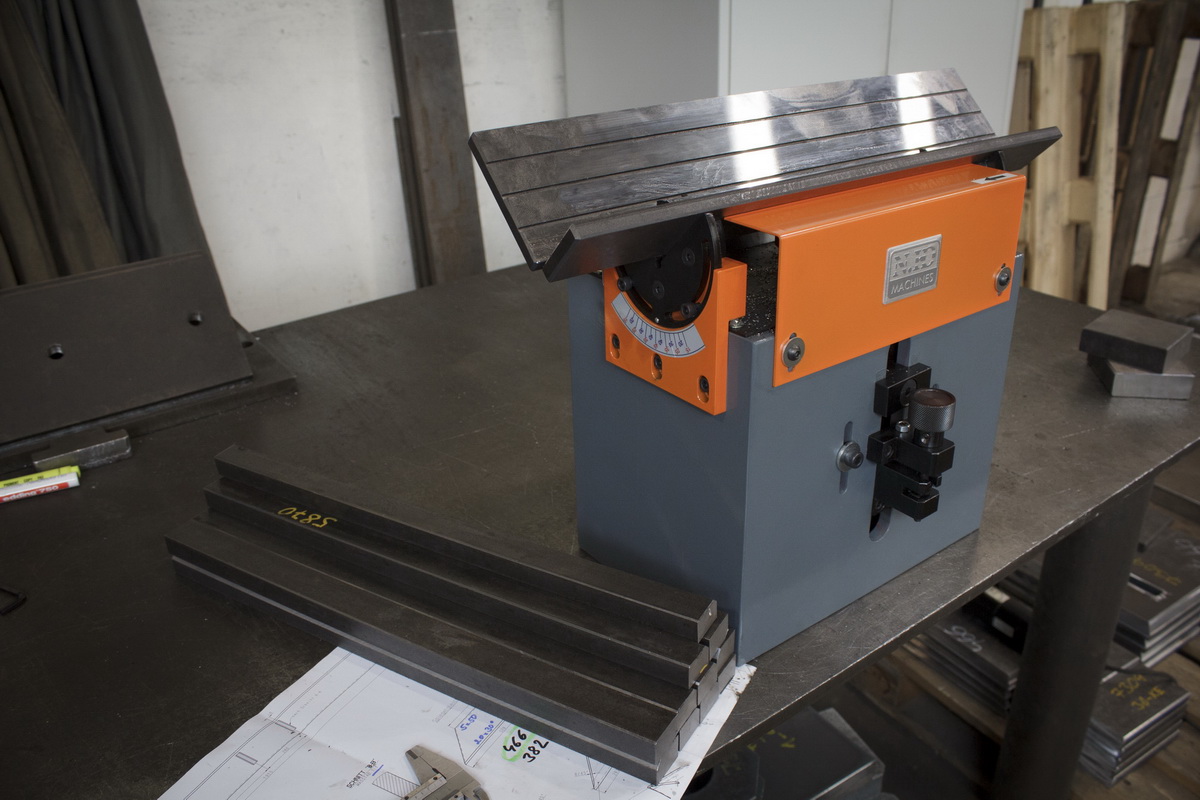

The B3 Bevelling Machine is intended for deburring and bevelling of smaller steel workpieces. The workpieces are inserted directly into the machine and are guided manually.

Features

– Scale adjusting of the cut
– Protective security guards
– Adjustable angle chamfers
– For steel, stainless steel, aluminum and other materials.
– Exact massive and luxuriously long plate fences.

Specifications

Bevel angle: 30° – 60° infinitely adjustable
Bevel width: 0 – 3 mm / 0 – 0.12 in
Voltage: 400V 50Hz 3 phase
Motor power: 1.3 kW
Router speed: 3 600 ot./min
Feed: hand operated
Weight: 31kg
Dimensions: 530 x 420 x 410mm
Number of inserts: 5 pcs (square)
