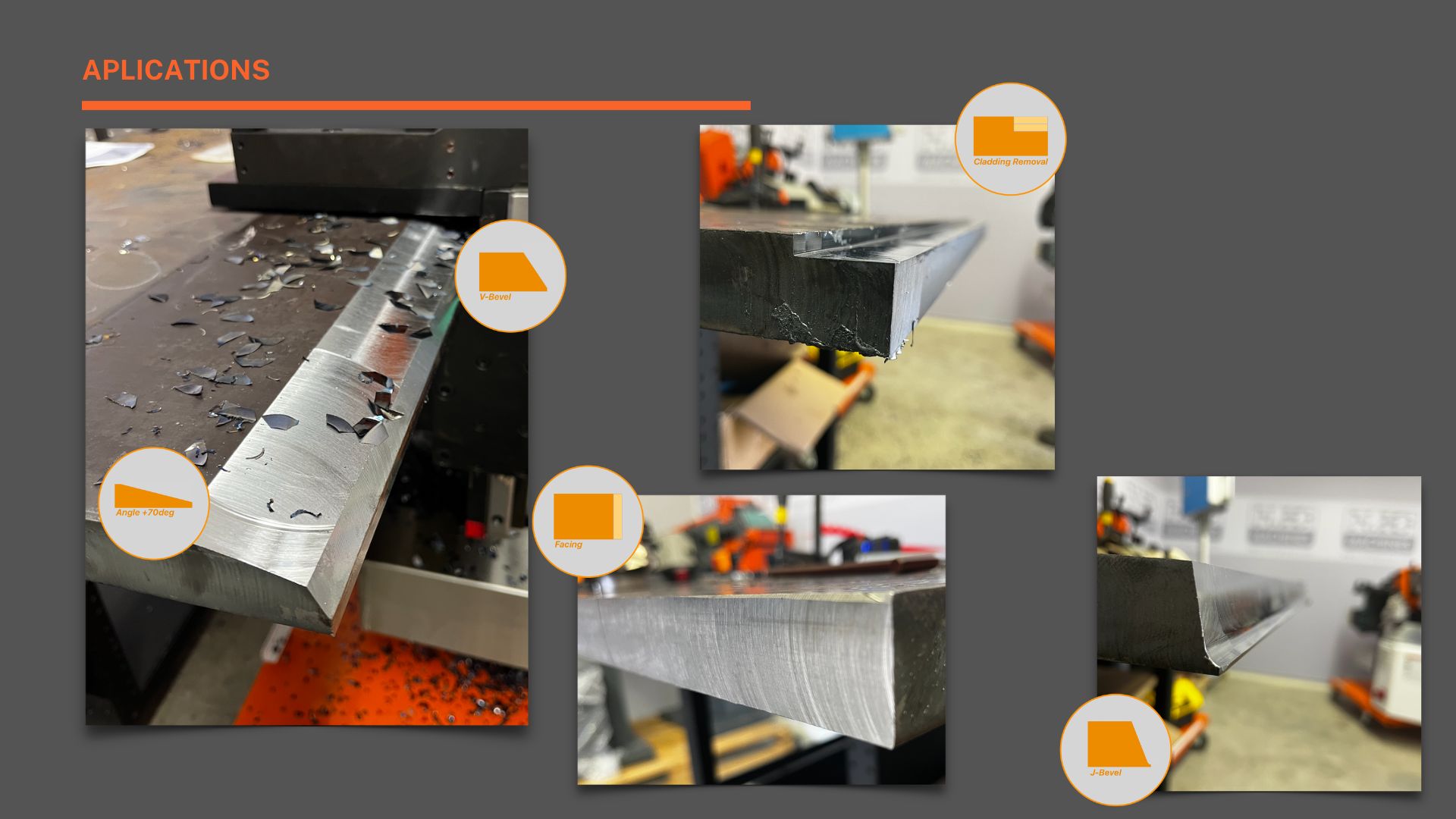

The N.KO UZ47 plate beveller is a unique multi-purpose bevelling machine with automatic feed for applications such as V-bevel, J-bevel, Cladding Removal, Facing and +70° chamfers.
Suitable for machining structural steels including higher strength steels, stainless steels and other harder to machine materials such as Hardox or Domex.

Features:

– Automatic workpiece clamping system.
– Infinitely adjustable tool speed.
– Infinitely variable machine feed speed.

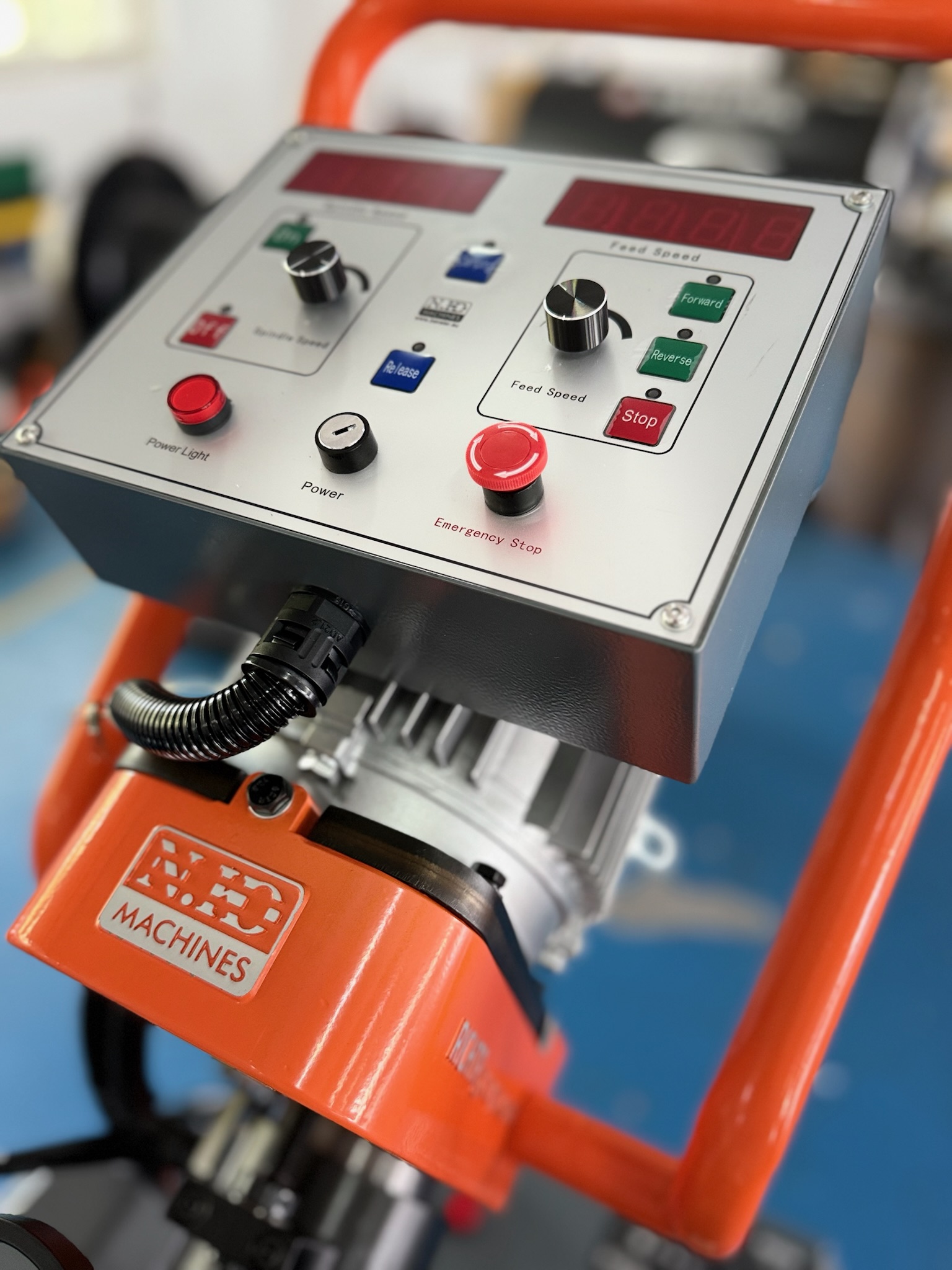

– 2 built-in displays showing cutting conditions.
– Possibility of adjusting the height of the machining unit according to the position of the workpiece.
– Tool adjustment in three axes. Unique cross feed.

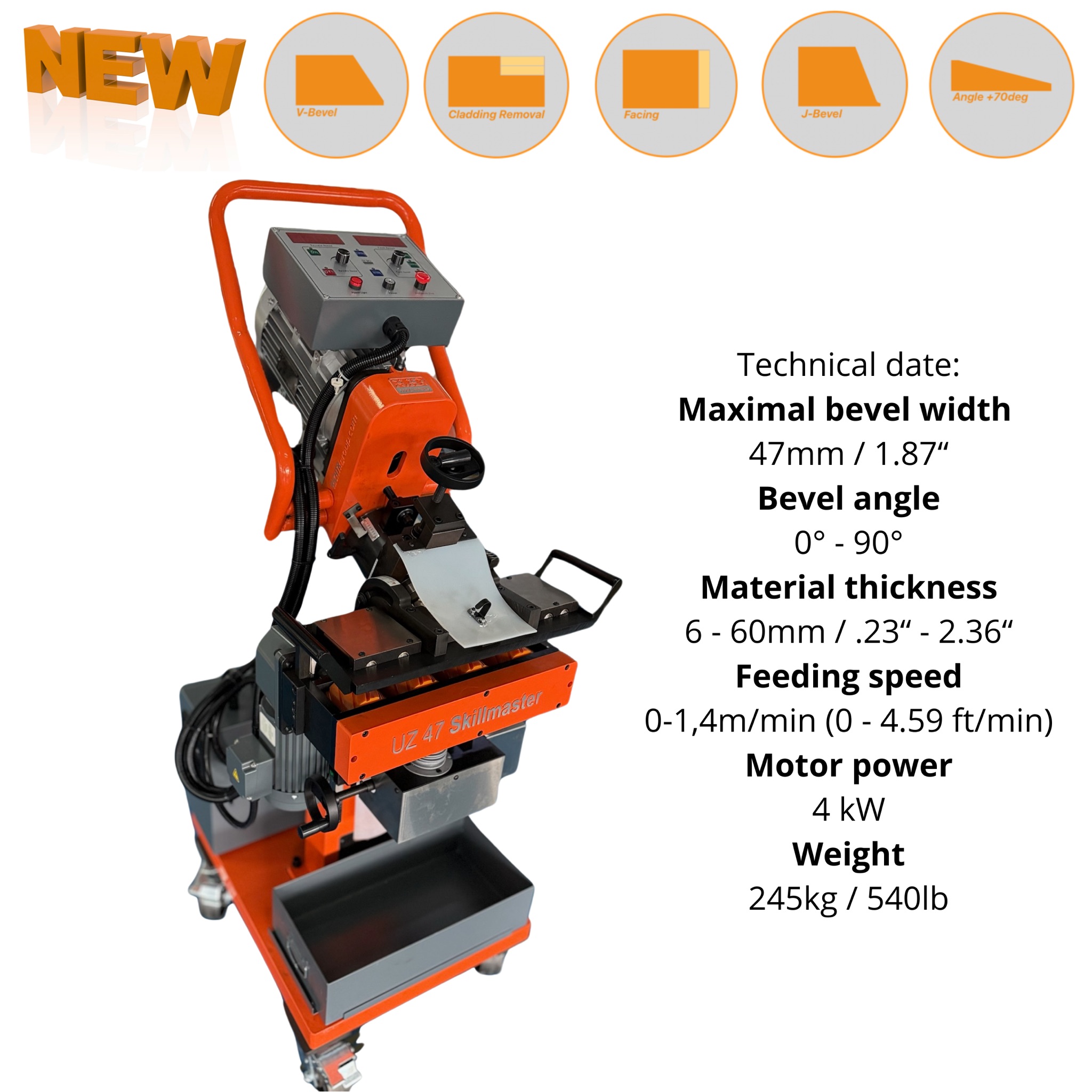

Specifications:

Maximal Bevel Width: 47mm / 1.87“
Bevel Angle: 0° – 90°
Material Thickness: 6 – 60mm / .23“ – 2.36“
Feeding Speed: 0-1,4m/min (0 – 4.59 ft/min)
Motor Power: 4 kW
Voltage: 400V / 50Hz. (220V /60Hz, 480V / 60Hz)
Weight: 245kg / 540lb
