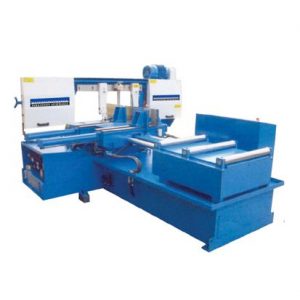

Parkanson PK500DMA Metal Cutting Bandsaw

» enquire now

The Parkanson PK500DMA metal cutting bandsaw is a fully automatic hitch feed mitre cutting bandsaw with AUTO mitring, therefore allowing for the frequent change of mitre cuts.  From +30 (left) to -45 degrees in both directions (left & right).  With a capacity of 320 x 500mm (HxW) and a single stroke hitching length of 500mm.

All automatic Parkanson Bandsaws include a full stroke hydraulic vice. In addition the fixed vice jaw on the carriage opens by about 3mm, allowing any bent or uneven material to be fed without the worry of it jamming. The PK500DMA has a 34mm blade, thus allowing you to cut structural material to its full capacity.

A Parkanson NC touch screen is supplied with the bandsaw, therefore allowing the programming of different lengths and angles of material to be cut. With 99 programs and 10 lines so jobs can be saved for future use.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.


Cutting Capacity: 90° Round: 325mm Rect: 320x500mm (HxW)
45° Rect (left & right): 320x350mm
30° (left): 320x210mm
Blade Size: 4755 x 34 x 1.1 mm
Blade Speed: 25-90 M/min
Main Motor: 2.25Kw
Single Feed Stroke: 600mm
Working Height: 650mm
Net Weight: approx 2300 Kgs
Dimensions (LxWxH): 2800x2280x1650mm

Standard Equipment:

– Inverter blade speed drive
– Mist lubrication
– Laser Line
– Working light

Optional Equipment:

– Hydraulic blade tension
– 2m or 3m roller table
– 3m powered roller table
– Auto chip conveyor
