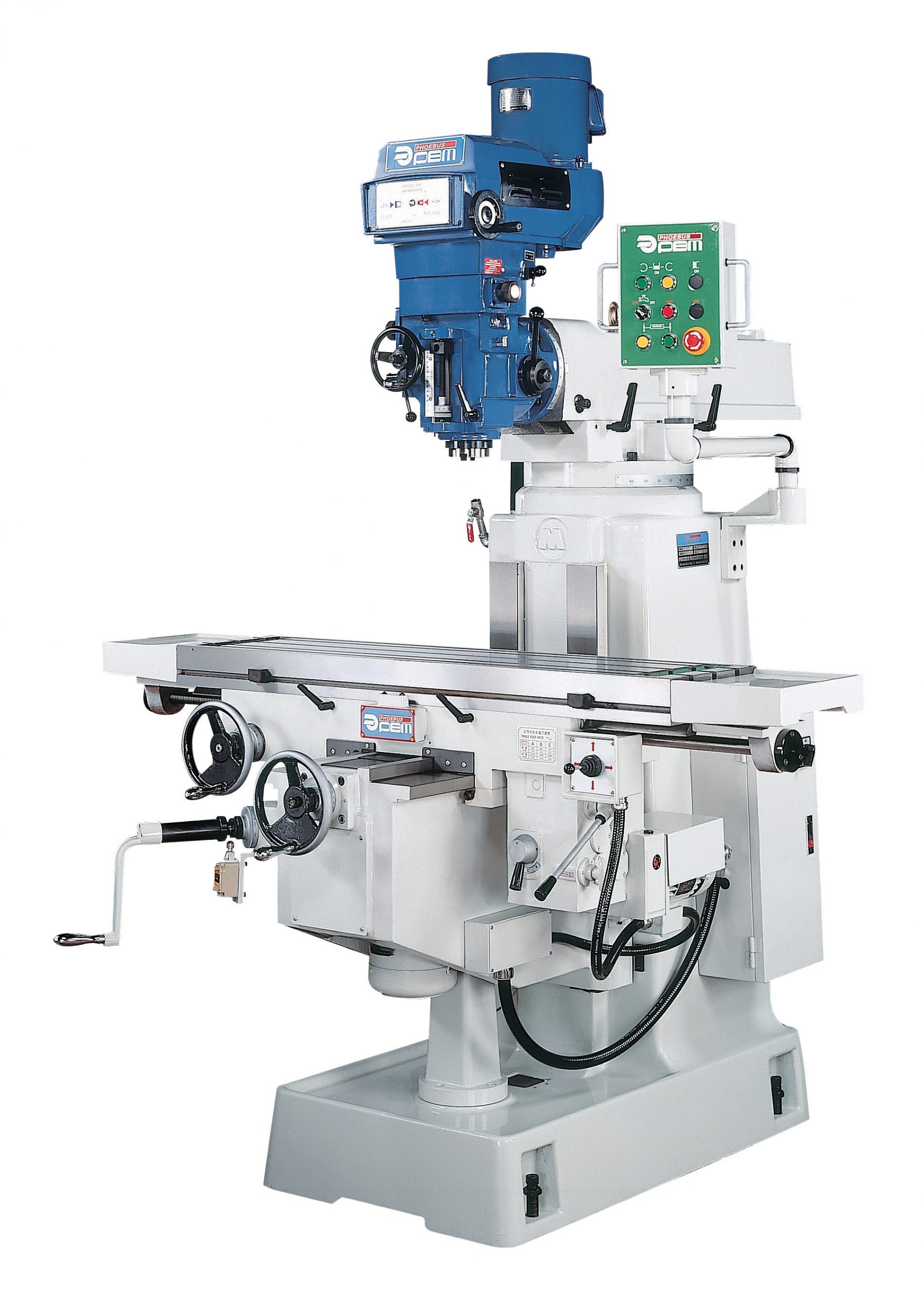

The Phoebus PBM-VS300 Vertical Milling Machine has the following specifications:
Table Size: 1270 x 300 mm T Slot (W x NO. x Pitch): 16 x 3 x 80 Manual Travel (X x Y x Z): 1120 x 400 x 450 mm Auto Travel (X x Y x Z): 920 x 380 x 450 mm Spindle Nose: N.S.T. 40 Steps: Infinitely variable Spindle Speed RPM: 80 – 3800 Swivelling Angle: 45 degrees (R & L)
Standard Accessories:
– 3 axis DRO
– Coolant equipment
– Long. gearbox feed
– X, Y, axis turcite B slide way
– Slide way auto lube pump
– Table elevating motor
– 50mm raised column
– Work Light
