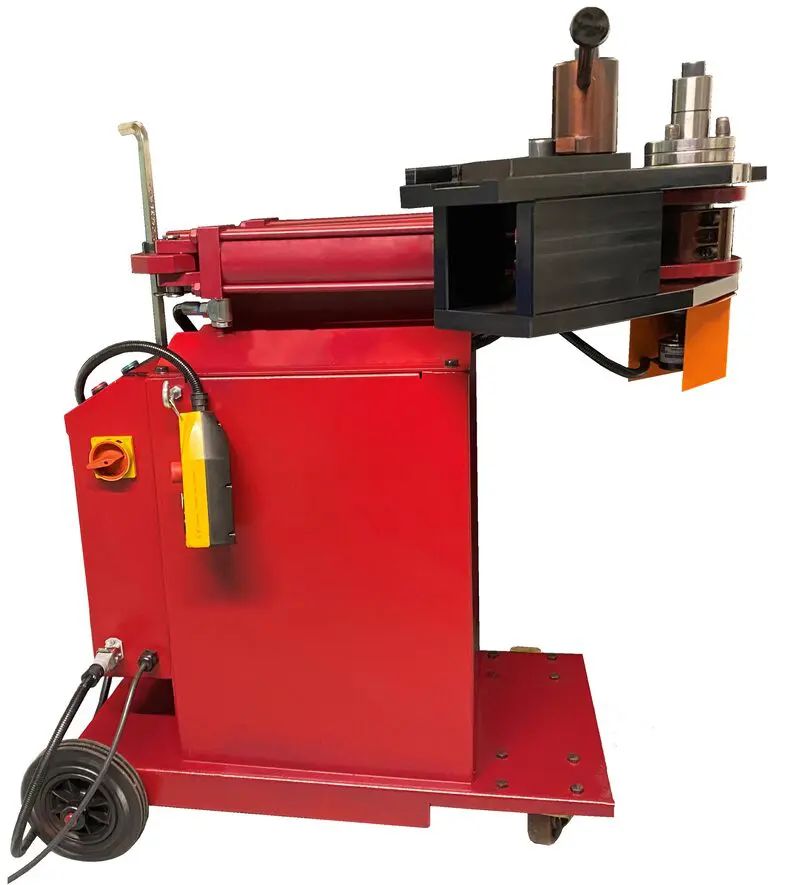

The RDB175E European Made Pipe Bender is a high-quality machine engineered for durability, precision, and ease of use. Designed to handle a wide range of materials, it delivers reliable performance in any fabrication setting.
Features:
– Versatile Capacity: Capable of bending 2″ Schedule 40 pipe (60mm × 4mm) and up to 2.5″ tubing with a wall thickness of 0.120″ (62mm × 3mm) in mild steel.
– Efficient Operation: Simplistic design ensures minimal effort during operation, making it user-friendly and efficient.
– High-Quality Build: Constructed with premium components for long-term reliability and precision performance.
– Compatible with Baileigh Industrial-style rotary draw tube benders
– Bespoke Tools Available
– Supports 1/2″ to 2″ NB pipe and metric tubes up to 60mm
– Suitable for use with mild steel, stainless steel, aluminum, and chromoly tubing
– Ideal for fabrication shops, race car builders, and structural steel work
– Tooling available for Various Centre Line Radii(CLR)
Tooling Information:
The machine is supplied without bending dies or tools.
Images are for demonstration purposes only.
Popular die sets such as 42.2mm OD and 48.3mm OD with various Centre Line Radii (CLR) are available separately.
Custom tools can also be manufactured upon request.
For tooling options, pricing, or bespoke die requirements, please contact us today.
Specifications:
Minimum CLR: 13mm Minimum OD: 6mm Maximum Speed to 180°: 12sec Mild Steel Solid Rod: 32mm Mild Steel Pipe Schedule 40: 60mm x 4mm Mild Steel Round Tube Wall: 64mm x 3mm Mild Steel Square Tube Wall: 50mm x 3mm Stainless Steel Pipe Schedule 40: 48mm x 3mm Stainless Steel Round Tube Wall: 60mm x 3mm Chromoly Round Tube Wall: 50mm x 3mm Aluminum Pipe Schedule 40: 60mm x 4mm Aluminum Round Tube Wall: 64mm x 4mm Maximum Center Line Radius (CLR): 229mm Power: 220V, 50Hz, 1-Phase Shipping Weight: 286kg Shipping Dimensions: 1118mm x 711mm x 1067mm
