Product Catalogue | Steel Fabrication | Cold Saws » Super 315A

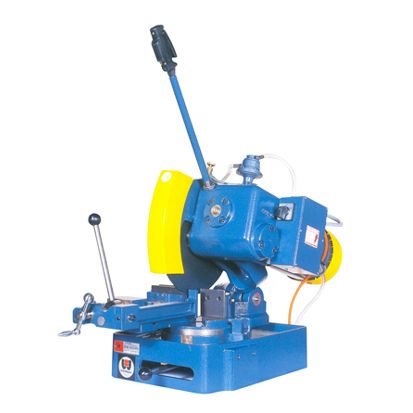

Super 315A

» enquire now

Blade Size (O.D. x width x bore):
315 x 2.5 x 40 mm
Blade Type:
HSS
Pin Holes (Qty. x dia mm x PCD mm):
2 x 8 x 55
Motor Size / Blade RPM
Dual Speed 3PH Lo/Med (KW – RPM):
1.1 / 1.5 – 21 / 42
Dual Speed 3PH Med/Hi (KW – RPM):
1.5 / 2.2 – 42 / 85
Single Speed 3PH Std. (KW – RPM):
N/A
Single Speed 1PH Std. (KW – RPM):
1.7 – 42
Base Dimensions (W x D):
560 x 530 mm
Floor Space (W x D):
660 x 1030 mm
Table Working Height:
968 mm
Weight Packed:
182 kg
