FOT ex Perth, WA.

Competitive freight prices available. Please contact us for details.

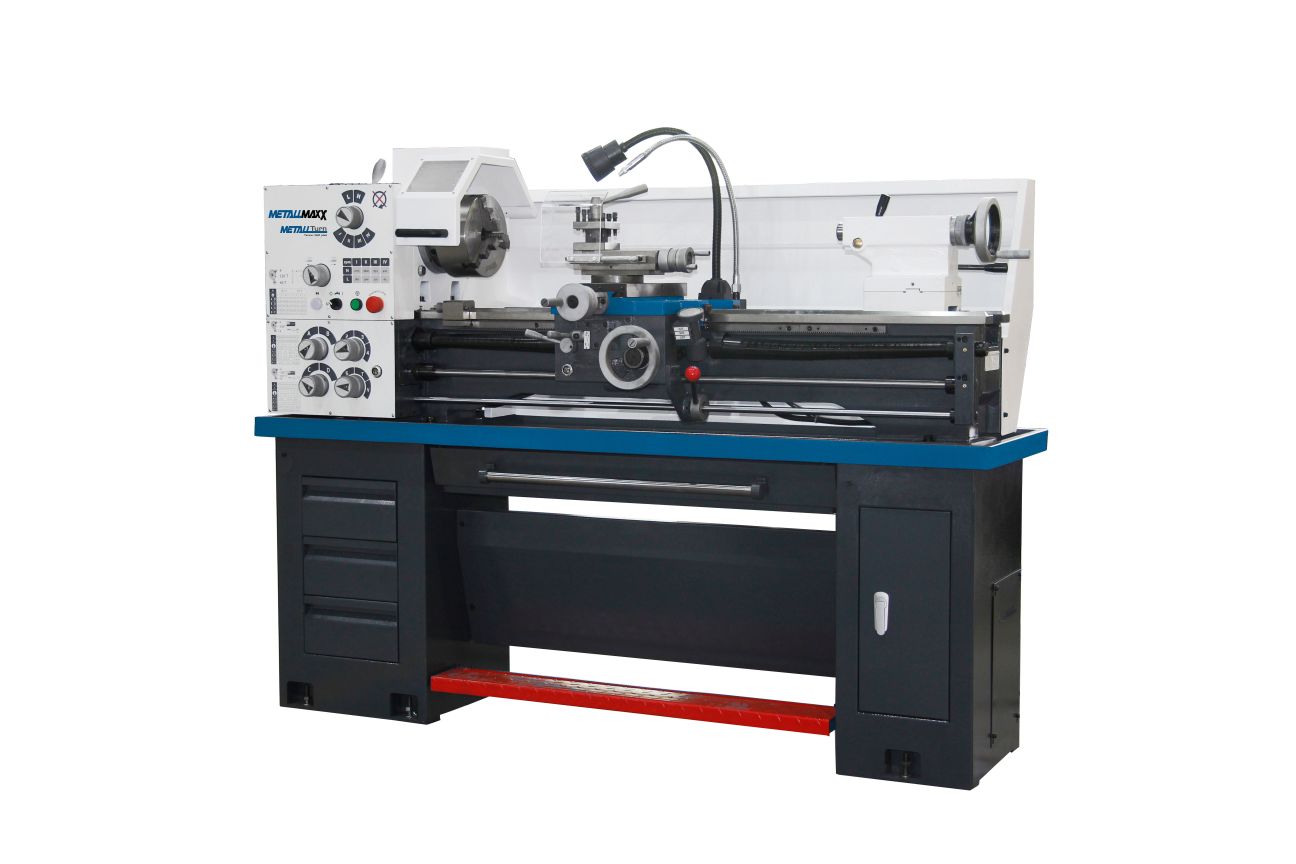

Turner 360L Metal Lathe

Features

2 Axis DRO
Three jaw chuck
Four jaw chuck
Face plates
Steady rest
Follow rest
Halogen Work Light
Built In Cabinet Base With Draws
Chuck Guard
Foot Brake
Italian Type Quick Change Tool Post
Thread chasing dial
Oil gun
Tool Box
Operation manual

Specifications:

Capacity
Swing Over Bed: 360mm
Swing Over Cross Slide: 225mm
Swing Over Gap: 505mm
Centre Height: 181mm
Distance Between Centres: 1000mm
Width Of Bed: 187mm
Height Of Bed: 290mm
Max. Section Of Tool: 16x16mm
Cross Slide Travel: 185mm
Compound Slide Travel: 95mm
Headstock
Spindle Bore: 51mm
Spindle Nose: D1-5
Taper Of Spindle Bore: MT6
Spindle 8 Steps: 70-2000rpm
Feeds And Threads
Leadscrew Diameter: 22mm
Metric Thread: 0.4-7mm
Longitudinal Feed: 0.052-1.392mm/rev
Cross Feed: 0.014-0.380mm/rev
Tailstock
Diameter Of Tailstock Sleeve: 42mm
Morse Taper Of Tailstock Sleeve: MT3
Motor
Power Of Main Motor: 2.2kw
Voltage: 415V 50Hz
Weight And Dimensions
Packing Dimensions (LxWxH): 1880x640x360mm
Net/Gross Weight (approx): 550/650kg
