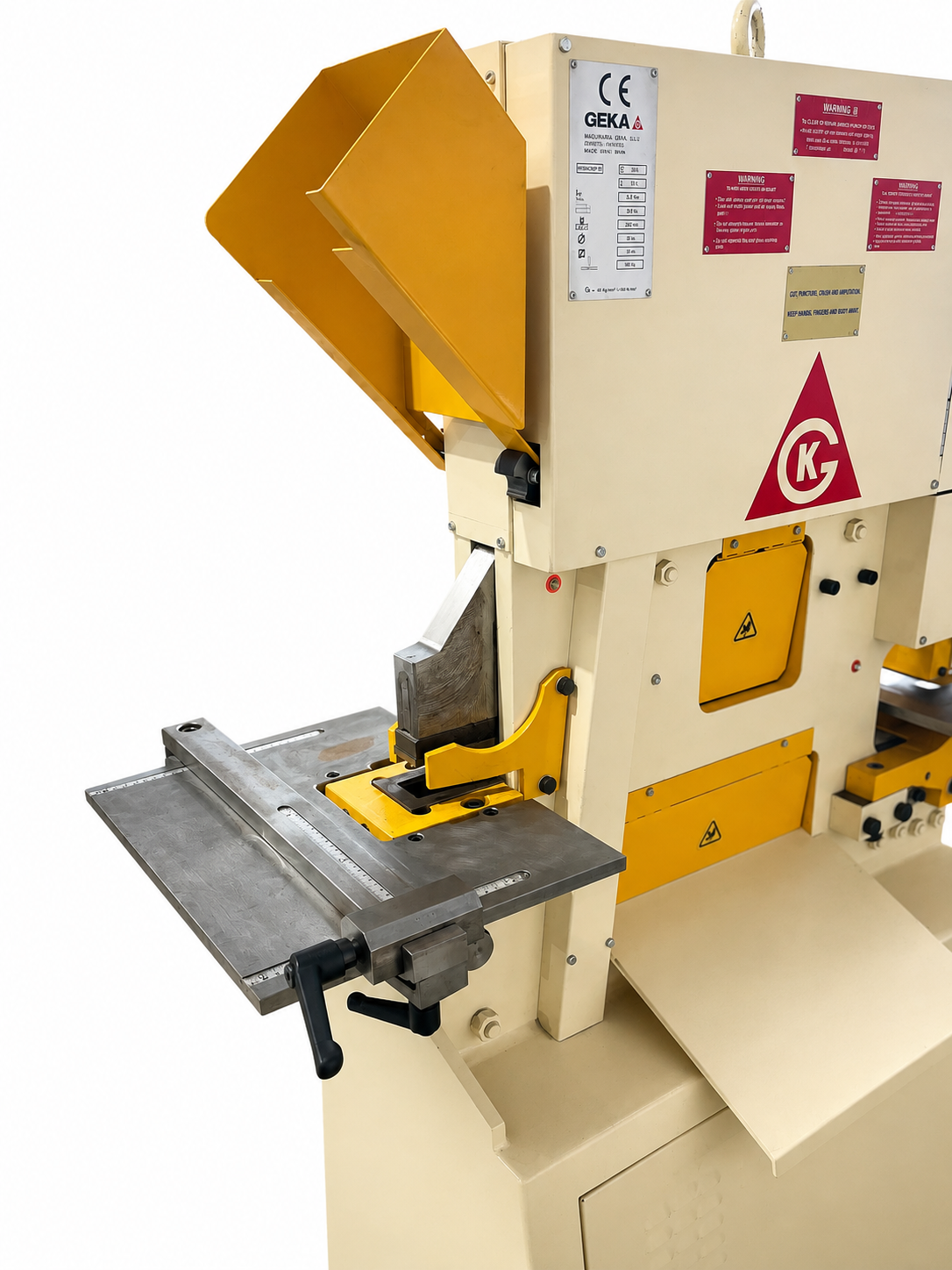

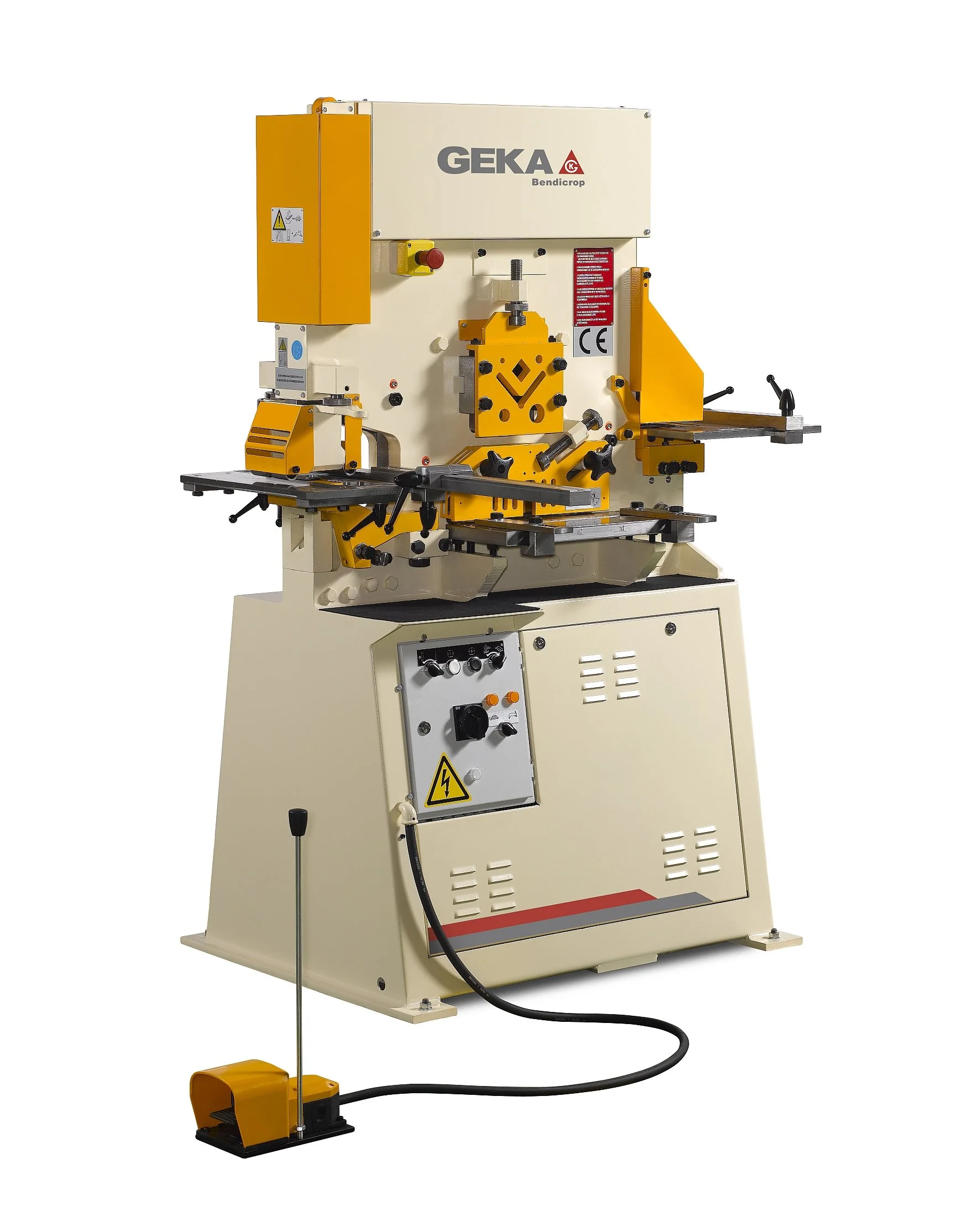

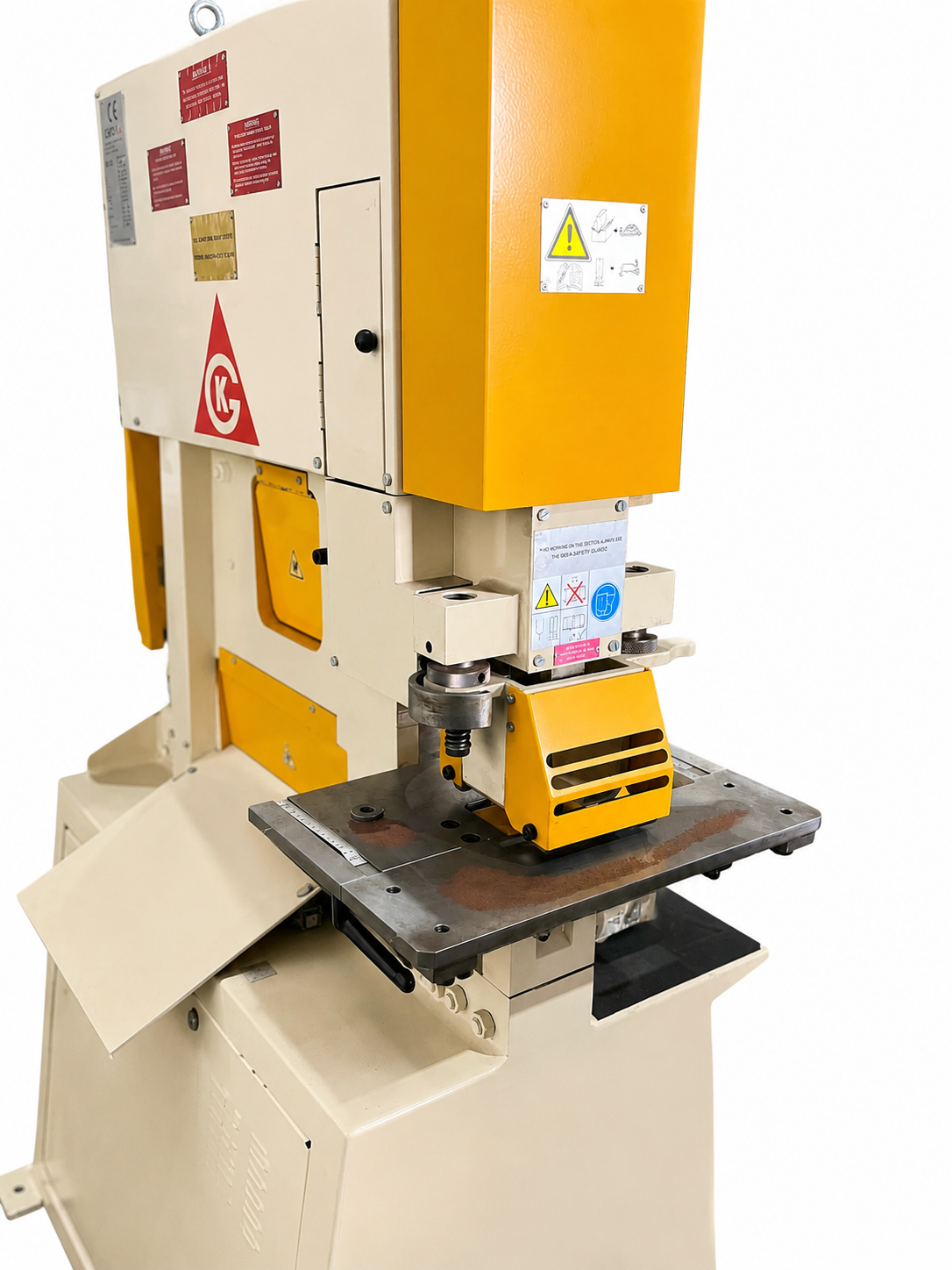

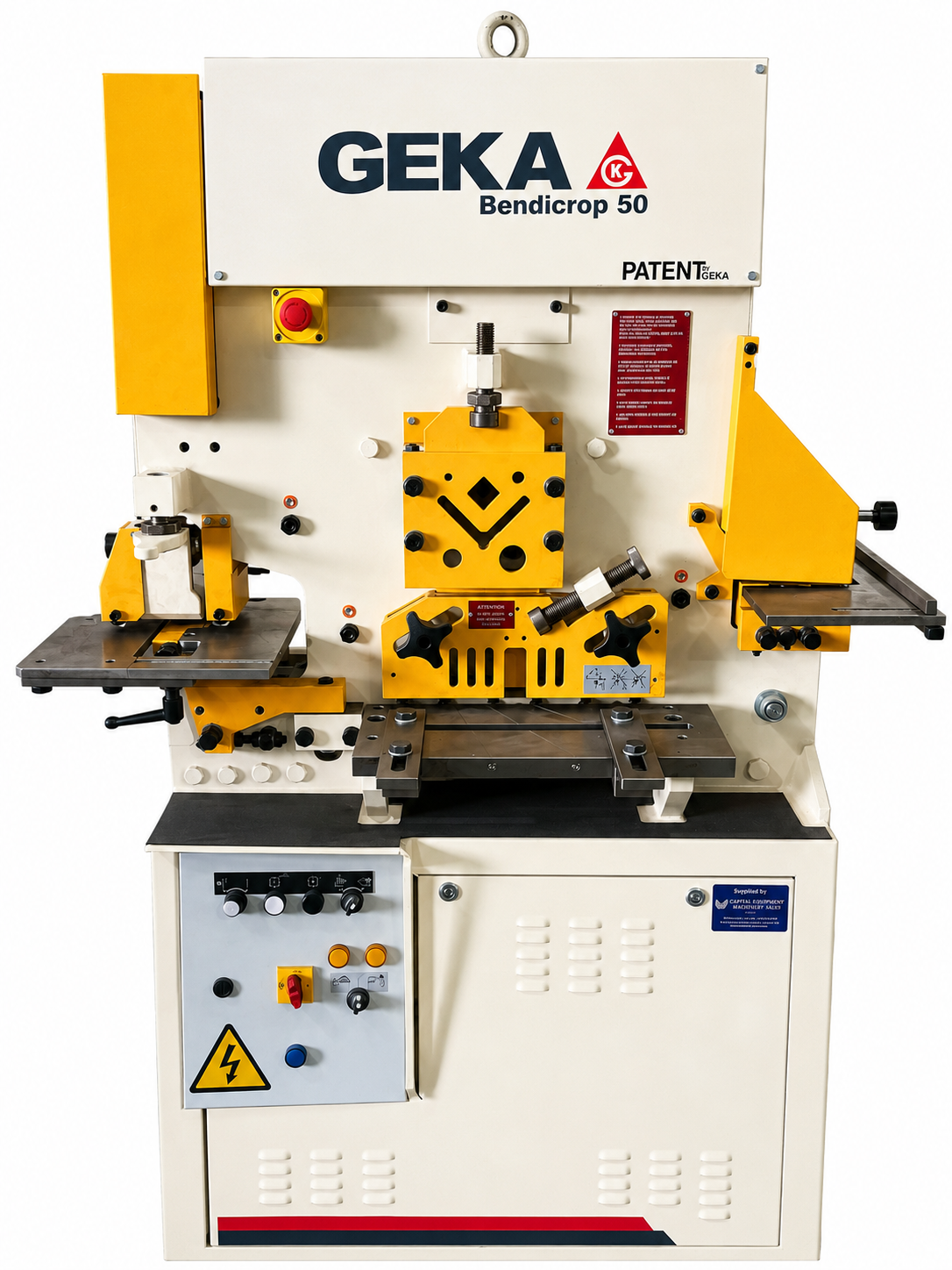

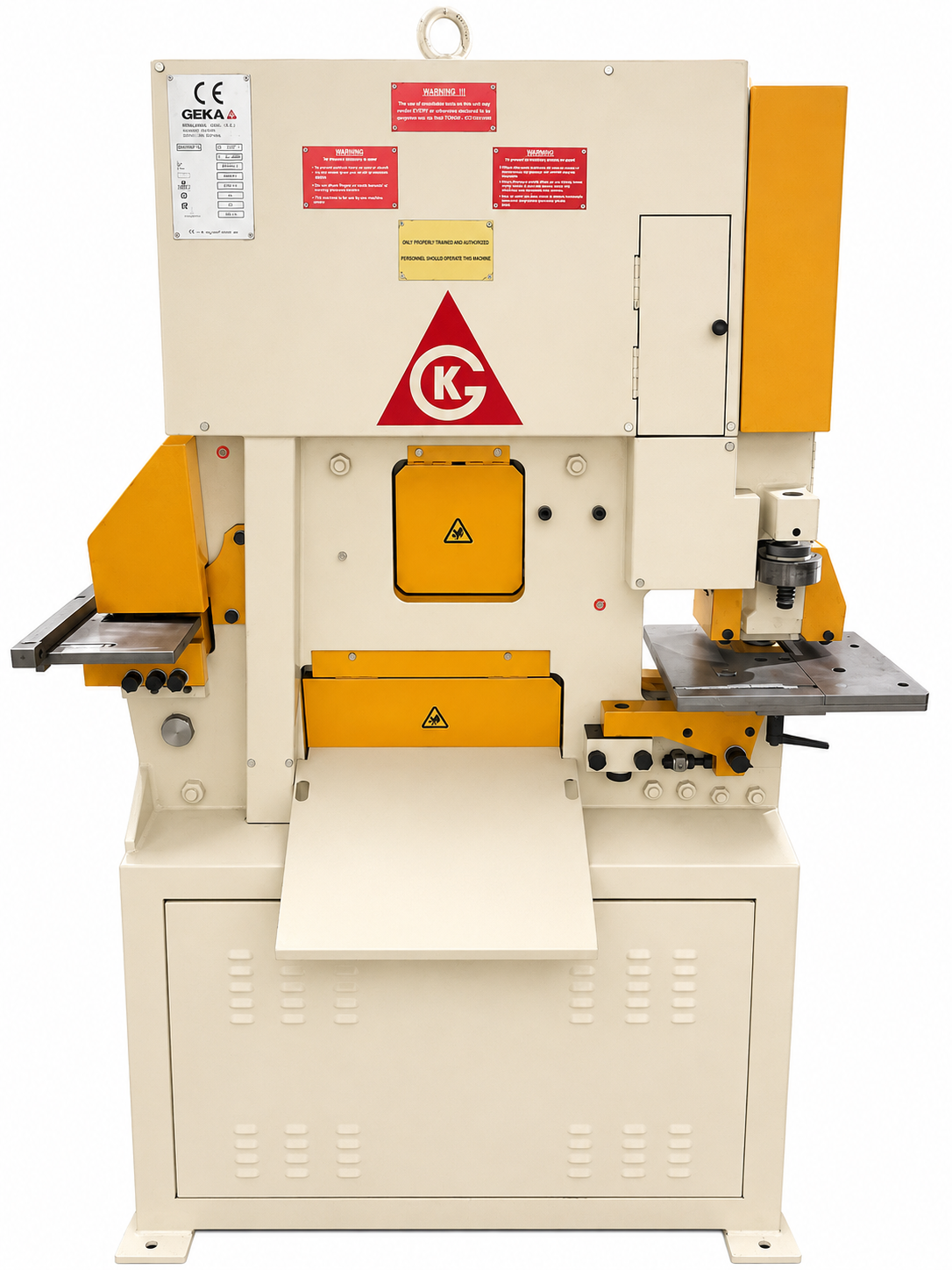

The Geka Bendicrop 50 Punch And Shear is a single cylinder ironworker with five work stations. Thanks to the blade holder’s vertical movement, the Geka Bendicrop 50 Punch And Shear has excellent performance in all its five work stations:
– Punching
– Notching
– Shear for flat bars
– Angle cutting
– Cutting of round and square bars
– Permanent bending station
Features:
– The Bendicrop 50 is fitted with an anti torque system, thus reducing deformation when shearing flat bars.
– Also fitted is a touch and cut length stop which is delivered with two V-shaped bending dies of 40 and 70 mm .
– Permanent bending station complying with CE standards.
– Goose neck die-holder for punching of D and E sections on legs and webs. Quick tool change
– Angle shearing without loss of material. Wide range of openings for B and A.
– Flat bar and plate shearing system with minimum deformation F mitre shearing up to 45º.
– Rectangular notching with table. Also suitable for tube notching, rectangular notching, etc…
– Anti torque system for flat bar shearing without deformation.
Specifications:
Shearing flat bars: 350 x 10 mm, (5º) 350 x 15 mm
Punching: (b) Ø 31 x 12 mm, (a) Ø 28 x 13 mm
Shear of angle section L at 90º: 80 x 80 x 8 mm
Bending: 100 x 10 mm
Notching: 90 x 42 x 10 mm

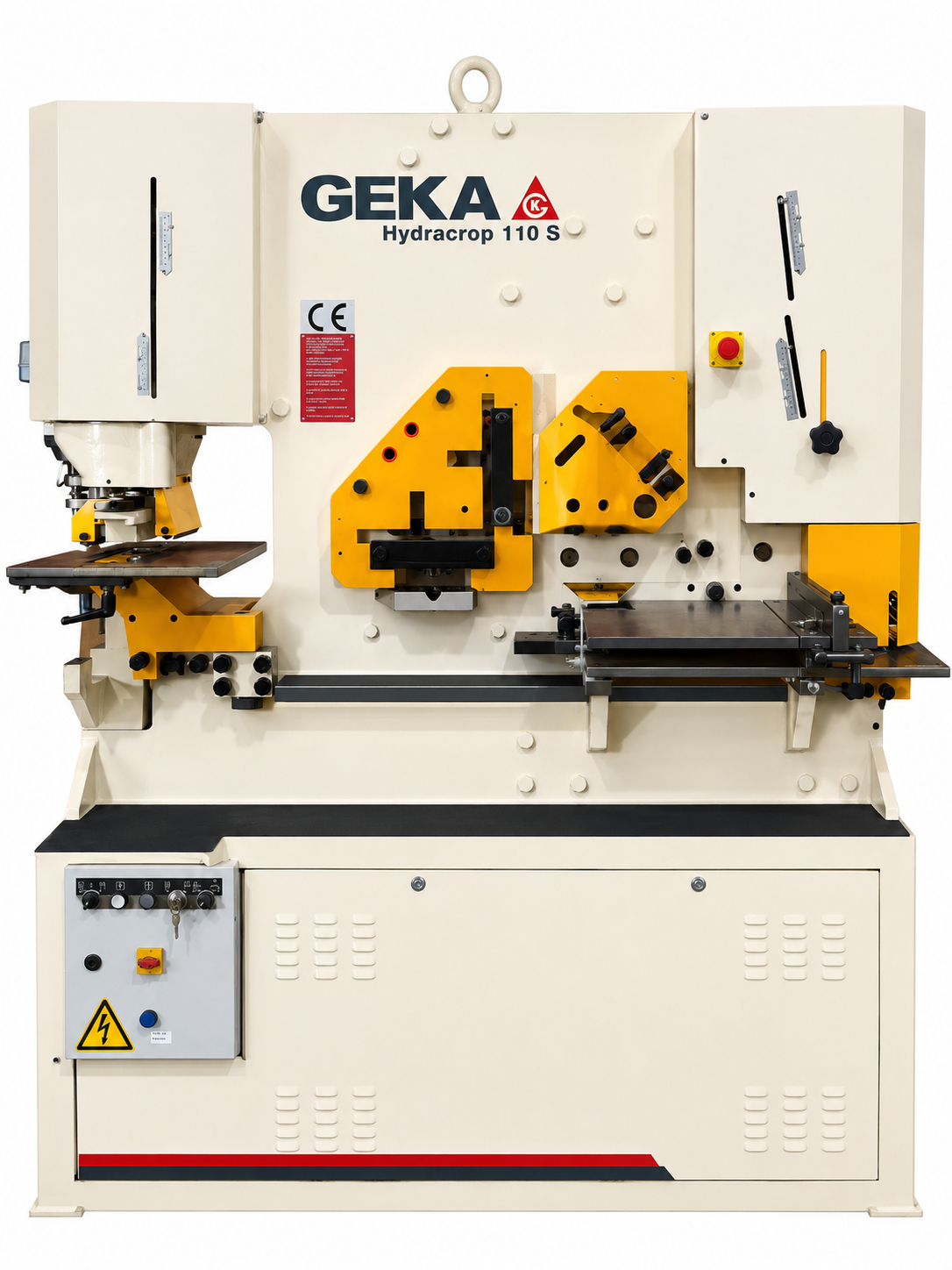

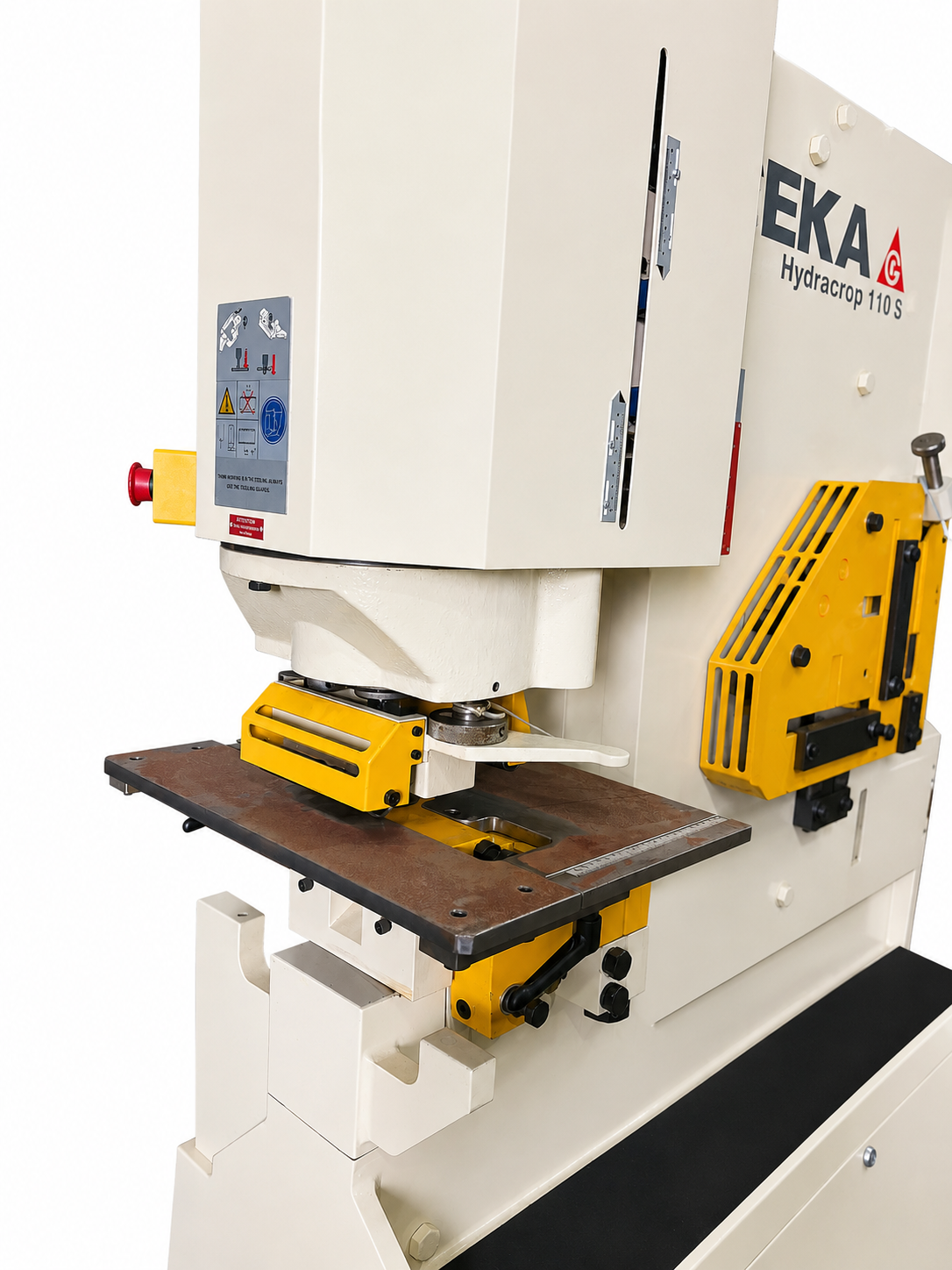

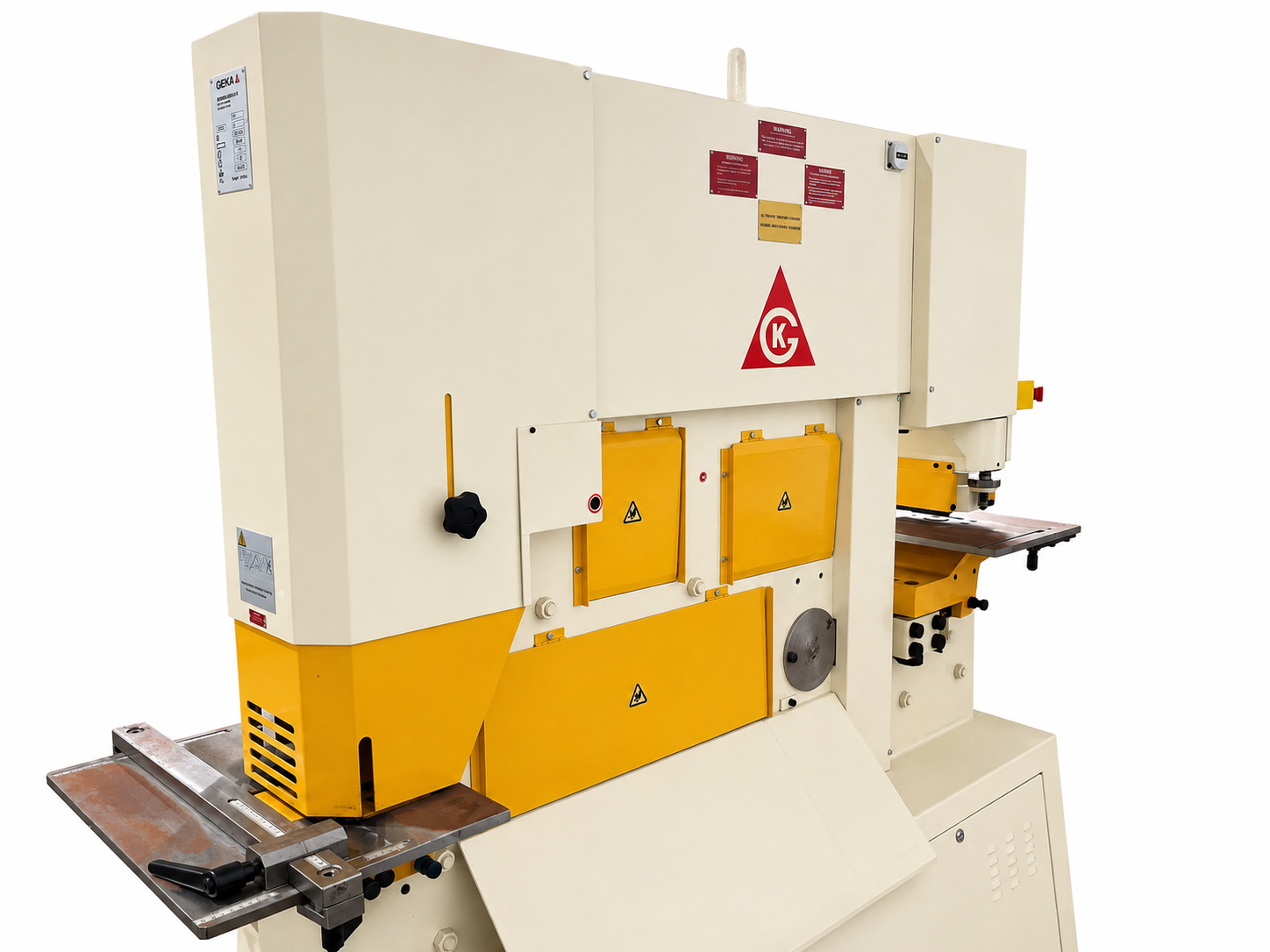

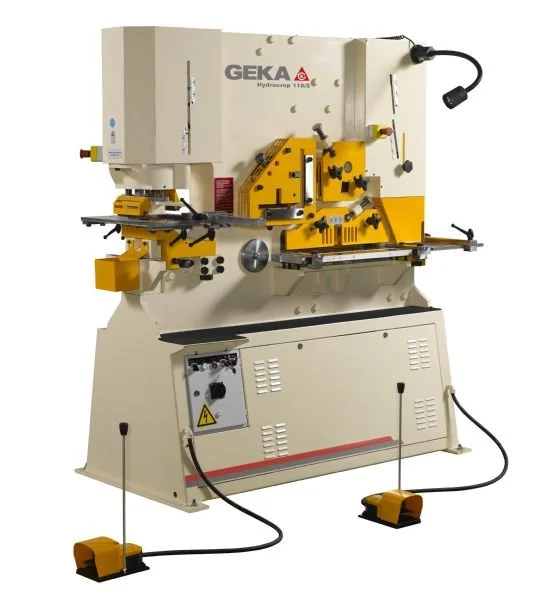

The GEKA Hydracrop is a powerful and versatile two-cylinder hydraulic ironworker designed for busy fabrication and metalworking workshops.
Available in two models—the Hydracrop 80S and Hydracrop 110S—both machines feature five workstations and allow two operators to work simultaneously, helping increase workshop productivity.
Which model is right for you?
A versatile all-rounder suited to general fabrication, maintenance workshops and regular steel-processing work. It offers excellent capacity while maintaining a practical workshop footprint.
– Punching power: 80 tonnes
– Maximum punching capacity: Ø40 × 14 mm or Ø24 × 24 mm
– Angle cutting: 130 × 130 × 13 mm
– Flat-bar shearing: 450 × 15 mm or 300 × 20 mm
– Round-bar cutting: Ø45 mm
– Square-bar cutting: 45 mm
– Rectangular notching: 90 × 52 × 12 mm
– Punching throat: 300 mm
The heavier-duty option for workshops processing larger sections, thicker plate and higher production volumes. Its increased punching and shearing capacity makes it ideal for demanding structural-steel and heavy-fabrication applications.
– Punching power: 110 tonnes
– Maximum punching capacity: Ø40 × 20 mm or Ø28 × 28 mm
– Angle cutting: 152 × 152 × 13 mm
– Flat-bar shearing: 600 × 15 mm or 400 × 20 mm
– Round-bar cutting: Ø50 mm
– Square-bar cutting: 50 mm
– Rectangular notching: 90 × 52 × 13 mm
– Punching throat: 300 mm
Both models are supplied with five workstations:
– Punching
– Angle shearing
– Flat-bar shearing
– Round- and square-bar cutting
– Rectangular notching
– Two independent hydraulic cylinders
– Two workstations can be operated simultaneously
– Quick-change punch system
– Progressive cutting for minimal material distortion
– Flat-bar shearing table with adjustable guides
– Precision punching and notching tables with X and Y measuring stops
– Powerful hydraulic system for fast production
– Reduced-pressure, slow-speed approach for greater operator control
– Wide selection of optional tooling and accessories
– One-metre “Touch & Cut” length stop with fine adjustment
– Work light for improved visibility around cutting areas
– Set of 10 round punches and dies
– Additional specialised tooling available on request
GEKA ironworkers are manufactured in the European Union and are renowned worldwide for their strength, accuracy, durability and versatility.
Not sure which model suits your requirements? Contact Capital Equipment Machinery Sales to discuss your material sizes, workload and preferred tooling.
