The Parkanson DMA series is a range of heavy-duty, fully automatic CNC twin-column bandsaws designed for production cutting and mitring of large beams, pipes, hollow sections and solid material.

Available in cutting widths from 650mm through to 1300mm, the range includes the PK650DMA, PK705DMA, PK800DMA, PK1000DMA and PK1300DMA. Each machine combines automatic material feeding, hydraulic clamping and CNC-controlled saw-head positioning to complete straight and mitre cuts with minimal operator input.

The saw head can automatically position for angles up to 60° left and 45° right, allowing opposite mitres to be completed without turning long or heavy workpieces. This significantly reduces material handling when processing structural beams and fabricated sections.

A 2300mm servo-driven material feeder uses precision steel guides with rack-and-pinion movement to provide fast and accurate material positioning. The long feeding stroke reduces the number of repositioning cycles required when processing long components.

Key features:

• Fully automatic CNC cutting and material feeding
• Automatic CNC double-mitre positioning
• Heavy-duty twin-column construction
• Precision linear guideways for stable saw-head movement
• Models with cutting widths from 650mm to 1300mm
• Suitable for beams, pipe, tube, solid bar and structural sections
• 2300mm servo-driven material-feed stroke
• Precision rack-and-pinion feeder system
• CNC storage for more than 250 cutting programs
• Programmable cutting lengths, quantities and mitre angles
• Variable blade speed from 20 to 90m/min
• Hydraulic material clamping
• Hydraulic blade tensioning
• Automatic blade-guide-arm positioning
• Five-degree inclined blade for smoother entry into beams and hollow sections
• Laser cutting-line indicator
• Work light supplied as standard
• Opposite-angle cutting without turning the material
• Automatic continuous production cycle

MODEL RANGE

PK650DMA

• Round capacity at 90°: 450mm diameter
• Rectangular capacity at 90°: 440 × 650mm
• Capacity at 45° left and right: 440 × 420mm
• Main blade motor: 3.75kW
• Blade size: 5400 × 41 × 1.3mm

PK705DMA

• Round capacity at 90°: 450mm diameter
• Rectangular capacity at 90°: 440 × 700mm
• Capacity at 45° left and right: 440 × 450mm
• Main blade motor: 3.75kW
• Blade size: 5660 × 41 × 1.3mm

PK800DMA

• Round capacity at 90°: 600mm diameter
• Rectangular capacity at 90°: 550 × 800mm
• Capacity at 45° left: 400 × 520mm
• Capacity at 45° right: 550 × 520mm
• Main blade motor: 5.5kW
• Blade size: 6740 × 41 × 1.3mm

PK1000DMA

• Round capacity at 90°: 650mm diameter
• Rectangular capacity at 90°: 650 × 1000mm
• Capacity at 45° left and right: 450 × 650mm
• Main blade motor: 7.5kW
• Blade size: 7750 × 54 × 1.6mm

PK1300DMA

• Round capacity at 90°: 760mm diameter
• Rectangular capacity at 90°: 700 × 1300mm
• Capacity at 45° left and right: 650 × 850mm
• Main blade motor: 10kW
• Blade size: 9300 × 67 × 1.6mm

Standard equipment:

• CNC touchscreen control
• 2300mm servo material-feeding system
• Automatic mitre-angle positioning
• Variable blade-speed drive
• Hydraulic blade-tensioning system
• Hydraulic material vices
• Laser cutting-line indicator
• Automatic blade-guide-arm positioning
• Work light

Optional equipment:

• Three-metre feeder-extension unit
• Mist-lubrication system
• Hydraulic top-clamping system
• Full-height vice jaws
• Manual roller tables
• Powered roller tables
• Custom material-handling systems

The Parkanson DMA range is ideal for structural-steel fabricators, mining-equipment manufacturers, transport and trailer builders, shipyards, construction-steel processors and heavy-engineering workshops.

Capital Equipment Machinery Sales can assist with machine selection, material-handling systems, bandsaw blades, delivery, installation, operator training and ongoing servicing. Parkanson blades, spare parts and accessories are stocked in Perth.

Provide us with your maximum material dimensions, required mitre angles, cut lengths and production quantities, and we can recommend the correct DMA model and configuration.

Contact us for availability and a quotation tailored to your application.

PARKANSON PK650DMS SEMI-AUTOMATIC DOUBLE-MITRE BANDSAW

The Parkanson PK650DMS is a heavy-duty, semi-automatic twin-column bandsaw designed for accurate double-mitre cutting of beams, pipes, tubes, solid bar and structural steel.

Its swivelling saw head cuts angles on either side of 90°, allowing opposite mitres to be completed without turning long or heavy workpieces. This makes the PK650DMS particularly well suited to structural-steel fabrication, where repositioning large beams can be difficult and time-consuming.

The rigid twin-column construction and precision linear guideways provide excellent stability throughout the cutting cycle. A five-degree blade inclination reduces the initial impact on beam flanges and hollow sections, helping produce smoother cuts while reducing stress on the blade.

NC/manual mitre positioning and a digital angle display allow the operator to set cutting angles quickly and accurately. The saw’s pivot point is positioned at the intersection of the blade and fixed vice jaw, helping maintain a consistent cutting reference when the head angle is changed.

Key features:

• Semi-automatic cutting cycle
• Heavy-duty twin-column construction
• Double-mitre cutting without turning the material
• NC/manual mitre positioning
• Digital angle readout
• Large 440 × 650mm rectangular cutting capacity
• 450mm round cutting capacity
• Linear guideways for stable and accurate saw-head movement
• Five-degree inclined blade for improved cutting of beams and sections
• Automatic blade-guide-arm positioning
• Hydraulic full-stroke vice
• Adjustable vice-pressure regulator
• Hydraulic blade tensioning
• Variable blade-speed drive
• Laser cutting-line indicator
• Automatic bow return after completing the cut
• Option to stop the saw bow at the bottom of the cut

Cutting capacities:

• At 90° – round: 450mm diameter
• At 90° – rectangular: 440 × 650mm
• At 45° left: 440 × 420mm
• At 45° right: 440 × 420mm
• At 30° left: 340 × 270mm
• At 30° right: 440 × 270mm

Specifications:

• Blade size: 5400 × 41 × 1.3mm
• Variable blade speed: 20–90m/min
• Main blade motor: 3.75kW
• Hydraulic-system motor: 0.75kW
• Hydraulic vice clamping range: 60–670mm
• Working height: 730mm
• Machine dimensions, L × W × H: 1550 × 2900 × 2200mm
• Approximate machine weight: 2200kg

Standard equipment:

• Variable blade-speed drive
• Hydraulic blade-tensioning system
• Digital mitre-angle display
• Laser cutting-line indicator
• Vice-pressure regulator
• Flood-coolant system
• Bi-metal bandsaw blade
• Work light and operator tools

Optional equipment:

• Mist-lubrication system
• Hydraulic top clamp for bundle cutting
• Full-height vice jaws
• Manual roller tables
• Powered roller tables
• Digital length-stop system
• NC material-feeding system

The Parkanson PK650DMS is ideal for structural-steel fabricators, mining-equipment manufacturers, general engineering workshops and businesses cutting large beams, pipes and fabricated sections.

Capital Equipment Machinery Sales keeps Parkanson bandsaw blades, spare parts and accessories in stock in Perth. We can also assist with delivery, installation, operator training and ongoing servicing.

Contact us with your material sizes and required cutting angles for availability and a quotation tailored to your application.

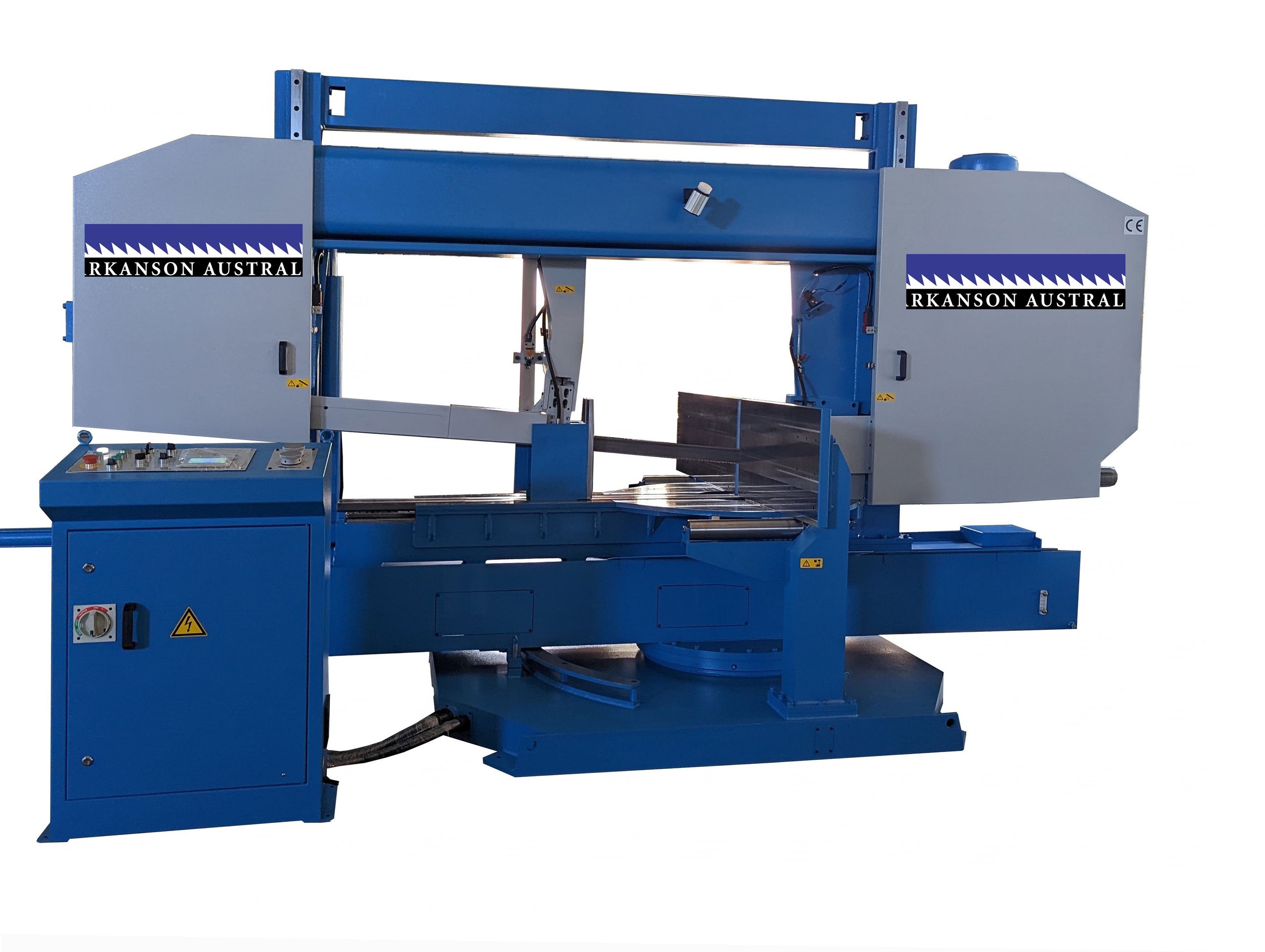

PARKANSON PK1300DMA SEMI-AUTOMATIC DOUBLE-MITRE BANDSAW

The Parkanson PK1300DMA is a heavy-duty, semi-automatic twin-column bandsaw designed for high-volume processing of large structural beams, pipes, tubes and solid material.

With a maximum rectangular cutting capacity of 1,300 x 700mm, the PK1300DMA is suited to large structural-steel fabricators, mining workshops and heavy engineering operations. Its rigid twin-column design, linear guideways and 67mm blade provide the stability required for accurate cutting across large material sections.

Key features:

• Semi-Automatic mitre adjustment
• Heavy-duty twin-column construction
• Variable mitre cutting from 60° left to 45° right
• Automatic blade-guide-arm positioning
• 5° inclined blade reduces initial impact when cutting beams and square sections
• Hydraulic material clamping
• Hydraulic blade tensioning
• Variable-speed blade drive
• Laser cutting-line indicator
• Integrated work light

Cutting capacities:

• 90° round: 760mm
• 90° rectangular: 700 x 1,300mm
• 45° left or right rectangular: 650 x 850mm
• 60° left rectangular: 650 x 550mm

Technical specifications:

• Blade size: 9,300 x 67 x 1.6mm
• Variable blade speed: 20–90m/min
• Main blade motor: 10kW
• Hydraulic motor: 2.2kW
• Vice clamping width: 200–1,320mm
• Working height: 850mm
• Saw unit weight: approximately 7,400kg

Optional equipment includes mist lubrication, hydraulic top clamping, standard roller tables and powered roller tables.

Parts, blades and accessories for the Parkanson bandsaw range are stocked locally in Perth, with installation, servicing and ongoing technical support available through Capital Equipment Machinery Sales.

Contact us to discuss your material sizes, required cut lengths and production needs.

PARKANSON PK500DMA FULLY AUTOMATIC DOUBLE-MITRE BANDSAW RANGE

Available models: PK500DMA, PK5015DMA and PK5030DMA

The Parkanson PK500DMA range consists of fully automatic, double-mitre bandsaws designed for high-productivity cutting of structural steel, RHS, SHS, pipe, channel and solid material.

These machines automatically feed, position, clamp and cut the material to programmed lengths, quantities and angles. Their automatic double-mitre capability allows opposite angles to be cut without turning or flipping long, heavy sections—reducing material handling and improving workshop efficiency.

All three models share the same cutting capacity and core machine platform, with different automatic-feed systems available to suit the required material lengths and production volumes.

Model options:

• PK500DMA – 600mm single-stroke automatic hitch feed
• PK5015DMA – 1,500mm single-stroke servo infeed
• PK5030DMA – 2,500mm single-stroke servo infeed

The longer-feed models reduce the number of indexing cycles required when processing long structural sections, providing faster production and fewer material re-clamping operations.

Key features:

• Fully automatic feed, clamp and cutting cycle
• CNC-controlled automatic double-mitre positioning
• Cuts opposing angles without flipping the material
• Automatic mitre range up to 60° left and 45° right
• Programmable cut lengths, angles and quantities
• Touchscreen control with stored cutting programs
• Full-stroke hydraulic vice
• Automatic shifting vice for angled cuts
• Fixed carriage jaw opens during feeding to accommodate bent or uneven material
• Variable-speed inverter blade drive
• 34mm blade for accurate cutting of structural sections
• Mist lubrication system
• Laser alignment line
• Work light
• Manual and automatic operating modes

Cutting capacities:

• 90° round: 325mm
• 90° rectangular: 320 x 500mm
• 45° left rectangular: 320 x 350mm
• 45° right rectangular: 320 x 350mm
• 60° left rectangular: 320 x 210mm

General specifications:

• Blade size: 4,755 x 34 x 1.1mm
• Variable blade speed: 25–90m/min
• Main motor: 2.25kW
• Working height: 650mm

Optional equipment includes hydraulic blade tensioning, roller tables, powered roller tables, hydraulic top clamping and an automatic swarf conveyor.

Parts, blades and accessories for the Parkanson bandsaw range are stocked locally in Perth, with ongoing service and technical support available through Capital Equipment Machinery Sales.

https://www.youtube.com/watch?v=c9annMtquPE&t=14s

Contact us to discuss which feed configuration best suits your material lengths, production requirements and workshop layout.

The Parkanson Bandsaws are a quality Bandsaw which was originally designed and manufactured in Australia.

With a capacity of 1000 x 650mm the Parkanson PK1000DMS is a Twin Column Machine ideal for larger steel fabricators. All Parkanson Bandsaws are designed to cut to their full capacity. The PK1000DMS is a Semi Automatic Machine with a full stroke hydraulic vice and double mitre 45 degrees in one direction and 60 degrees in the other which is controlled hydraulically by moving a lever on the control panel or by entering the angle required into a key pad and pressing GO.

There is a Laser fitted to the machine to assist in the lining up of the material to be cut.
Once you get to the larger capacity Bandsaws (eg. over 600mm width capacity) most quality manufacturers of Bandsaws become Twin Column so you have more control over the bow as it travels through the material, increasing the blade life and making blade selection easier.
Most parts and accessories for the complete range of Parkanson Bandsaws are kept in stock here in Perth.

FEATURES:
– Cut any angle from 45 degrees forward to 60 degrees backward.
– NC/manual mitre positioning with digital readout.
– Inclination of the saw blade (5 degrees) to reduce the initial blade impact when cutting beams.
– Columns with linear guideway.

The Parkanson Bandsaws are a quality Bandsaw which was originally designed and manufactured in Australia. Most parts and accessories for the complete range of Parkanson Bandsaws are kept in stock here in Perth. The PK800DMS is a heavy duty semi-auto double mitre cutting bandsaw.

FEATURES:
-For cutting any angle from 45 degrees forward to 60 degrees backward.
-NC/Manual mitre positioning with digital readout.
-The rotary centre is at the intersection point of the saw blade and the fixed vice jaw.
-Inclination of the saw blade (5 degrees) to reduce the inital blade impact when cutting beams.
-Columns with linear guideway.
-Automatic positioning of guide arm.
-Return of saw bow to starting cutting position or stop at bottom when material cut.

STANDARD EQUIPMENT:
-Variable blade speed drive
-Hydraulic blade tension
-Laser liner
-Vice pressure regulator

OPTIONAL EQUIPMENT:
-Mist lubrication
-Top clamp
-Full height vice jaws
-Roller table
-Powered roller table
-NC material feed system

With a capacity of 700 x 440mm the Parkanson PK705DMS Metal Cutting Bandsaw is a Twin Column Machine ideal for larger steel fabricators. All Parkanson Bandsaws cut to their full capacity.

The PK705DMS is a semi automatic machine with a full stroke hydraulic vice and double mitre therefore allowing cutting from 45 degrees left to 45 degrees right. The angle is hydraulically controlled by a lever on the control panel. In addition a laser fitted to the machine assists in lining up the material to be cut.
Once you get to larger capacity bandsaws (eg. over 600mm width capacity) most quality manufacturers of bandsaws become twin column, therefore you have more control over the bow as it travels through the material.  Thus increasing blade life and making blade selection easier.
Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

Features:
– Swivel head allows mitre cutting at any angle from 45 degrees left to 45 degrees right.

– Simple blade speed and angle adjustment due to the digital readout.

– Hydraulic adjustment of mitre angle with digital readout to 0.10 of a degree accuracy.

– Extra heavy duty twin column design.

– Full stroke hydraulic vice clamps

– Users can feed material from either side of the machine due to the split vice clamping system.

Specifications:
Cutting Capacity: (90 degrees): Round: 450mm Rect: 440 x 700mm

(45 degrees): 440mm x 450mm

(30 degrees): Left: 440 x 270mm Right: 440 x 290mm

Blade Size: 5660 x 41 x 1.3mm

Blade Speed: 20-90 mpm variable

Main Motor: 3.75kW

Working Height: 730mm

Weight: 2500kg

Packing Dimensions (LxWxH): 1600 x 3000 x 2300mm

The Parkanson PK610DMS metal cutting bandsaw is a twin column machine ideal for larger steel fabricators with a capacity of 610 x 400mm. All Parkanson Bandsaws are designed to cut to their full capacity. The PK610DMS is a Semi Automatic Machine with a full stroke hydraulic vice and double mitre 45 degrees in one direction and 60 degrees in the other. In addition the laser fitted to the machine assists in the lining up of the material to be cut.
Once you get to the larger capacity bandsaws (eg. over 600mm width capacity) most quality manufacturers of bandsaws become Twin Column so you have more control over the bow as it travels through the material, increasing the blade life and making blade selection easier.
Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

Features:
-Cut any angle from 90deg to 30deg left and 90deg to 45deg right. The angle is set manually with a digital readout to 0.10 degree accuracy.

-The bow swivels around the intersection point of the saw blade and the fixed vice jaw.

-Inclination of the saw bow (4deg) to reduce the initial blade impact when cutting large sections.

-The column has linear guide ways for bow stability, longer blade life and accurate cutting.

-The bow returns to the starting position at the end of each cut.

Specifications:
Cutting Capacity (90deg round): 420mm

Cutting Capacity (90deg rect): 400x610mm

Cutting Capacity (45deg left rect): 400x400mm

Cutting Capacity (45deg right rect): 400x400mm

Cutting Capacity (60deg left Rect): 400x225mm

Blade Size: 4870x34x1.1mm

Blade Speed: 25-90mpm variable

Main Motor: 3.75kW

Working Height: 750mm

Weight: 1750kg

Dimensions (LxWxH): 1250x2550x1950mm

The Parkanson PK540SAM metal cutting bandsaw is a mitre cutting bandsaw which is ideal for medium to large steel fabricators. With a capacity of 330 x 535mm. All Parkanson Bandsaws cut to their full capacity.

The PK540SAM is a semi automatic bandsaw with a full stroke hydraulic vice. The bow of the bandsaw swivels to 45 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of the material to be cut.
Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:
– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the angle is accurately set with a graduated scale.

– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.

– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.

– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time

– Heavy duty blade tension with indicator.

– Tungsten carbide roller guides

– Fluid coolant system

Specifications:
90° Cutting Capacity: Round: 350mm, Rect: 330 x 535mm

45° Left Cutting Capacity: 350 x 370mm

30° Left Cutting Capacity: 350 x 320mm

Blade Size: 4755 x 34 x 1.1mm

Blade Speed: 25, 40, 60, 75, 95 m/min

Main Motor: 2.25kW

Working Height: 750mm

Net Weight: Approx 1150kg

Dimensions (LxWxH): 1150 x 2900 x 1550mm

TW300 Double Mitre Bandsaw

Blade Size: 2750x27x0.9

Motor/Power: 1.5kW, 400V, 50Hz, 3ph

Mitre Scale: +45°L, -60°R

Cutting Capacity:
0° : ▬ 310x210 ● 255 ■ 210
-45°R: ▬ 220x200 ● 220 ■ 210

-60°R: ▬ 135x135 ● 135 ■ 135

+45°L: ▬ 170x170 ● 170 ■ 170


Shipping Size: 1720x730x1130mm

The Parkanson PK540SAM metal cutting bandsaw is a mitre cutting bandsaw which is ideal for medium to large steel fabricators. With a capacity of 330 x 535mm. All Parkanson Bandsaws cut to their full capacity.

The PK540SAM is a semi automatic bandsaw with a full stroke hydraulic vice. The bow of the bandsaw swivels to 45 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of the material to be cut.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:

– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the angle is accurately set with a graduated scale.
– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.
– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.
– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time
– Heavy duty blade tension with indicator.
– Tungsten carbide roller guides
– Fluid coolant system

Specifications:

90° Cutting Capacity: Round: 350mm, Rect: 330 x 535mm
45° Left Cutting Capacity: 350 x 370mm
30° Left Cutting Capacity: 350 x 320mm
Blade Size: 4755 x 34 x 1.1mm
Blade Speed: 25, 40, 60, 75, 95 m/min
Main Motor: 2.25kW
Working Height: 750mm
Net Weight: Approx 1150kg
Dimensions (LxWxH): 1150 x 2900 x 1550mm

The Parkanson PK460SAM metal cutting bandsaw is a mitre cutting bandsaw which is ideal for medium to large steel fabricators. With a capacity of 450 x 320mm. All Parkanson Bandsaws cut to their full capacity.

The PK460SAM is a Semi Automatic Machine. Its hydraulic vice gives a 30mm travel. The bow of the bandsaw swivels to 60 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of the material to be cut.

Parts, accessories and blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

FEATURES:

– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the angle is accurately set with a graduated scale.
– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.
– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.
– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time
– Heavy duty blade tension with indicator.

Specifications:

Cutting Capacity (90 degrees): Round: 330mm, Rect: 320 x 450mm
Cutting Capacity (45 degrees): 320 x 300mm
Blade Size: 4115 x 34 x 1.1mm
Blade Speed: 25, 35, 45, 65, 80mpm
Main Motor: 2.25kW
Working Height:620mm
Weight:950kg
Dimensions (LxWxH): 1150 x 2060 x 1320mm

The Parkanson PK410SAM Metal Cutting Bandsaw is a mitre cutting bandsaw which is ideal for small to medium steel fabricators. With a capacity of 410 x 280mm. All Parkanson Bandsaws cut to their full capacity.

The PK410SAM is a Semi Automatic Machine. Its hydraulic vice gives a 30mm travel. The bow of the bandsaw swivels to 45 degrees so the material can remain in a straight line through the workshop. In addition a laser fitted to the bandsaw allows the accurate lining up of material to be cut.

Parts, accessories and bandsaw blades for the complete range of Parkanson Bandsaws are kept in stock in Perth.

Features:

– The unique mitre cutting design allows cuts from 0-45 degrees by swivelling the head of the bandsaw while the cutting angle is accurately set with a graduated scale.
– Hydraulic vice clamping, thus saving the operator time and energy while increasing blade life.
– Vice bed fitted with hardened and ground wear strips which as a result maximises life and accuracy.
– The bandsaw automatically rises to the top position at the completion of a cut, therefore saving time.
– Heavy duty blade tension with indicator.

Specifications:

– Cutting Capacity (90 degrees): Round: 280mm, Rect: 270 x 410mm
– Cutting Capacity (45 degrees): 220 x 250mm
– Blade Size: 3560 x 27 x 0.9mm
– Blade Speed: 35, 55, 75, 90mpm
– Main Motor: 1.5kW
– Working Height: 650mm
– Weight: 750kg
– Dimensions (LxWxH): 980 x 1800 x 1350mm
